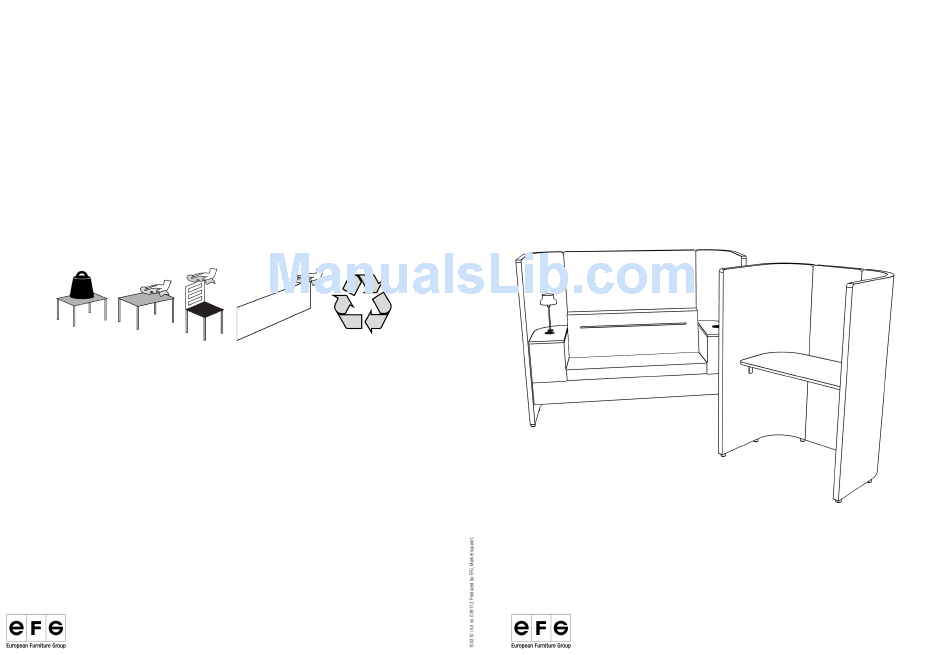

- Page 1 EFG Surround Assembly instructions www.efg.info The product contains following material: Wood, metal, plastic, padding foam and fabric.
- Page 2 EFG Surround - Overview (Way of assembling the pods) All the standard pods with recommended assembly start (Marked with S). Texts shows the right amount of feets and their positioning on seperate screen. Right and left is marked after viewing the screens from inside the pod.
- Page 3 EFG Surround - General assembly E = Assemble the sofa brackets and beams F = Assemble the cords. Beam Detailed instructions for the different stages during the assembly and suggestion of order. Table Top Beam Letters marked after each text shows the matched illustration.
- Page 4 H = Placing the base inside the pod Screw head Bracket Cord outlet Screw Screens Bracket Slot Table top Bracket Step 2: Step 3: Place the base upside down and insert the table top inside Mount M6-screws and screw heads as illustrated to the Beam the cut-out with cord outlet upwards, towards base bottom brackets.
- Page 5 EFG Surround - Overview (Sizes and names of screens) All the standard pods with marked sizes of the straight screens and the names of other screens. Article number are followed by the drawing number (subarticle) of the assembled pods. To access the individual screens: Search in Vault using the drawing number, for example: 629013.
