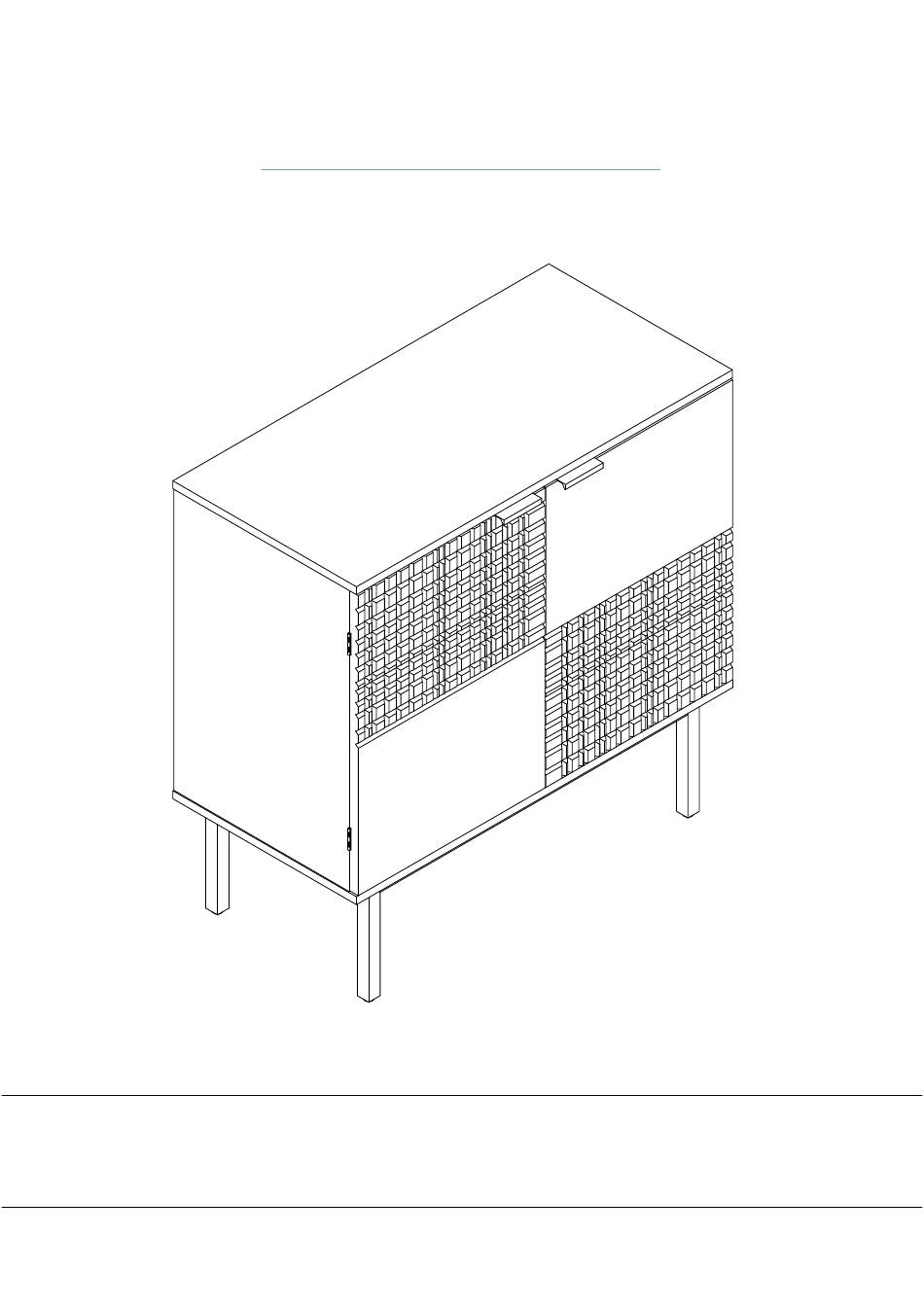

- Page 1 HULALA ITEM NO.CBLS1024 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/32...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soap with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 5: Hardware List
HARDWARE LIST 05/32... -
Page 6: Tool List
TOOL LIST HARDWARE SPARE LIST Ø6*50mm Ø6*12mm Ø3.5*14mm Ø6*35mm Ø6*50mm Ø6*20mm Ø3.5*38mm Ø8*30mm 06/32... - Page 7 ASSEMBLY INSTRUCTIONS STEP-1 Prepare for part A. Align the holes in part A, insert wooden dowel #7 by hand, tighten with screwdriver #19 tighten #3 。 #3x8 Ø8*30mm 07/32...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-2 #5. Make sure the groove is in same side as picture show. 08/32...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-3 Prepare for part C&D. Align the holes in part C&D, insert wooden dowel #7 by hand, tighten with screwdriver #19 tighten #3 。 Ø8*30mm 09/32...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-6 Connect the part E with part C&D align the hole in the part E,insert the bolt #3 in part C&D into part E. insert cam bolt #4 into the corresponding hole of panel E ,and tighten the nuts #4 with a screwdriver #19.
- Page 11 ASSEMBLY INSTRUCTIONS STEP-7 Connect the part A the pre-assembled unit in step 5. Then align the holes in part E,Insert screw #8 and push it down so that it connects to part A&F. Next,and tighten the screw #8 with an Allen key #20.insert the bolt #3 in part A into part C&D.
- Page 12 ASSEMBLY INSTRUCTIONS STEP-8 Use screw 11 to install part H to plate C and part I to plate D.and tighten the screw #11 with an Allen key #20. 12/32...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-9 Use screw 11 to install part G to plate A .and tighten the screw #11 with an Allen key #20. 13/32...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-10 Make sure the groove is in same side as picture show. 14/32...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-11 Manually insert #7 wooden dowels (C&D&J), slide in the part K into the groove in part D,J and J,C. make sure they are also in groove in part A. 15/32...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-12 Use bolt #2 to attach Magnetic device #2 to top panel (B) ， tighten bolts with screwdriver #19. 16/32...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-13 Connect the part B the pre-assembled unit in step 10. Then align the holes in part B,Insert screw #8 and push it down so that it connects to parts C&D&J&K. Next,and tighten the screw #8 with an Allen key #20. 17/32...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-14 Prepare the leg racks. Align the holes of the U part with the holes of the T part, insert the screw #12 , and tighten the screw #12 with the allen key #20 . Ø6*12mm 18/32...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-15 connect the leg frame to the cabinet.Attach the leg frame to the pre-assembled unit in step 12 with a screw #9
 and tighten #10	 with a allen key #9&# 10 Ø6*35mm Ø6*50mm 19/32...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-16 Insert hardware #14 into part (K) as shown, screw in screw #16 using screwdriver #19 and tighten fully. 20/32...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-17 Attention: Before the next step, adjust the feet of the locker to keep it level. 21/32...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-18 1.Connect part (L&M) to part N using screw #17 and tighten it with screwdriver #19. Slide in the part (O) into the groove in part (L&M). make sure they are also in groove in part (N). 22/32...
- Page 24 ASSEMBLY INSTRUCTIONS STEP-17 1.Use screw #16 to attach the hinges #6 to door panel (S&R) ， tighten screws #16 with screwdriver #19. Use bolt #2 to attach Magnetic device to door S&R ， tighten bolts with screwdriver S&R S&R 24/32...
- Page 25 ASSEMBLY INSTRUCTIONS STEP-21 Use screw #16 to attach left door (R) and right door (S) to pre-assemble unit at step 13 ,tighten screw #16 with screwdriver #19 25/32...
- Page 27 ASSEMBLY INSTRUCTIONS STEP-23 1.Use bolt #16 to attach handle #15 to door panel (S&R) ， tighten bolts #16 with screwdriver #19 . 27/32...
- Page 28 ASSEMBLY INSTRUCTIONS STEP-24 1.Insert shelf holder #13 into the corresponding hole of panel (C)&(D) and then attach panel (Q) to it. Shelf holder can be adjusted up or down 28/32...
- Page 29 ASSEMBLY INSTRUCTIONS STEP-25 to attach bracket to the corresponding hole of top panel(A) ， tighten screw with screwdriver #19. 29/32...
- Page 30 ASSEMBLY INSTRUCTIONS STEP-26 ， tighten screw with screwdriver #19. 30/32...
- Page 31 ASSEMBLY INSTRUCTIONS STEP-27 31/32...
-
Page 32: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
