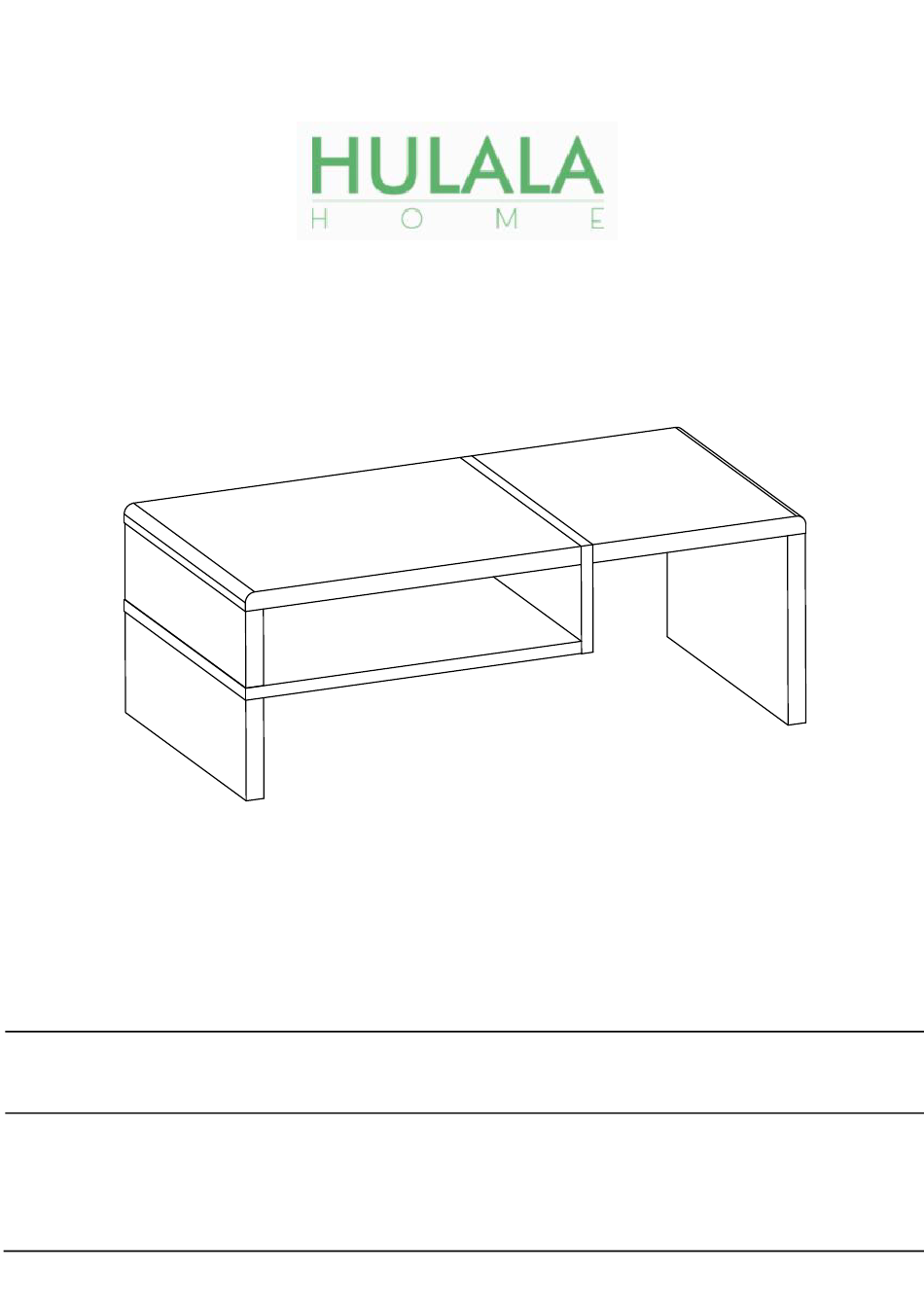

- Page 1 ITEM NO. CTBSD0368 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 1/12...
- Page 2 MAINTAINANCE AND WARNING Keep furniture away from heat. Do not clean furniture with harsh cleansers or polish. Do not use detergents, Solvents, abrasives, spray packs or leather cleaner. Use non-color mild soap with warm water clean spills(Mix 1:10 soap to water) Do not place furniture under direct sunlight, material will possibly fade over time.
- Page 3 PARTS LIST 3/12...
-
Page 4: Explosive View
Explosive View 4/12... - Page 5 HARDWARE LIST SPARE Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment. 5/12...
- Page 6 ASSEMBLY INSTRUCTIONS Under help of adult partner, Place the table top #1 & #2 upside down on clean padded surface, fasten bolt K by hand and insert wood dowel C on bottom edge of top#1 & #2. Insert wood dowel D and fasten bolt E on bottom edge of top#1.
- Page 7 Insert cam bolt on end panel #3 through end holes of back panel #8, fasten cam nut B to secure. Insert cam bolt A & fasten bolt C/K by hand on top panel #2 through end holes of end panel #3 & back panel #8, use philips head screw driver to fasten cam nut B to secure and Paste sticker N to cover the cam nut.Then...
- Page 8 Insert bolt C/K on top panel #1 through end holes of end panel #4 & edge holes of shelf #7. Then insert wood dowel D to bottom edge and dowel C on end holes of shelf #7 and have adult partner to hold other end of shelf #7.
- Page 9 Insert bolt E & wood dowel D on end of top panel #1 through end holes on top #2 (Make sure the bolt E inserted through half-round gasket F)and cam bolt A through end holes of back panel #8. Fasten cam bolt B to secure partition panel #6 and back panel #8 then use sticker N to cover cam bolt B.
- Page 10 Insert bolt K & wood dowel D through end holes of end panel #5, use allen key L to fasten flat washer J,allen nut I to bottom of end panel #5 and fasten to secure. Make sure the bottom edge of end panel #3 &...
- Page 11 STEP 10 Assembly completed 11/12...
-
Page 12: Warranty
WARRANTY We strive to offer high-quality products, and we also try our best to satisfy each and every customer that orders from us with product or service as needed. We provide 30 days warranty starting from the time you receive the item. Each customer must provide a record of their order such as the order number, or item receipt for any items that are out of the warranty period you may also still receive replacement...
