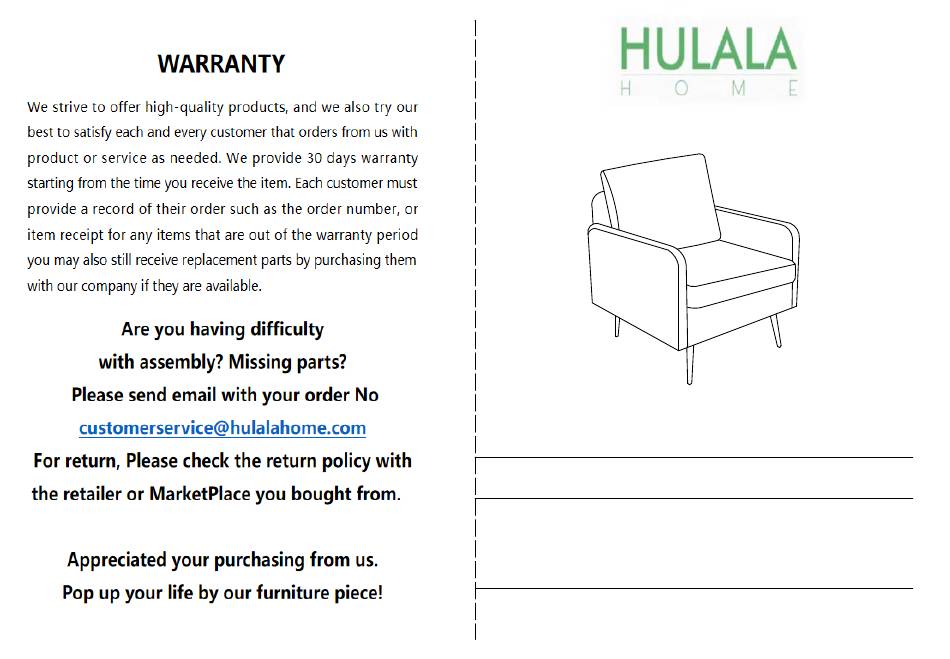

- Page 1 ＩＴＥＭ ＮＯ．ＣＨＨＱ０４１４ NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference.
- Page 2 Left Arm Right Arm Back Back Cushion Seat Frame Weight Limitation Seat Cushion 220LBS Metal Legs...
- Page 3 ASSEMBLY INSTRUCTIONS ② *12 ③ *12 ① *12 M6*20 6*18 M6*70 ∅ ④ ④ *1 ① ③ ① *1 ② *1 ③ *1 M6*20 6*18 M6*70 ∅ Be sure to check all packing material carefully for Step 1:Mark sure armrest A and sect frame D on small parts.which may have come loose inside the both side,use screw ①...
- Page 4 ④ ④ ① ③ ① ③ Step 3:Make sure seat frame D and back C on Step 2:Mark sure armrest B and sect frame D on both.Use screw ① and shim ③ to connect C both side,use screw ① and shim ③ to connect B and D.
- Page 5 ④ ② STEP 5:Place seat cushion F on top of seat frame D. Ｓｔｅｐ ４：Ｕｓｅ ｋｅｙ ② ａｎｄ ｓｃｒｅｗ ④ ｔｏ ｃｏｎｎｅｃｔ Make sure ga p around seat cushion sits evenly. ｍｅｔａｌ ｌｅｇ Ｈ ａｎｄ ｓｅａｔ ｆｒａｍｅ Ｄ．...
- Page 6 Assembly completed STEP 6:Place the back cushion in front of back C and on top of seat cushion F. -10-...
