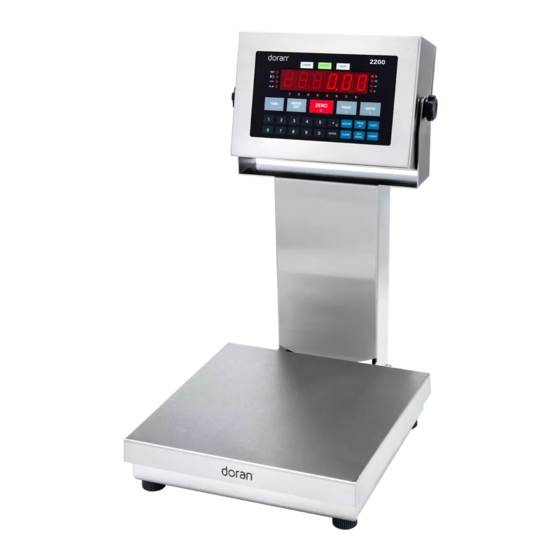

- Page 1 2200 2200B OPERATORS MANUAL DORAN SCALES, INC. 1315 PARAMOUNT PKWY. BATAVIA, IL 60510 1-800-262-6844 FAX: (630) 879-0073 http://www.doranscales.com MANUAL REVISION: 2.0 MAN0255 2/26/2007...
-
Page 3: Table Of Contents
Introduction....................4 Electrical Connections....................5 Scale Operation ................... 6 Fig. 1: Model 2200 Front Panel Layout ..............6 Fig. 2: Model 2200B Front Panel Layout ..............6 Model 2200 and 2200B LED Annunciators ..............7 Power Up and Power Down ..................8 Software Part Number and Revision Level.............. -
Page 4: Introduction
Model 2200 can provide. If any questions arise, please feel free to contact the Doran Scales Technical Support Department at 1-800-262-6844. The 2200 and 2200B both offer many features. A few of these features are listed below: NTEP certification for Class III installations to 10,000d (CoC #06-101) Display Resolution from 250 to 50,000 divisions A six digit, 0.56"... -
Page 5: Electrical Connections
Unpacking Your Scale Before unpacking your Doran scale, please read the instructions in this section. Your new scale is a durable industrial product, but it is also a sensitive weighing instrument. Normal care should be taken when handling and using this product. Improper handling or abuse can damage the scale and result in costly repairs that will not be covered by the warranty. -
Page 6: Scale Operation
Scale Operation Fig. 1: Model 2200 Front Panel Layout Fig. 2: Model 2200B Front Panel Layout... -
Page 7: Model 2200 And 2200B Led Annunciators
Model 2200 and 2200B LED Annunciators The Model 2200 (Fig. 1) uses a set of sixteen LED annunciators, in addition to the six digit LED weight display, to provide information about the status of the scale. Motion is indicated by the MOT annunciator. Motion is an instability in the platform weight. -
Page 8: Power Up And Power Down
Power Up and Power Down Connect the indicator to a compatible power source and the indicator will turn on. For scales with the battery option: To turn on the scale, press and release the ZERO button. To turn off manually, press and hold the ZERO push button until the display shows "rEL Pb."... -
Page 9: Push Button Tare
Press and hold TARE push button for 3 seconds to recall tare weight. The display will momentarily show tArE, then flash the tare weight. Using Doran’s optional barcode scanner, scan the desired barcode. The display will read SAVEd to indicate the scanned tare weight is saved. The display will flash the new tare weight scanned from the barcode. -
Page 10: Toggle Gross And Net Modes
Toggle Gross and Net Modes The GROSS / NET pushbutton is use to switch the display mode between the gross weight and net weight. If a tare value has been entered, then the net value is the gross weight less the tare weight. The net mode is indicated on the display with the NET annunciator. -
Page 11: Password Protected Setpoint And Preact Values
The annunciators below the main display indicate which setpoint is currently displayed. Using Doran’s optional barcode scanner, scan the desired barcode. The display will read SAVEd to indicate the scanned setpoint weight is saved. The display will flash the new setpoint weight scanned from the barcode. -
Page 12: Display Preact Values
UNITS and PRINT to scroll through the eight available preacts. The annunciators below the main display indicate the current preact. Using Doran’s optional barcode scanner, scan the desired barcode. The display will read SAVEd to indicate the scanned preact weight is saved. The display will flash the new preact weight scanned from the barcode. -
Page 13: Clear Accumulator And Counter
Clear Accumulator and Counter Press the ACCUM button to enter the accumulator and counter recall mode. The display will show Accunn followed by the accumulated weight in the units currently selected in the weigh mode. Then Countr will be displayed followed by the counter value. Press CLEAR to clear the accumulator and counter values. -
Page 14: Keypad Entry Of Id Values
------ to represent the barcode value. To exit the ID edit mode press ID. 2. When the scale is in the normal weighing operation. Use the Doran’s optional barcode scanner to scan in a bar code value that begins with a numeric character. -
Page 15: Battery Operation
Battery Operation Indicators with the battery option installed are equipped with an internal rechargeable sealed lead-acid battery and charging circuit. The scale is designed to run continuously for 50 hours (with one 350 ohm load cell) on a fully charged battery. To significantly extend this battery life, be sure the Unit On Timer parameter is enabled, which will power down the scale automatically after a period of non-use.
