Summary of Contents for Whynter ICM-490SS

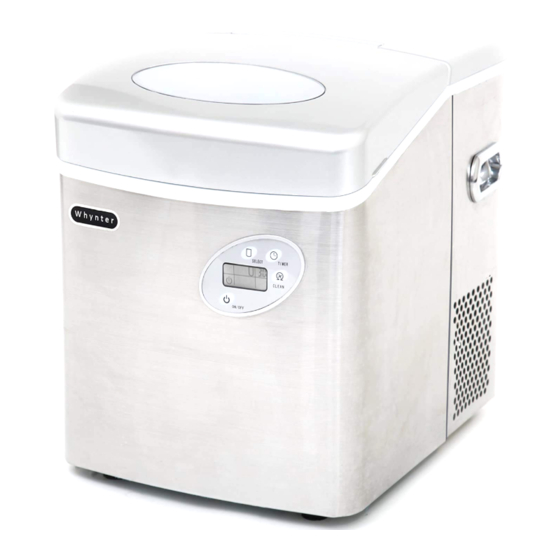

- Page 1 WHYNTER PORTABLE ICE MAKER Model # : ICM-490SS INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
-
Page 2: Disposal Information
Thank you for choosing the Whynter Portable Ice Maker. Please follow the in- structions provided in this user guide to obtain the very best performance from your Ice Maker. We trust that your Whynter Portable Ice Maker will provide the performance and reliability that we stand for. - Page 3 PARTS AND CONTROL PANEL LCD DISPLAY OVERVIEW INSTALLATION AND OPERATING INSTRUCTIONS 7 – 8 CARE AND MAINTENANCE TROUBLESHOOTING WARRANTY INFORMATION TECHNICAL SPECIFICATIONS MODEL : ICM-490SS Protection Type: Climate Type: SN/N/ST Power Consumption: 170W Power Supply: 115V/ 60Hz Water Reservoir Capacity: 5.0L...
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WARNING WHEN USING YOUR PORTABLE ICE MAKER, FOLLOW THESE BASIC PRECAUTIONS: Read all instructions before using the appliance Never clean appliance parts with flammable fluids. The fumes can create a fire hazard. Do not use an exces- sively wet cloth, industrial solvents, and oil-based products to clean this appliance ... -
Page 5: Parts And Control Panel
PARTS AND CONTROL PANEL Ice Maker Cover Ice Basket (Removable) Handle Air Vent Drain Plug Freezing Bars Ice Shovel Ice Full Sensor Ice Scoop Water Reservoir Control Panel Size Selector ON/OFF Button Timer Button Clean Button... -
Page 6: Lcd Display Overview
LCD DISPLAY OVERVIEW 1. ON/OFF INDICATOR This indicator is displayed all the time to show that the unit is plugged in and receiving power. The unit is operation when the ICE SIZE INDICATOR (7.) is on. 2. ICE FULL INDICATOR When the ice basket is full, this indicator will be displayed. -
Page 7: Installation Of Your Ice Maker
INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION OF YOUR ICE MAKER Locate the ice maker away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consump- tion. - Page 8 INSTALLATION AND OPERATING INSTRUCTIONS NOTE: This ice maker produces 12 ice cubes every cycle of 10 to 15 minutes approximately depending on the size of cube is selected. When the ambient temperature is lower than 59ºF, the small ice cube size is recommended to avoid ice cubes clumping together. For best performance, water temperature should be between 55ºF and 85ºF and ambient temperature between 65ºF and 77ºF.
-
Page 9: Care And Maintenance
INTERIOR The Whynter HZB-22SA ice maker is equipped with a Self-Clean program that ensures your ice is clean and fresh by removing scales and impurities. This program works the same as the ice making process, only without the freezing. -
Page 10: Troubleshooting
Warning indicator flashes for Ice Full sensor is faulty Contact Whynter Service Department 20 seconds The ice made is too large The water temperature in the Stop the machine and reset the ice... -
Page 11: One-Year Limited Warranty
Whynter’s service department), along with an explanation of the claim to Whynter LLC. A return authorization number issued by Whynter is required for all warranty claims and returns. Please package the Portable Ice Maker carefully in its original packaging material to avoid damage in transit.
