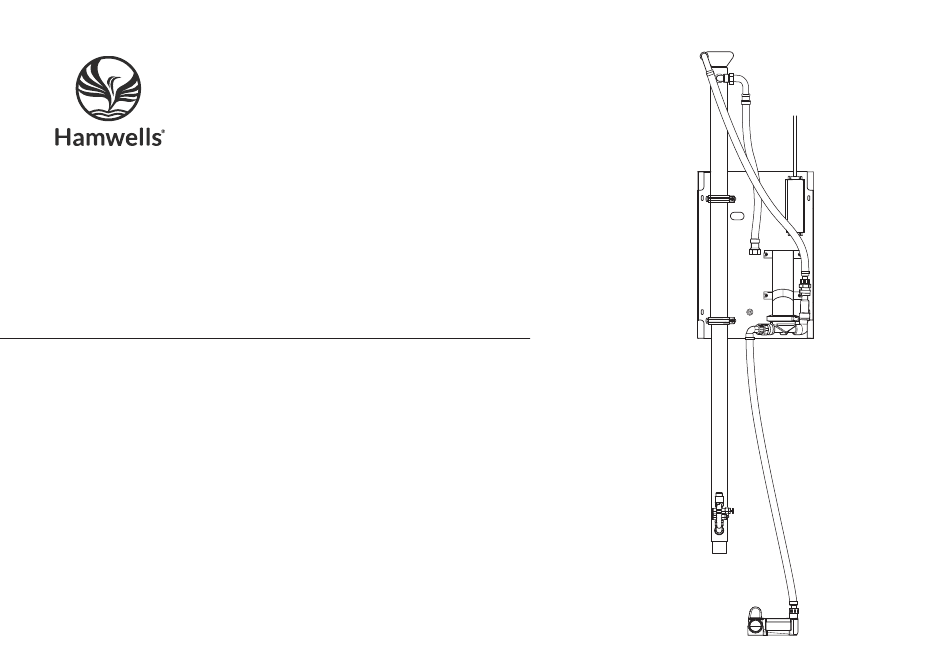

- Page 1 Blue Installation manual Blue 12, 16, 21 & HE 2024 V5.3...
-
Page 2: Table Of Contents
Warranty document is strictly prohibited except with the written permission of Dimensions Hamwells Nederland B.V. The contents of this document are subject to change without notice. The pictured product is for illustration purposes and Installation Blue may differ in color or model from the delivered product. Information in this... -
Page 3: Safety
Safety Warranty This installation manual refers to the Hamwells Blue 12, 16, 21 and HE. The Blue has a standard 5 year warranty on all components* and is extendable We strongly recommend that you read this manual carefully before up to 8 years. This warranty is void if the product is damaged due to incorrect installation. -
Page 4: Dimensions
Dimensions Blue * Dimensions WWHR pipes Power supply (mains): 100-240 VAC Max. power consumption: 42W * WWHR pipe length varies per Blue model. 15 cm 38 cm 35 cm Side view Back view Blue 12 Blue 16 Blue 21 Blue HE Front view Installation manual | Blue 12, 16, 21 &... -
Page 5: Installation Blue
Installation Blue Parts Blue 1x Blue pre-assembled: – Frame – WWHR pipe (12, 16, 21, HE) – Pump Installation instructions – Power supply with cable without plug This chapter explains how to install the Blue. Installation steps – Hose heat recovery pipe to pump specific to the Blue HE are indicated additionally. -
Page 6: Mount The Installation Frame Against The Wall
Mount the installation frame against the wall Connect the cold water supply Level the installation frame and mark the holes. Then drill the 4 holes and Connect your cold water to the valve (1/2”) on the WWHR pipe. mount the frame with screws. Mount the frame completely level. -
Page 7: Connect The Drain Set To The Wwhr Pipe(S)
7. Place the sensor unit level under the frame and Connect the drain set to the WWHR pipe(s) mount a siphon (40 mm) on it We do not recommend pouring concrete around the sensor unit. Make sure the overflow is lower than the shower drain. Overflow Shower drain Finished floor Blue HE Sensor unit... -
Page 8: Connect The Pvc Hose To The Sensor Unit
Connect the PVC hose to the sensor unit 12. Check if the Blue is working properly Fill the siphon and drain completely (approx. 2 liters of water). Make sure that the water hose has a gasket. When you turn on the Blue for the first time or when the power is reconnected or switched on, you will hear the sound of the pump pumping out the water.
