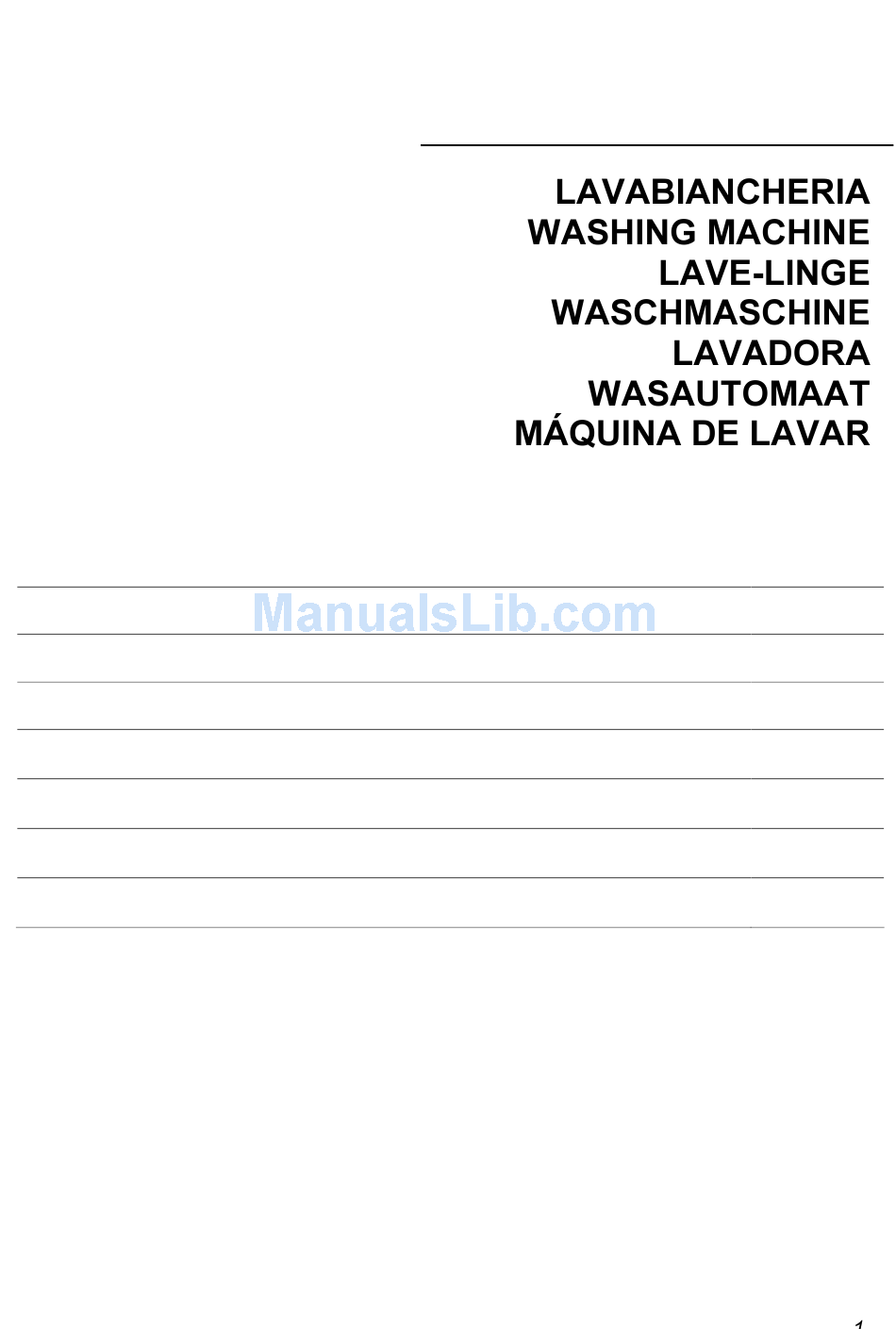

- Page 1 LIBRETTO ISTRUZIONI INSTRUCTIONS MANUAL MANUEL D’INSTRUCTIONS GEBRAUCHSANWEISUNG MANUAL DE INSTRUCCIONES GEBRUIKSAANWIJZING MANUAL DE INSTRUÇÕES...
- Page 2 This ensures your laundry is washed and treated with utmost care. Washing times have also been reduced. Pre-washing is only recommended for very dirty laundry. Please read the operating instructions with care in order to take full advantage of all the features offered by this washing machine.
- Page 3 The appliance must be provided with an earth connection in accordance with the electrical safety regu- lations in force. If the appliance is not connected to the electrical power supply by means of a plug, it is necessary to install an isolation switch with a contact opening gap of at least 3 mm.
- Page 4 Always switch off the appliance after use to avoid wasting electricity. Leave the door ajar between one wash and the next in order to keep the gasket in good condition. If the machine is left inactive for a long period: disconnect the machine from the electricity and water supplies and leave the door ajar to prevent bad smells from forming.
- Page 5 To prevent water from entering the machine or people from touching live components with their fingers, Do not turn the machine upside down and do not place it on its side. Keep all the components used to block the drum assembly as they will be needed if you decide to move the appliance in future.
- Page 6 If the water pipe is new or has not been used for a long time, let a certain amount of water run before attach- ing the inlet hose. This stops any deposits of sand and other impurities from clogging the filters used by the machine to protect the water inlet valves.
- Page 7 Do not bend or obstruct the hose as this will reduce the flow of water. Any extensions to the drain hose must not exceed 1 metre, they must have the same internal diameter and must not be obstructed in any way.
- Page 8 All the commands and controls of the appliance are assembled together on the front panel. button knob shown on display LED shown on display LED Display button buttons LED’s button shown on display LED button...
- Page 9 - END To find out which of the first 3 pieces of information are shown on the display, check which of the LED's, C, D, or N (the latter for models featuring the delayed start option) is lit. Press the button repeatedly to select the required spin speed.
- Page 10 This button reduces the overall duration of the washing cycle. This option is used to wash small loads or less dirty washing in less time. The bleach stage is skipped when the Quick Wash button is pressed (for models with bleach function).
- Page 11 The default value is 0 hours 0 minutes and each time the but- ton is pressed it increases by 60’ up to 12h and by 120’ for the following 12 hours, up to 24 hours.
- Page 12 Open the door by pressing the “Open door” button on the front panel and pulling it open. If the washing programme is interrupted, you will have to wait from 3 to 15 minutes, depending on the tem- perature of the water, before the door opens.
- Page 13 “Pro- grammes chart” supplied with this manual. 4. Close the door by pressing it against the body of the appliance until you hear a click. Make sure no garments have got caught between the door and the rubber gasket.
- Page 14 2. Pour the total quantity of detergent indicated on the packs into compartment “2” of the detergent tray. 1. Choose a programme with prewash. 2. Add ¼ of the recommended quantity of detergent into compartment “1” of the detergent tray and ¾ of the deter- gent into compartment “2”.
- Page 15 ), the relative LED lights up and the display visualises the maximum speed envisaged for the selected washing programme. Press the button repeatedly. Speed decreases by 100 rpm every time until the spin cycle reaches 0 rpm and is disabled.
- Page 16 Press the “Start-Pause” button. The LED located above the Start-Pause button remains lit throughout the cy- cle. After starting, the display shows the time remaining until the end of the programme. The LED remains on throughout the cycle. Example If delayed starting has been set (only for models featuring this option), the display visualises the time remain- ing before the cycle starts.
- Page 17 If the no-spin option was selected during the initial spin speed set up phase and the machine stops with the tub full (spin speed 0), STOP appears on the display at the end of the washing programme, alternating with 0000 (spin speed 0) and the spin LED lights up.
- Page 18 Periodically check that no clips, buttons, nails or needles have got caught in the folds of the door gasket. Only clean the drain pump if it is obstructed by buttons, hairpins and the like and the water cannot drain. In this case, proceed as follows.
- Page 19 The slots in the buttons must be horizontal. MODEL B – Insert the lower part of the cover first and then push it towards the base plate until it clicks into place. Keep the detergent tray free from scale.
- Page 20 This product complies with current safety regulations governing electrical equipment. For safety reasons, all tech- nical inspections or repairs must be performed by qualified technicians in order to prevent hazardous situations for users. If the machine does not work, before calling the Service Centre and spending money unnecessarily, check that the operations indicated in this troubleshooting table have been performed.
- Page 21 No water for washing. See point 2 on the troubleshooting table. The water does not drain. See point 4 on the troubleshooting table. For all other error codes, contact the nearest Assistance Centre after disconnecting the power supply and closing the water tap.
- Page 23 The symbol of crossed-out wheeled bin on the equipment or its confection indicates that the product at the end of its life utility must be collected separately from the other wastes. Therefore the user will have to confer the equipment that has reached the end of its life, to the suitable points of collection differentiated of the electronic and electrical wastes, or to give back it to the retailer at the moment of the purchase of one new equipment of equivalent type, in reason of one to one.
- Page 24 El símbolo del contenedor tachado presente sobre el aparato o el envase indica que, al final de su vida útil, el producto se debe recoger separadamente de los otros residuos. Por lo tanto el usuario deberá...
