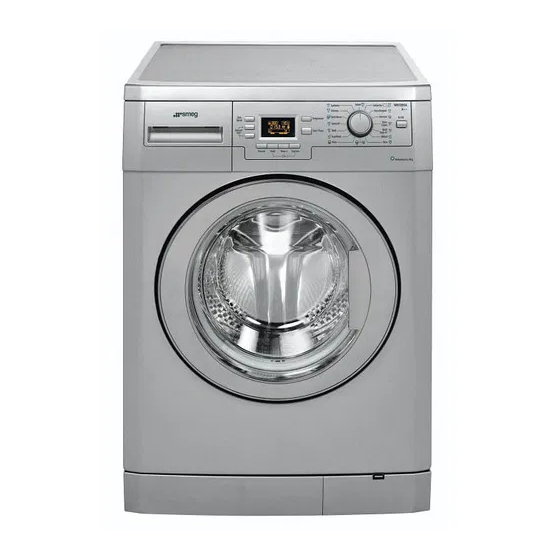

- Page 1 WM148WSA WM128SSA Washing Machine User’s Manual Lavatrice Manuale utente Document Number 2820523659_EN / 25-09-13.(13:37)
-
Page 2: Important Instructions For Safety And Environment
1 Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack expe- rience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. -
Page 3: Intended Use
1.2 Intended use • This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • The product must only be used for washing and rinsing of laundry that are marked accordingly. -
Page 4: Compliance With Weee Directive
1.6 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. -
Page 5: Installation
2 Installation 1. Loosen all the bolts with a suitable spanner until they rotate freely (C) . Refer to the nearest Authorised Service Agent for installation 2. Remove transportation safety bolts by turning them of the product. To make the product ready for use, review gently. -
Page 6: Connecting To The Drain
3. Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leaks occur, turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent water leakages and damages caused by them, 1. - Page 7 3 Preparation 3.4 Initial use Before starting to use the product, make sure that all 3.1 Sorting the laundry preparations are made in accordance with the instructions in • Sort laundry according to type of fabric, colour, and sections “Important safety instructions” and “Installation”. degree of soiling and allowable water temperature.
-
Page 8: Using Detergent And Softener
The loading door is locked while a programme is running. Do not use soap powder. The door can only be opened a while after the programme warning comes to an end. Adjusting detergent amount In case of misplacing the laundry, noise and warning The amount of washing detergent to be used depends vibration problems may occur in the machine. -
Page 9: Tips For Efficient Washing
from the detergent compartment during first rinsing step. Tablet detergents may leave residues in the detergent • Do not use bleaching agent and detergent by mixing compartment. If you encounter such a case, place the them. tablet detergent between the laundry, close to the lower part of the drum in future washings. -
Page 10: Operating The Product
4 Operating the product 4.1 Control panel 1 - Spin Speed Adjustment button 5 - On / Off button 2 - Display 6 - Delayed Start buttons (+ / -) 3 - Temperature Adjustment button 7 - Auxiliary Function buttons 4 - Programme Selection knob 8 - Start / Pause / Cancel button 4.2 Display symbols... -
Page 11: Main Programmes
4.5 Main programmes • Dark Colours Use this programme to wash your dark coloured laundry Depending on the type of fabric, use the following main or the laundry that you do not want it get faded. Washing programmes. is performed with little mechanic action and at low •... -
Page 12: Temperature Selection
4.8 Temperature selection Whenever a new programme is selected, the maximum temperature for the selected programme appears on the temperature indicator. To decrease the temperature, press the Temperature Adjustment button. Temperature decreases with increments of 10° and finally, “-” symbol indicating the cold wash option appears on the display. -
Page 13: Programme And Consumption Table
4.10 Programme and consumption table Auxiliary functions Selectable Programme (°C) temperature range °C Cotton 2.40 1600 • • • • • • 90-Cold Cotton 1.70 1600 • • • • • • 90-Cold Cotton 0.95 1600 • • • • •... - Page 14 ** “Cotton Economic 40°C and Cotton Economic 60°C are standard cycles.” These cycles are known as ‘40°C cotton standard cycle’ and ‘60°C cotton standard cycle’ and indicated with the symbols on the panel. The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.
-
Page 15: Auxiliary Function Selection
4.11 Auxiliary function selection If you want to spin the laundry held in water, adjust the Spin Speed and press Start / Pause / Cancel button. Select the desired auxiliary functions before starting The programme resumes. Water is drained, laundry is spun the programme. - Page 16 symbol disappears. Pause symbol and Delayed Start symbol Changing the speed and temperature settings for flashes. Decrease the delayed start time by pressing the auxiliary functions Delayed Start - button. Programme duration appears after Depending on the step the programme has reached, you 30 minutes.
-
Page 17: Maintenance And Cleaning
4.19 Machine is in Rinse Hold mode 3. Insert the drawer back into its place after cleaning and make sure that it is seated well. Spin symbol flashes and Pause symbol illuminates when the If your detergent drawer is the one indicated in the following machine is in Rinse Hold mode. -
Page 18: Cleaning The Body And Control Panel
In order to clean the dirty filter and discharge the water: Foreign metal substances will cause rust stains in the 1. Unplug the machine to cut off the supply power. drum. Clean the stains on the drum surface by using cleaning agents for stainless steel. - Page 19 Discharging the water when the product has an emergency draining hose: a. Pull the emergency draining hose out from its seat b. Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose.
-
Page 20: Technical Specifications
6 Technical specifications WM128SSA WM148WSA Models (EN) Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) 230 V / 50Hz 230 V / 50Hz Electrical input (V/Hz) Total current (A) 2200 2200 Total power (W) Spin speed (rpm/ min., max.) -
Page 21: Troubleshooting
7 Troubleshooting Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> Press and hold Start / Pause button for 3 seconds to reset the machine to factory settings. (See "Cancelling the programme") Water in the machine. -
Page 22: Product Fiche
Complying Commission Delegated Regulation (EU) No 1061/201 Supplier name or trademark SMEG SMEG Model name WM128SSA WM148WSA Rated capacity (kg) Energy efficiency class Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 1.170 1.170... - Page 23 Numero del documento 2820523659_IT / 25-09-13.(13:43)
