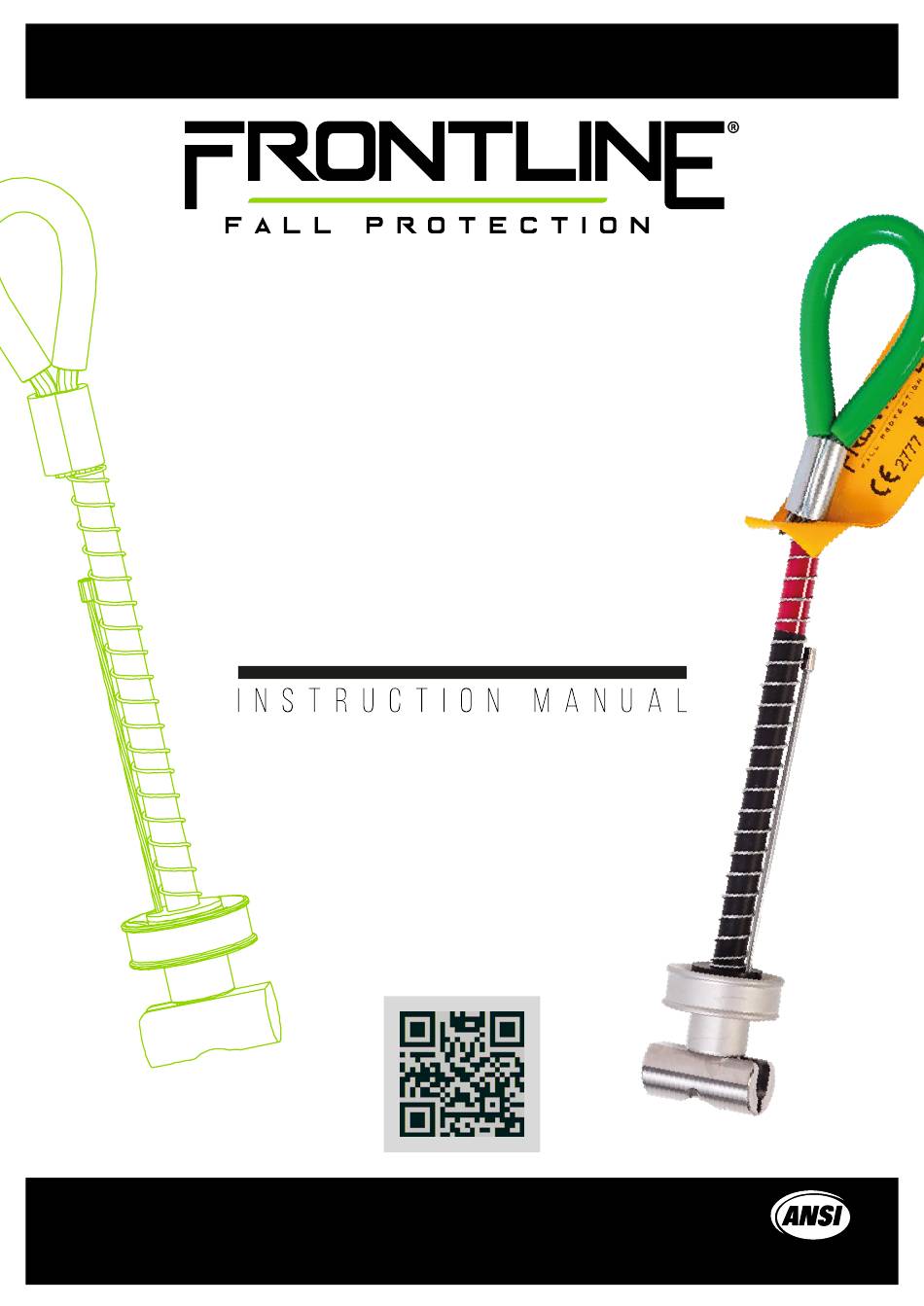

- Page 1 Toggle Bolt Anchor THE INSTRUCTIONS APPLIES TO THE FOLLOWING MODELS: COT345K BKLFL 05...
-
Page 2: Use Instructions

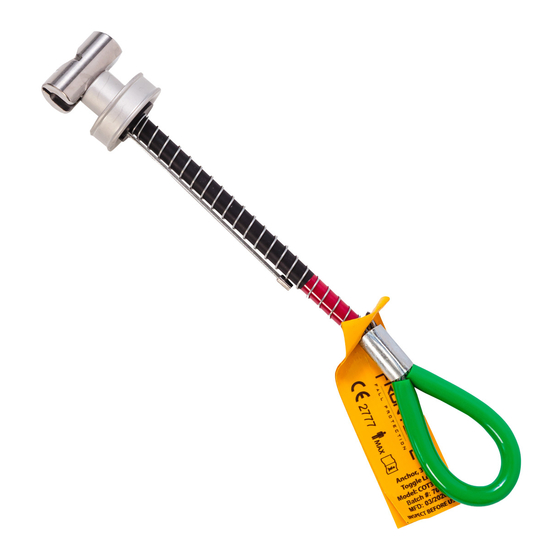

PURPOSE The COT345K is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector” in this manual include, and apply to, the COT345K. -
Page 3: Load Diagram
Toggle Bar Anchor Loop Swage .75”ø (20mm) Spring 11” (279.4mm) 1.5” (38mm) 1.7” (43.18mm) Indicator Main Cable Ball Shank 2.8” (71.12mm) Activator Wire Hole Plug PERFORMANCE: REGULATORY COMPLIANCE: 90º Good Static Tensile Strength: 5000-lbf (22kN) ANSI Z359.18 Type A, ANSI Z359.7-2011 Maximum Capacity: One worker with OSHA 1926.502, OSHA 1910.66, max weight of 310-lbs when used as a... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS: May be used as an anchor point for a leading edge restraint system. See optional anchor points below for example. The use of two anchors is not required for FOR HOLLOW CORE CONCRETE: leading edge restraint systems unless otherwise Drill a .75”... - Page 5 LIMITED REMEDY: Upon notice in writing, Frontline Fall Protection will repair or replace all defective items at Frontline Fall Protection’s sole discretion. Frontline Fall Protection reserves the right to require that the defective item be returned to its plant for inspection before determining the appropriate course of action.
