FrontLine HLK1004 User Instruction Manual

Applicable to
Manufacturer
Certification Body
Ongoing Assessment Body
Do not skip this instruction manual. Read the instruction manual carefully before using the equipment. If failed in doing so it may cause serious Injury or
Death.
Note: The user is advised to keep the user instructions document for the life of the product.

INTRODUCTION:-

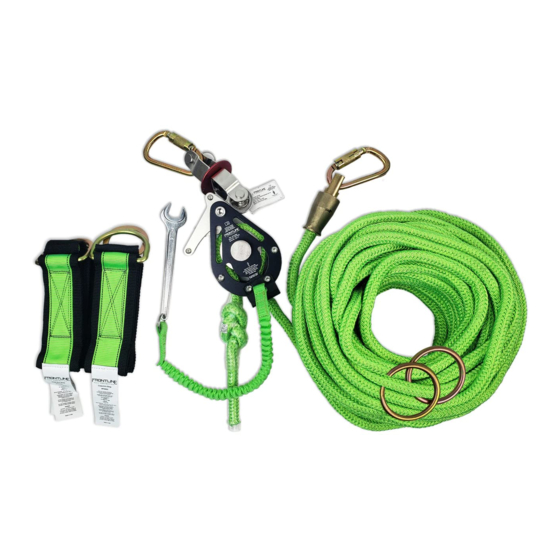

Thank you for purchasing a Frontline Fall Protection 4-Person Rope HLL. This manual must be read and understood in its entirety, and used as part of an employee training
program as required by OSHA or any applicable state agency.
This and any other included instructions must be made available to the user of the equipment. The user must understand how to safely and effectively use the 4-Person Rope
HLL, and all fall safety equipment used in combination with the 4-Person Rope HLL.

Applicable Safety Standards

When used according to instruction specifications, this product meets or exceeds ANSI Z359.1-2007, EN 795:2012 Type C & TS 16415 TYPE C standards for fall protection.
Applicable standards and regulations depend on the type of work being done, and also might include state-specific regulations. Consult regulatory agencies for more
information on personal fall arrest systems and associated components.

Worker Classifications

Qualified Person: A person with an accredited degree or certification, and with extensive experience or sufficient professional standing, who is considered proficient in
planning and reviewing the conformity of fall protection and rescue systems
Competent Person: A highly trained and experienced person who is ASSIGNED BY THE
EMPLOYER to be responsible for all elements of a fall safety program, including, but not
limited to, its regulation, management, and application. A person who is proficient in
identifying existing and predictable fall hazards, and who has the authority to stop work in
order to eliminate hazards.
Authorized Person: A person who is assigned by their employer to work around or be
subject to potential or existing fall hazards
It is the responsibility of a Qualified or Competent person to supervise the job site and
ensure all applicable safety regulations are complied with.

IMPORTANT BEFORE INSTALLATION AND USE :-

Prior to use, plan your system:
1. Ensure all PFAS equipment is selected and deemed compatible by a Competent
Person.
2. Eliminate or minimize all risk of swing fall.
3. Determine desired location for HLL; ensure location is free of debris, rot, decay,
cracking, and hazardous materials.
4. Installation, set-up, and use of HLL system must be done under the supervision of a
Qualified Person.
Recommended Maximum Users: 4

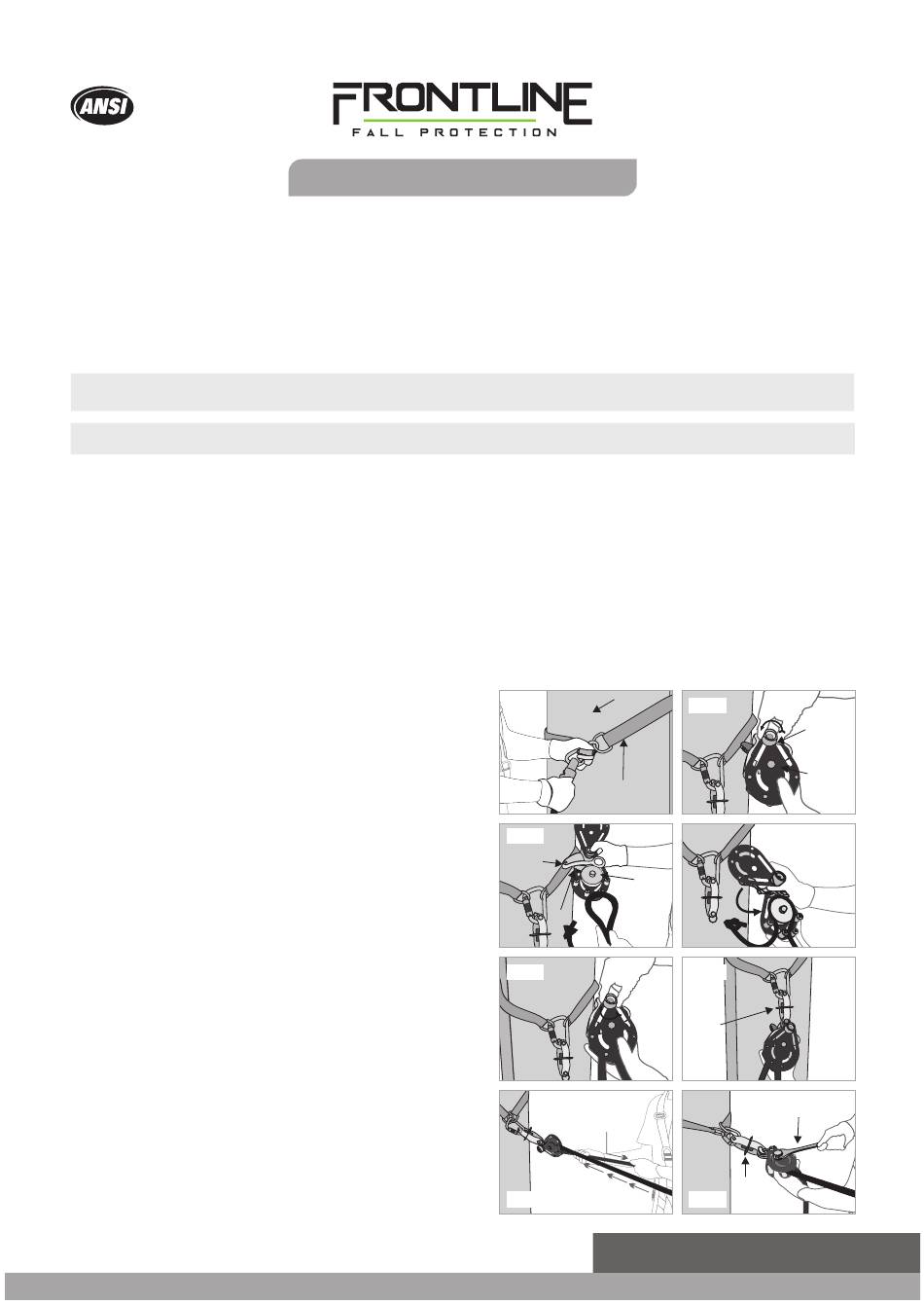

Installation Of Temporary Horizontal Lifeline HLK1004:-

Step 1: The receiving structure onto which lifeline is to be installed must be strong enough
to hold an impact load of more than 5000 lbs.Fig. 01
Step 2: Installation of rope into the tensioner:
a) Loosen the knob to slide open the housing cover plate. Fig. 02
b) Pull back the Hockey and Lock Body so as to create adequate gap to insert rope
around the pulley. Please refer attached image for the direction of rope insertion.
Fig. 03
c) Slide back the cover plate and ensure that hole on cover plates match with spacer
on the fixed cover plate. Fig. 04
d) Once aligned, re-tighten the knob to the fullest to hold the cover plates in position.
Fig. 05
Step 3 : With help of a Carabiner attached to the swivel connector of lifeline connect the
rope to a suitable anchorage point. (In case of any unavailability of anchor point
use Frontline Cross Arm Strap to create one.) Fig. 01
Step 4: Now connect the tensioner to the second anchorage point along with tension
USER INSTRUCTION MANUAL
: HLK1004
: www.frontlinefall.com
: SATRA Technology Europe Ltd, Bracetown Business Park, Clonee,
Dublin D15 YN2P Ireland (Notified Body 2777)
: SGS United Kingdom Ltd., Unit 202B, Worle Parkway,
Weston-super-Mare, BS22 6WA, UNITED KINGDOM.
(Notified Body 0120)
1
Fig 01
Structure
Cross
Arm Strap
Fig 03
Lock
Pulley
Hockey
Fig 05
Pull the Rope
for proper tension
Fig 07
Fig 02
Knob
Housing
Cover
Plate
Fig 04
Fig 06
Tension
Indicator
Spanner
Indicator
Plate
Fig 08
HLK1004
