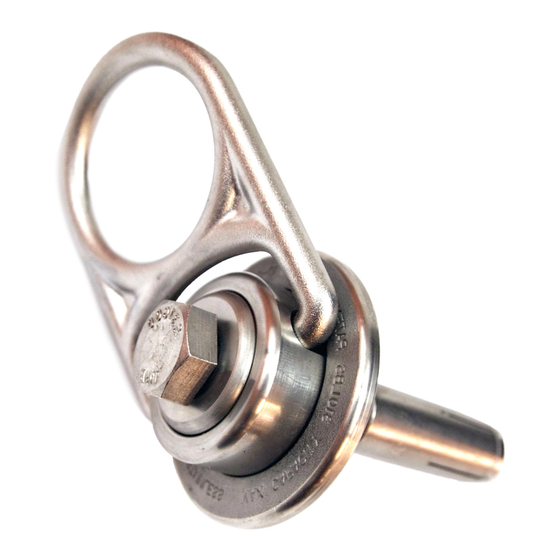

FrontLine COM345K Operation And Instruction Manual

180˚
ø
7.5"
(190.5mm)
5"
(127mm)
360˚

PERFORMANCE:

REGULATORY COMPLIANCE:

Tensile Strength (UTS): ANSI Z359.18 Type A,
5,000-lbf (22kN) ANSI Z359.7-2011,
Working Load: 1,000-lbs OSHA 1926.502
(454kg) OSHA 1910.66

DIMENSIONS:

COMPONENT MATERIALS:

Weight: 1.2-lbs
Zinc Plated Steel

STEEL MOUNTING: STM585K

Torque :
.5"-13 Lock Nut 45 ft-lbs
(61 Nm)
.5" Lock
Washer
Use
tapered
.5"-13 x 4"
washer
Hex Bolt *
drill .5" (13mm)Ø
.25"
(6mm)
min

INSPECTION AND MAINTENANCE LOG

MODEL NUMBER:
2.25"ø
DATE OF MANUFACTURE:
(57.15mm)
Date Part Number
3.0"
Inspection:
(76.2mm)
Official periodic inspection must be made at least semiannually. The inspection must
be performed by a qualified person other than the intended user. If severe weather or
conditions exist then inspections must be carried out more frequently. All inspection
results must be logged in the space provided above.
1. Inspect Swivel to make sure it is flush with mounting surface.
2. Make sure all labeling is affixed to the unit.
3. Inspect anchoring system for signs of damage or wear.
4. Make sure the unit can rotate 360° and D-ring can flip 180° side to side.
5. Record inspection results in the space provided above.
*If any damage that could affect the strength or operation of the device, or
unsafe conditions are found, proper disposal is required. Anchorage connector
must be rendered unusable and then properly discarded.

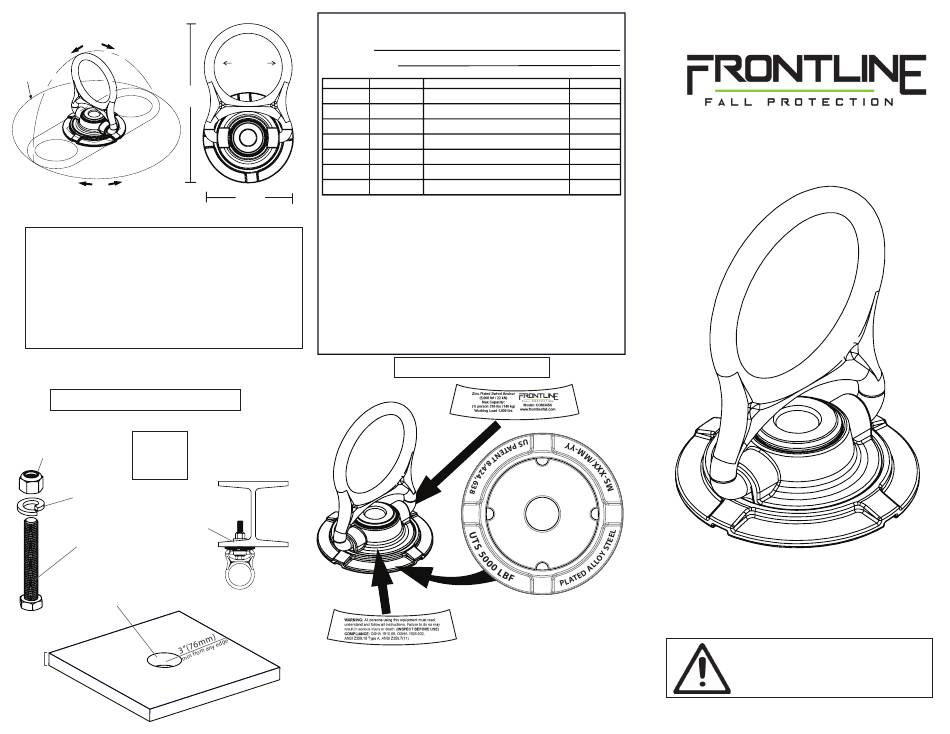

LABEL LOCATIONS

Frontline Fall Protection
info@frontlinefall.com / www.frontlinefall.com
Comments Inspector Name
2023 NW 84th AVE
Miami, FL 33122
OPERATION AND
INSTRUCTION MANUAL
Model: COM345K and STM585K

WARNING:

ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
Patent # US 8,424,638 V2.7-A
