- Page 1 Instructions for use DENTAL HANDPIECE / IMPLANT ANGLE Optima OS20X / Optima OS20L BA660080/BA660580...
- Page 2 Symbols Caution Manufacturer sterilizable in a steam sterilizer at temperature specified (132℃/Pre-Vacuum type) Catalogue number Keep away from rain sterilizable in a steam sterilizer at Community European temperature specified (121℃/Gravity type) Do not dispose of with domestic waste Notified Body Thermo disinfectable +70℃...
- Page 3 Index. Chapter 1. Summary Chapter 2. Precaution for Use Chapter 3. Production Information Chapter 4. How to Use Chapter 5. Maintenance Chapter 6. Out of Service Chapter 7. After Sales Service Chapter 8. Disposal...
-
Page 4: Chapter 1. Summary
Chapter 1. Summary 1.1 Purpose of use This device is an electric dental handpiece to be used connected to a motor for operating drilling, tapping, screwing of dental implants, screwing of the prosthetic parts. 1.2 User Only a licensed Dental professional should use this device 1.3 Inspection before use 1) Be sure to read the instruction manual before use. -
Page 5: Chapter 2. Precaution For Use
Chapter 2. Precaution for Use 2.1 Warning 1) Do not assemble or disassemble the handpiece or bur during operation. Do not use a bur that is bent, damaged, deformed or does not conform to ISO regulations. Damaged bur may be suddenly broken or jolted during rotation, resulting in injury. 3) Observe the manufacturer-specified rotational speed. - Page 6 Chapter 2. Precaution for Use 2.2 Caution 1) Be sure to read the user manual before use. Before use, make sure that the bur is correctly engaged into the handpiece head, ensuring the handpiece works normally by doing a test run. 3) Do not touch the bur whilst in operation.
- Page 7 Chapter 2. Precaution for Use 2.5 Side effect 1) Damage to the pulp 2.6 Contraindication 1) The product is prohibited from using in case of injury within the oral cavity as it may cause decay materials to permeate and cause an embolism.
-
Page 8: Chapter 3. Product Information

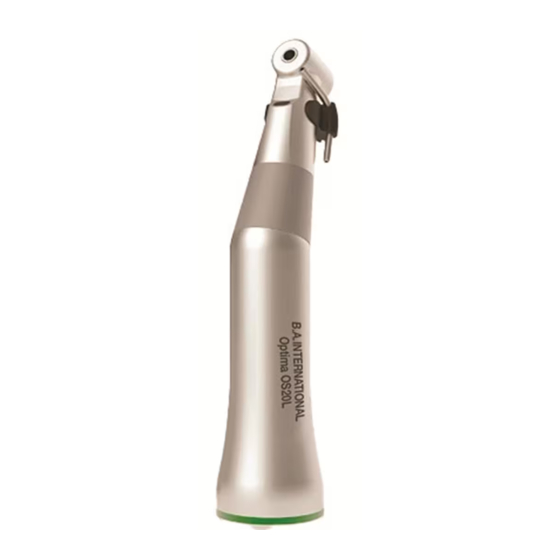

Chapter 3. Product Information 3.1 Product Information 1) Main Body of Handpiece(Contra Angle) Push button Push button Motor key Handle Sheath Handle Sheath Optima OS20L Optima OS20X Head Head Optic Optima OS20L(optic) Optima OS20X(non-optic) - Page 9 Chapter 3. Product Information 2) Accessory Components of Dental Handpeice Spray nozzle Spray clip Tube clip (BA660086) (BA660087) (BA660088)
-
Page 10: Product Performance
Chapter 3. Product Information 3.2 Product Performance Model Optima OS20X Optima OS20L Reduction ratio 20:1 Chuck Type Push button chuck Size 20(D) x 94.4(L) 20(D) x 95.9(L) Weight Rotating speed of motor 40,000rpm (Max.) Rotating speed of handpiece 2,000rpm (Max.) -
Page 11: Temperature Information
Chapter 3. Product Information 3.3 Temperature Information ● Handpiece maximum temperature: 48℃ ● Product standard operating time : After 2 minutes operation, stop for at least 15 minutes. 3.4 Environmental conditions (storage, transfer, operation) 1) Storage conditions 2) Transfer conditions 3) Operation conditions Temperature: -40°... -
Page 12: Chapter 4. How To Use
Chapter 4. How to Use 4.1 Assemble and disassemble ● Attach the head to the body and turn bur until head and body are flush. ※ If the head and the body are not Caution engaged and a gap is present, ▶... - Page 13 Chapter 4. How to Use 4.2 Connection and disconnection of motor ● Slide the handpiece horizontally to the motor and tightly close it. ● Turn the handpiece to the left or right to make sure it is connected to the motor. ●...
- Page 14 Chapter 4. How to Use 4.3 Bur assembly ● Push the push button while inserting the bur. ● Turn the bur to the left or right to make sure that it is completely tightened. ● Disconnect the bur by pushing the Push button to disengage the bur from the head.
- Page 15 Chapter 4. How to Use 4.4 Install the water supply tube ① Attach the spray nozzle and the spray clip to the head of the handpiece as shown in Fig 1. ② Connect the main water tube to the spray nozzle and spray clip as shown in Fig2. ③...
-
Page 16: Chapter 5. Maintenance
Chapter 5. Maintenance 5.1 Cleaning 1) Remove the head that is attached to the handpiece as shown. 2) Soak the handpiece in the cleaning solution(Cidezyme or similar) for 1 minute. Thoroughly wipe with a brush around the surface of device. 3) Clean the handpiece for 1 minute with a ultrasonic cleaner containing distilled water. - Page 17 Chapter 5. Maintenance 5.2 Lubrication 1) Use an E fitting spray adapter to lubricate the handpiece 2) Lubrication cycle ● After every internal wash ● Before every sterilization ● 30 minutes after use or at least 2 times a day SPRAY OIL ※...
- Page 18 Chapter 5. Maintenance 5.3 Sterilization Be sure to separate the handpiece, bur and water supply system. The following Table 5.3.1 sterilization parameters are recommended by the manufacturer. Table 5.3.1 Sterilization parameters Cycle type Temperature Exposure time Drying time Pre-Vacuum 132℃ (269.6℉) 4 minutes 30 minutes 30 minutes...
-
Page 19: Processing Instructions
Chapter 5. Maintenance 5.4 Processing Instructions Manufacturer: Micro-NX Co., Ltd. Method: See chapter 5.1,5.2 Symbol: See 2 page Device: See chapter 3.1 - Do not wash and sterilize in any way other than the user manual. Warnings - See Chapter 2 Limitations on Processing If used beyond 250 cycles of sterilization, there may be performance degradation. - Page 20 Chapter 5. Maintenance Instruction Initial treatment at the point of use See Chapter 1.3 Preparation before cleaning Remove the bur that is attached to the handpiece Cleaning: Automated Cleaning: Manual See Chapter 5.1 See Chapter 5.2, Maintenance, Check that the machine rotates normally when operating the product. Inspection and Testing (If the motor speed connected to the handpiece is 40,000 rpm, the handpiece speed is 2,000 rpm.) Packaging...
-
Page 21: Chapter 6. Out Of Service
Chapter 6. Out of service 6.1 Description of breakdown If your device has insufficient power, please consult the table below as a trouble shooting guide. If there is no relevant explanation mentioned in the table below or the issue cannot be resolved after troubleshooting - Contact the workshop authorised by BA international. -
Page 22: Chapter 7. After Sale Service
Chapter 7. After Sale Service 7.1 A/S information Manufacturer: MICRO-NX Co., Ltd. Country of manufacturer: Republic of Korea Address: 22, Maeyeo-ro 1-gil, Dong-gu, Daegu, 41059, Republic of Korea Contact: +82-53-650-1000 (www.micronx.co.kr) 7.2 Guarantee Warranty period of the product: 12 months Caution ▶... -
Page 23: Chapter 8. Disposal
Chapter 8. Disposal 8.1 Instructions for disposal procedure 8.1.1 Disposal of handpiece ● Follow local laws, standards and guidelines for disposal of used electrical equipment. ● Do not allow parts to be contaminated during disposal. 8.1.2 Processing of packaging materials ●... - Page 24 B.A. International Ltd. Unit 9, Kingsthorpe Business Centre, Studland Road, Northampton, NN2 6NE, UK. T: +44 (0)1604 777700 info@bainternational.com Web : www.bainternational.com JaviTech e.K., Sachsenhausener Straße 16, 65824 Schwalbach am Taunus, Germany MICRO-NX Co., Ltd. 22, Maeyeo-ro 1-gil, Dong-gu, Daegu, 41059 Republic of Korea...
