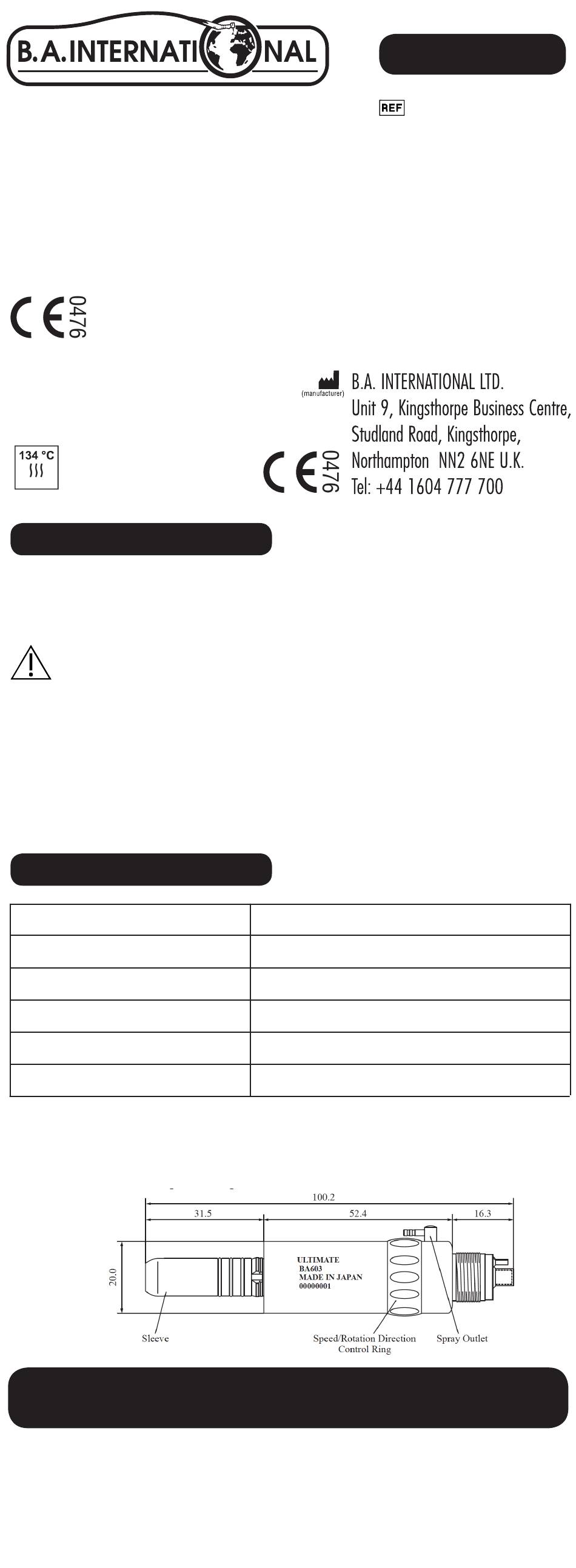

B.A. International Ultimate BA-603 Operation Manual

External Spray E-type Airmotor
Ultimate BA-603 4-hole
Operation Manual
The EU directive 93/42/EEC was applied in the design
and production of this medical device.
AUTOCLAVABLE
lndications for use
The device is intended for use in general dental applications: Drive for
Straight or Contra angle handpieces for dental restoration and prophy-
laxis.
Caution before use
• The BA Brand Ultimate external spray airmotor is intended for use by
dental professionals only.
• Read this Operation Manual carefully before using the airmotor. Be
sure to follow all the operating instructions, including all cautions and
warnings.
• Keep this Operation Manual for future reference.
Specifications
Back-end configuration
Drive Air Pressure
Rotation Speed
Air Consumption
Breakdown Torque
Weight
Note: T he maximum speed may vary slightly depending on the type of
tubing connected to the airmotor.
Dimensions and part descriptions:
Installation of Airmotor onto Tubing
Installation
• Make sure that tubing connector is ISO standard 4-hole.
• Align the pipes at the back-end of the airmotor with the corresponding
holes of the tubing, and then tighten the nut situated on the tubing by
turning it clockwise.
Applicable to 4-hole ISO standard connector
29-42 psi (0.2-0.29 MPa)
17,100-20,900 rpm (36 psi (0.25 MPa))
less than 66 NL/min (36 psi (0.25 MPa))
more than 1.5 N・cm (36 psi (0.25 MPa))
Connector
ENGLISH
BA-603
9792869
Rev.2016/08
93 grams
