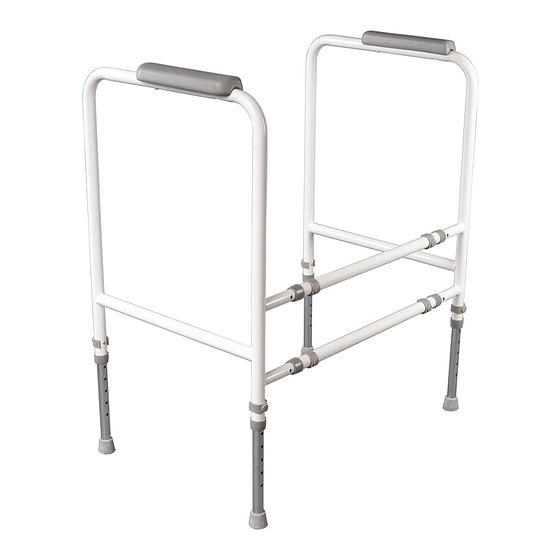

NRS Healthcare ECONOMY TOILET FRAME User Instructions

S18993
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in a safe
place for future reference.
1. INTENDED USE
To assist users in lowering onto and rising from the toilet. It provides comfortable support for the user when getting on and off the
toilet. An optional floor fixing kit is also available (M24308).
2. SAFETY
1
WARNING: The maximum user weight must not be more than
190 kg (30 st).
DO NOT: Attempt to climb on the product.
MAKE SURE: All legs are the same height to avoid rocking.
CHECK: All E-clips are fully inserted.
3. UNPACKING
Remove the packaging and check all parts carefully. Contact
your supplier immediately if parts are missing or damaged and
do not try and assemble.
Note: Some parts are fixed for shipping purposes only, these
will need to be disassembled into individual components (refer
to Section 3.1) before you follow the assembly instructions in
Section 4.
3
5
4
Remove the 4 x E-clips, then remove the leg extensions from
the crossbars.
NRS ECONOMY TOILET FRAME
NRS Economy Toilet Frame
2
3
4
5
5
4
5
3
5
USER INSTRUCTIONS
1
3.1 Contents:
1. Side-frame Assembly (RH) x 1
2. Side-frame Assembly (LH) x 1
3. Leg Extensions x 4
4. Crossbar x 2
5. E-clips x 8
4. ASSEMBLY
4.1 Fitting the Crossbars:
Slot the crossbars onto the side-frame assemblies and adjust
to the correct width for the user.
Align the holes and secure with the E-clips.
Note: Make sure that the side-frames and crossbars have
been set to the same width.
1
Maximum User Weight
30st
190kg
3
4
5
2
