Summary of Contents for Exsys EX-1526HMVS

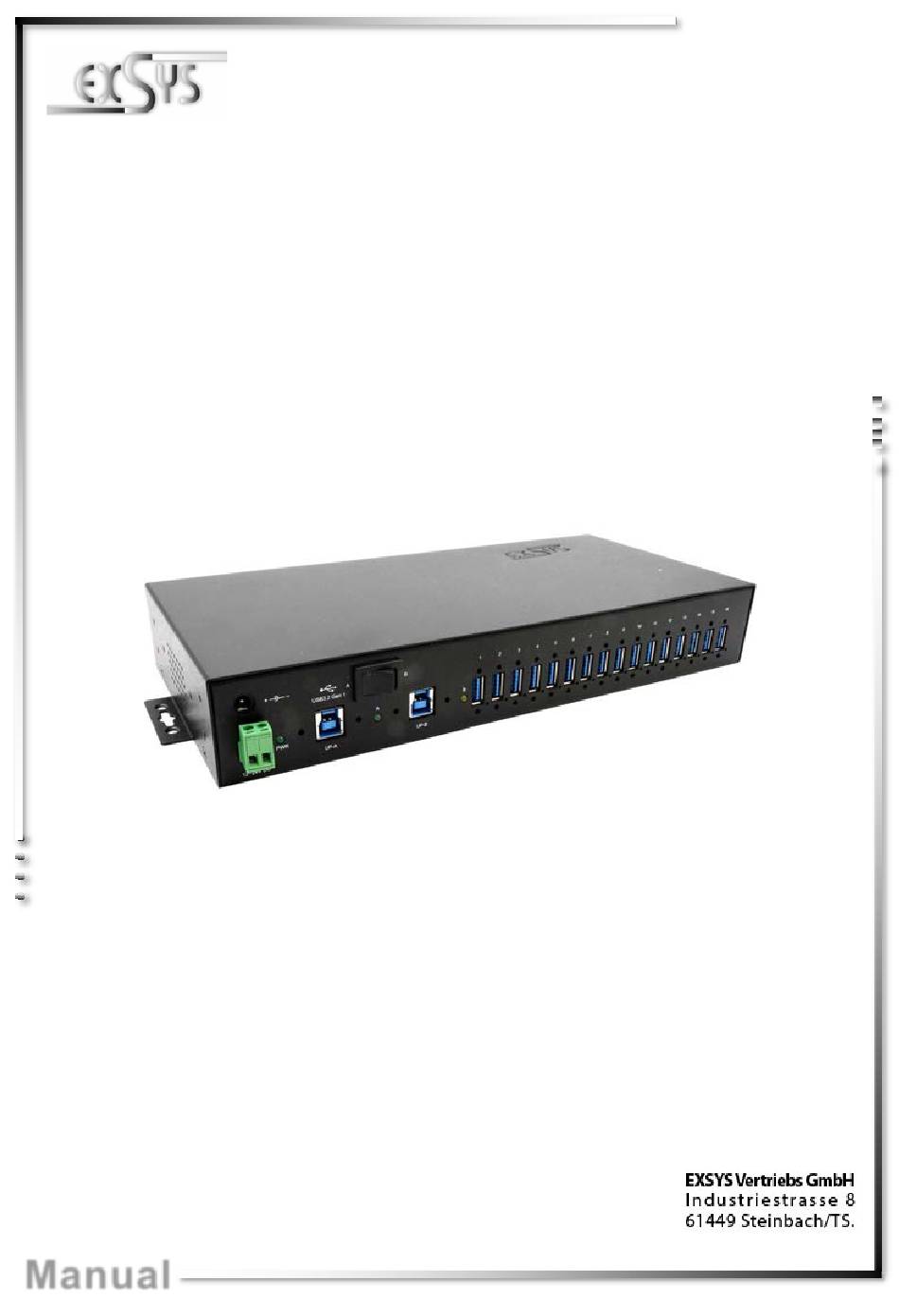

- Page 1 Manuale EX-1526HMVS HUB in metallo gestito USB 3.2 Gen 16 porte con alimentazione 1,5A per ogni porta USB e Protezione contro le sovratensioni ESD 15KV 16 Port USB 3.2 Gen 1 Managed Metal HUB with 1,5A power for each USB port and 15KV ESD Surge Protection Vers.
-
Page 2: Table Of Contents
Connections ·········································································································· 12-13 Hardware Installation ···················································································· 13-14 Driver Installation ······························································································ 14 Managment Software ···················································································· 15-16 Reset to Factory Setting ····················································································· 17 Cleaning·········································································································· 17 Technical Information ························································································· 18 Technical Drawing ····························································································· 18 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Descrizione
Italiano 1 . Descrizione EX-1526HMVS è un hub in metallo gestito USB 3.2 Gen 1 ad alta velocità plug & play per 16 dispositivi USB. EX-1526HMVS offre 16 porte per dispositivi USB e 2 porte uplink per PC. Supporta tutte le connessioni USB da 1.1 a 3.2. Tutte le porte possono essere fissate con serrature a vite. -
Page 4: Struttura E Connessioni
+12V - 24V T-Block: ATTENZIONE!!! Non collegare mai l'alimentazione a terra, questo può distruggere il tuo hardware!!! GND (Ground) +12V - 24V +12-24V Femmina: ATTENZIONE!!! Solo per l'uso con alimentatore disponibile opzionalmente! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Connessioni
è chiaro, fare riferimento alle istruzioni per l'uso del proprio sistema informatico. 1. Installare l‘EX-1526HMVS a parete o su una guida di montaggio con il Kit guida DIN-Rail Kit in dotazione o in rack da 19“con la staffa di montaggio a parete. -
Page 6: Installazione Driver
CONTROLLA IL DRIVER INSTALLATO Clicca >Gestione Dispositivi<. Adesso vedrete le seguenti informazioni „Porte (COM & LPT)“ & „USB -Controller“: Se queste voci o simili sono presenti, l'hub USB è installato correttamente. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 7: Software Di Gestione
6 . Software di Gestione Dopo aver completato l’installazione del driver, ora è possibile installare il software di gestione per accedere a EX-1526HMVS da remoto. Inserire il CD con i driver nel CD- ROM (e.s. driver D:) e avviare „EXSYS_USBCTL-R1.03_Setup“ che si trova nella cartella „Windows“... - Page 8 A tale scopo devi inserire il numero dell'articolo in cerca, e non appena trovi l’articolo devi andare sotto la voce " Video per installare il Software”. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 9: Ripristino Delle Impostazioni Di Fabbrica
Italiano 7 . Ripristino delle impostazioni di fabbrica Avete anche la possibilità di resettare l'EX-1526HMVS alle impostazioni di fabbrica. Per fare ciò, devi seguire i seguenti passaggi: Innanzitutto assicurarsi che l'hub sia scollegato dall’alimentazione! A tale scopo il LED di funzionamento non deve più... -
Page 10: Dati Tecnici
Temperatura di conservazione : Da -20° fino a 85° Celsius Umidità Relativa: 5% fino 95% Alimentazione: +12 fino +24 Volt Dimensione: 306,00 x 130,00 x 43,00 mm Peso: 1750g 1 0 . Disegno Tecnico © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Description
English 1 . Des c ription The EX-1526HMVS is a plug & play high-speed USB 3.2 Gen 1 managed metal hub for 16 USB devices. The EX-1526HMVS provides 16 ports for USB devices and 2 uplink ports for PC’s. It supports all USB connections from 1.1 to 3.2. -
Page 12: Layout & Connections
+12V - 24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +12V - 24V +12-24V Connector: ATTENTION!!! Only for use with optionally available power supply unit! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 13 Because there are large differences between PC’s, we can give you only a general installation guide. Please refer your computer’s reference manual whenever in doubt. 1. Install the EX-1526HMVS on the wall or on a DIN-Rail using the supplied DIN-Rail kit or in a 19" rack using the wall mounting brackets.
-
Page 14: Hardware Installation
Open the >Device manager<. Now you should see at „Ports (COM & LPT)“ & „USB-Controller“ the following new entry's: If you see this or a similar information the device is installed correctly. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 15: Managment Software
After the driver installation is complete, you can now install the management software to access the EX-1526HMVS remotely. Now insert the driver CD in your CD-ROM drive (e.g. Drive D:) and run „EXSYS_USBCTL-R1.03_Setup“ which located in the „Windows“ folder (see picture): Follow the installation instructions and complete the installation. - Page 16 English EX-1526HMVS 6 . Managme nt S oftw are Now you can make various settings on the EX-1526HMVS. Ports can also be switched on/off individually All Ports by clicking on the port number switch ON (Green=Active / Black=Inactive) Save current Settings Reset Settings Restart the...
-
Page 17: Reset To Factory Setting
English 7 . Rese t to Fa c tor y S e tting You also have the possibility to reset the EX-1526HMVS to factory settings. To do this, please follow the steps below: 1. First of all, make sure that the hub is disconnected from the power and data lines! For this purpose, the operating LED must no longer light up. -
Page 18: Technical Information
-40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +12 to +24 Volt Size: 306,00 x 130,00 x 43,00 mm Weight: 1750g 1 0 . Te c hni ca l Draw ing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
