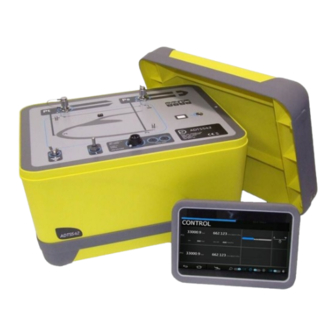

Druck ADTS542F Instruction Manual

Air data test set
Hide thumbs Also See for ADTS542F:
Table of Contents

Advertisement

Quick Links

Download this manual

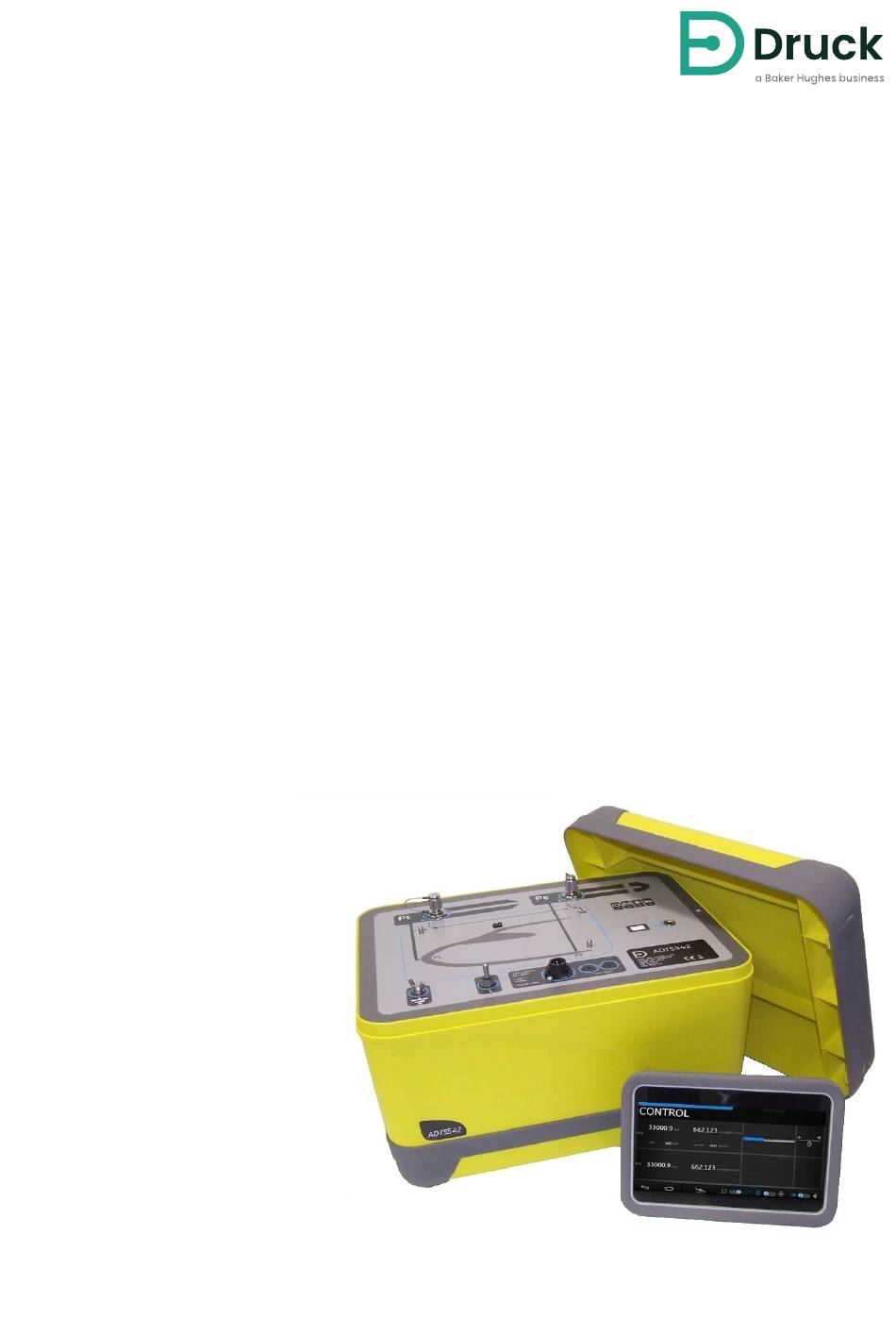

ADTS542F
ADTS552F/553F/554F
ADTSTOUCH
ADTSTOUCH-ER
Air Data Test Set
Instruction Manual
Druck.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADTS542F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Druck ADTS542F

Summary of Contents for Druck ADTS542F

  • Page 1 ADTS542F ADTS552F/553F/554F ADTSTOUCH ADTSTOUCH-ER Air Data Test Set Instruction Manual Druck.com...
  • Page 3 Introduction This technical manual provides operating instructions for the Druck Air Data Test System ADTS542F/552F/553F/554F series. Scope This technical manual contains a brief description, operation and testing procedures for the user of this equipment. Safety CAUTION See Safety and Installation Guide K0554.
  • Page 4 This symbol warns the user of the danger of electric shock. Druck is an active participant in the UK and EU Waste Electrical and Electronic Equipment (WEEE) take-back initiative (UK SI 2013/3113, EU directive 2012/19/EU). The equipment that you bought has required the extraction and use of natural resources for its production.
  • Page 5 Inches of Mercury Uncertainty coverage factor Kilogram Litre Light Emitting Diode Metre Milliampere Mach Speed ratio to the speed of sound Maximum mbar Millibar Minimum Millimetre Millivolts Non-Linearity Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | iii...
  • Page 6 To bring into line; to line up; to bring into precise adjustment, correct relative position or coincidence. Assemble To fit and secure together the several parts of; to make or form by combining parts. Copyright 2014 Baker Hughes Company. iv | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 7 Ascertain by using the appropriate test equipment that a component or system functions correctly. Return Goods/Material Procedure If the unit requires calibration or is unserviceable, return it to the nearest Druck Service Centre listed at: https://druck.com/service. Contact the Service Department to obtain a Return Goods/Material Authorization (RGA or RMA).
  • Page 8 Service by unauthorized sources will affect the warranty and may not guarantee further performance. You must inform Druck if the product has been in contact with any hazardous or toxic substance. The relevant COSHH or in the USA, MSDS, references and precautions to be taken when handling.

  • Page 9: Table Of Contents

    Altitude Dropback Rate Timer Mode 3.5.1 WAIT Period 3.5.2 TEST Period 3.5.3 Start the Rate Timer Settings 3.6.1 Intensity 3.6.2 Theme 3.6.3 Volume 3.6.4 ADTS settings 3.6.5 Configuration 3.6.6 Regional Settings Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | vii...
  • Page 10 Antenna Extension Kit Calibration Introduction PIN Codes and PIN Protection Calibration Process 4.3.1 Calibration Requirements 4.3.2 Calibration Equipment Uncertainty 4.3.3 Suggested Two-Point Calibration Adjustment Points Calibration Description 4.4.1 Preliminary Operations Copyright 2014 Baker Hughes Company. viii | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 11 ADTSTOUCH A.1.4 ADTSTOUCH-ER Canada A.2.1 ADTS542F/552F/553F/554F (English) A.2.2 ADTS542F/552F/553F/554F (Français) A.2.3 ADTSTOUCH (English) A.2.4 ADTSTOUCH (Français) A.2.5 ADTSTOUCH-ER (English) A.2.6 ADTSTOUCH-ER (Français) Mexico (México) Brazil (Brasil) China (中华人民共和国) Korea (대한민국) Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | ix...
  • Page 12 Copyright 2014 Baker Hughes Company. x | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 13: Introduction

    ADTS542F 1. Introduction The Druck family of Air Data Test Sets (ADTS) provide accurate air data to test two, three and four-channel systems. The manufacturer has designed this equipment to be safe when operated using the procedures detailed in this user manual.

  • Page 14: Setting The Epr - Method

    • Fault (Red) Battery pack status (if fitted - ADTS542F only): • For LED indications, see User Manual K0553 “ADTS542F Battery Pack” Note: Battery pack is currently not a purchasable option. Bluetooth® wireless technology connection status: • Wireless connection present (Blue) •...

  • Page 15: Adts552F

    ADTS552F 1.2 ADTS552F The ADTS552F incorporates all the features of the ADTS542F but with an optional communications board, which is located below the cover (10). 10 Cover for, optional, communications board. Figure 1-3: ADTS552F Front Panel 1.3 ADTS553F The ADTS553F incorporates all the features of the ADTS552F but with an additional Static (Ps2) port (11), making it a three channel test set.

  • Page 16: Adts554F

    ADTS, or can be battery powered. The ADTSTOUCH is a touch screen device which features a swipe-action (up/down/left/right) touch screen user interface with color graphics and menus. Figure 1-6: ADTSTOUCH Copyright 2014 Baker Hughes Company. 4 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 17: Status Indicators

    Pressure mode selection: toggle function. The blue indicator identifies the currently selected function: With pressure units selected: • Indicator left: Ps (static) and Pt (pitot) (absolute pressures). • Indicator right: Ps (static) and Qc. With Aeronautical units selected: Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 5...

  • Page 18: Dual Adtstouch Hand Terminals

    Software version DK0429 does not support dual hand terminal functionality in the ADTSTOUCH or ADTSTOUCH-ER. The ADTS542F/552F/553F/554F utilizing DK0467 software can be operated with two ADTSTOUCH hand terminals. Only one of the units (the ‘Primary’) can control the ADTS. The second unit (the ‘Secondary’) operates as a display when the Primary is connected.
  • Page 19 The Secondary unit can be distinguished from the Primary unit visually. The Secondary unit includes a “REMOTE” banner on the display at all times, see Figure 1-9. Figure 1-9: ADTSTOUCH in Remote Mode Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 7...
  • Page 20 Chapter 1. Introduction Copyright 2014 Baker Hughes Company. 8 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 21: Installation

    Backpack (ADTS542F only) ADTSTOUCH carry case. Second ADTSTOUCH (not for ADTS542F). For a complete list of available options, refer to product data sheet: ADTS542F/552F/553F/554F, 920-648x, 920-659x. 2.2 Packing for Storage or Transportation To store the ADTS or to return it for calibration or repair carry out the following procedures: The ADTS should be at zero/ambient pressure.

  • Page 22: Electrical Connection

    Voltages in excess of 30 Volts (RMS) AC or 50 Volts DC, in certain circumstances, can be lethal. Care must be taken when working on live, exposed conductors. 2.3.1 Power Supply 200 VA Max – ADTS542F/552F 110/230 Vac, 50/60Hz Single phase 115 Vac, 400Hz 300 VA Max –...

  • Page 23: Fuses

    Note: In control mode, the water drain, located on the left-hand side of the unit near the cooling vent, produces a flow of air and some water. The amount of water depends on the humidity and the operating time in control mode. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 11...

  • Page 24: Connection To Aircraft

    Altitude correction height difference Figure 2-1: Pitot and Static Aircraft Connection Figure 2-2 shows a Pitot only aircraft connection. ADTS ADTS542F/552F/553F/554F with Pt connected to Air Data Computer the aircraft and the ADTS Ps port open to the atmosphere. Cockpit instrumentation...
  • Page 25 Note: The ∆h altitude correction value should be positive when the ADTS is positioned below the aircraft. See Section 3.6.4.4 for instructions on how to enter the altitude correction value into the ADTS. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 13...
  • Page 26 Chapter 2. Installation Copyright 2014 Baker Hughes Company. 14 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 27: Operation

    Either position the ADTSTOUCH on the docking connector of the ADTS, or connect the ADTSTOUCH to the ADTS using the umbilical cable connector. Set the On/Standby Switch on the front of the ADTS to ON. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 15...
  • Page 28 Fault If the self test fails (red Fault indication), or for any other reason the ADTS is considered to be unserviceable, contact Druck and return the ADTS to Druck or to a Druck approved service center. During the Power-up routine, the following screen is displayed showing a Progress bar at the...

  • Page 29: Wireless Connection

    Pairing can only be achieved whilst the LED is in this state. After approximately 5 minutes the Bluetooth® LED will change to a slower blink. While the Bluetooth® LED is FAST FLASHING: Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 17...

  • Page 30: Dashboard

    • • SETTINGS • TOOLS • TEST SEQUENCE 1 Pitot Static 2 EPR 3 Settings 4 Tools 5 Swipe horizontally to view Test Sequence menu. Figure 3-3: Dashboard Main Menu Copyright 2014 Baker Hughes Company. 18 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 31: Pitot Static

    (3) of pressures present at the Ps and Pt ports of the ADTS or any connected aircraft systems. All ADTS pumping and pressure control functions are inactive unless Autoleak protection is enabled. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 19...

  • Page 32: Control Mode

    When CONTROL mode is selected at icon (1), the ADTS pumps and pressure control functions are activated but will not cause any change in the current pressures unless requested by the operator. Copyright 2014 Baker Hughes Company. 20 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 33 This baseline Pitot Static control screen will typically be used to actively exercise the connected aircraft or system over the required Ps/Pt parameter test range. Figure 3-7: Control Mode – Single Channel Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 21...

  • Page 34: Alt, Cas And Mach

    3.4.3.1 ALT (ALT1, ALT2 on ADTS553F and ADTS554F) Displays the currently selected altitude. To change the altitude value: Tap the “Aim” value (1) to highlight it. Use the numbered keypad to input the new value. Copyright 2014 Baker Hughes Company. 22 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 35: Ps, Pt And Qc

    Displays the current selection. To change the value, repeat the same procedure of Section 3.4.3.1 for Mach. 3.4.4 Ps, Pt and Qc The following controls are available when “Pressure” units are selected: Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 23...

  • Page 36: Altitude Dropback

    Section 3.4.4.1 for Qc. 3.4.5 Altitude Dropback The ADTS542F/552F/553F/554F series use a single set of pumps to generate the internal pressures and vacuums which are ultimately presented at the Static and Pitot ports. During control situations where high gas flows are required, it is possible for these source pressures to start to collapse.

  • Page 37: Wait Period

    On the Rate Timer panel, tap WAIT (1) to highlight it, the Set Time panel opens. Figure 3-13: Set Wait Time Panel On the Set Time panel, select the required “hours”, “minutes” and “seconds” (2). Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 25...

  • Page 38: Test Period

    Navigate to Dashboard >> Settings. The Settings screen opens showing the available controls. Note: The ADTS contains PIN protected menus. A list of factory default PIN codes can be found in Section 4.2. Copyright 2014 Baker Hughes Company. 26 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 39: Intensity

    Adjusts the brightness of the screen displays. 3.6.2 Theme Changes the screen view from a dark background with white text to a light background with black text for bright sunlight use. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 27...

  • Page 40: Volume

    Tap the “Tick” icon, the numbered keypad closes and the new altitude correction setting is displayed in the altitude correction setting panel. Tapping the “Cross” icon, cancels the action and closes the numbered keypad. Copyright 2014 Baker Hughes Company. 28 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 41 Opens the “ADTS limits” sub-menu. The “ADTS limits” sub-menu contains the following items: • View limits • Select limits • Default limits • Edit limits • Create new limits • Delete limits. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 29...
  • Page 42 1000 mbar/min Maximum RtQc 1000 mbar/min Alt correction ± 100.0 feet ARINC Extended Altitude (EALT) option will be made available through pin number. Table 3-4: Max Aero (ADTS542F) Limit Value Minimum Altitude -3000 feet Maximum Altitude 55,000 feet Minimum CAS 0.0 knots...
  • Page 43 Minimum Qc 0.00 mbar Maximum Qc 368.01 mbar Maximum Mach 0.900 Mach Maximum ROC 6000 feet/min Maximum RtPs 109.85 mbar/min Maximum RtQc 109.85 mbar/min Alt correction ± 100.0 feet ARINC Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 31...
  • Page 44 Minimum Qc -16.93 mbar Maximum Qc 368.01 mbar Maximum Mach 1.000 Mach Maximum ROC 10,000 feet/min Maximum RtPs 366.16 mbar/min Maximum RtQc 366.16 mbar/min Alt correction ± 100.0 feet ARINC Copyright 2014 Baker Hughes Company. 32 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 45 Settings Table 3-9: FL280 MAX (ADTS542F) Limit Value Minimum Altitude -3000 feet Maximum Altitude 28,000 feet Minimum CAS 0.0 knots Maximum CAS 450.0 knots Minimum Ps 329.32 mbar Maximum Ps 1400.00 mbar Minimum Qc -1000.00 mbar Maximum Qc 368.01 mbar Maximum Mach 1.094 Mach...
  • Page 46 Tap Yes. The selected limits set is removed from the list. Tapping No returns to the Delete limits panel without making any changes. If required, repeat this procedure to delete other user limits sets. Copyright 2014 Baker Hughes Company. 34 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 47: Configuration

    3.6.6.3 Time To change the time setting: Tap the time panel. The current setting is displayed. On the displayed panel, select the required “hours”, “minutes” and “seconds” Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 35...

  • Page 48: Screen Rotation

    Sensor Revert Calibration Clear Calibration Change CAL pin Calibration (Software update) Upgrade: ADTSTOUCH Application Operating system Upgrade: ADTS Update main code Update boot code Bluetooth® New scan for devices Certifications Copyright 2014 Baker Hughes Company. 36 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 49: Calibration (Calibrate Sensors)

    Enter the new PIN again and tap the “tick” icon again. The numbered keypad closes and the new PIN is now active. Tapping the “Cross” icon cancels the action and closes the numbered keypad without changing the PIN. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 37...

  • Page 50: Calibration (Software Upgrade)

    Shows related sensor status information as follows: • Ps: sensor Ps status. • Pt: sensor Pt status. • Source: sensor source status. • Vacuum: sensor vacuum status. Pumps Shows related information about the following pumps: Copyright 2014 Baker Hughes Company. 38 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 51 Message history: shows the main event log for activities such as; switching on, error messages and codes, and system status changes. 3.7.4.6 Summary Shows relevant information relating to the unit, including: • ADTSTOUCH serial number. • ADTSTOUCH main code. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 39...

  • Page 52: Save/Recall Adts Settings

    Tap “No” to cancel the action and return to the “Save/Recall User Setup” sub-menu. 3.7.5.5 Copy all Files to USB Allows files to be copied to a USB device: Tap the “Copy all files to USB” panel. Copyright 2014 Baker Hughes Company. 40 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 53: Adts Manuals

    (ground) pressures. On a multichannel system (ADTS553F and ADTS554F), the channels may be at different altitudes. These will take different times to go to ground. This is represented on the ADTSTOUCH Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 41...
  • Page 54 The display shows the current Rate at which the aircraft will go to ground (1). Figure 3-18: Go to Ground Main Screen – Single Channel Figure 3-19: Go to Ground Main Screen – Multi Channel To change the “Rate”: Copyright 2014 Baker Hughes Company. 42 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 55 Tap the green “tick” icon on the Go to Ground screen (4). Figure 3-21: Start Go to Ground Action – Multi Channel The aircraft color changes to orange while it is being controlled to ground pressure. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 43...
  • Page 56 Note: Once the green “tick” has been tapped, the Go to Ground process cannot be stopped. The “cross” icon only closes the dialogue window. Figure 3-22: Aircraft Going to Ground – Single Channel Figure 3-23: Aircraft Going to Ground – Multi Channel Copyright 2014 Baker Hughes Company. 44 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 57 The HOLD state may be released either by again tapping the orange “hand” icon or by returning to MEASURE mode. The “hand” will turn green to indicate hold is released. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 45...
  • Page 58 Ps or Pt port pipe connections may be added or removed without creating pressure transients to connected systems. Figure 3-27: Go To Ground Complete – Multi Channel Note: Operating the MEASURE/CONTROL icon will cancel the AT GROUND state. Copyright 2014 Baker Hughes Company. 46 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 59: Manual Venting Of The Aircraft Pitot And Static Systems

    This procedure describes the order in which the manual let-down valves are opened for 2- channel pitot and static applications. Figure 3-28: ADTS542F/552F Manual Let-down Valves Slowly open valve (A), Pt to Ps. Slowly open valve (B), Ps to atmosphere.

  • Page 60: Adts553F Manual Let-Down

    Slowly open valve (A), Ps2 to Ps1. Slowly open valve (D), Ps1 to atmosphere. 3.11 Multi-Channel Advanced Features 3.11.1 Multi-Channel Operation The ADTS553F can function as an ADTS552F by disabling the second static channel. Copyright 2014 Baker Hughes Company. 48 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 61: Independent Pilot / Co-Pilot Testing

    3.12 Example Basic Aircraft Test Operation 3.12.1 Preparation for Testing If unfamiliar with the features and functions of the ADTS542F/552F/553F/554F then it is important for operators to read and understand the following documents before use: •...

  • Page 62: Aircraft Connections

    ADTSTOUCH will be optimized if the ADTS is placed with line of sight to the cockpit windows. Assess the hose lengths that will be required and procure either from Druck or local stores. The ADTS542F/552F/553F/554F can be supplied with low temperature red and blue flexible hoses if requested when procuring your ADTS.
  • Page 63 The aeronautical/pressure units can be changed whilst the ADTS is operating. The aircraft status screen can be used to give a quick overview of whether the aircraft is climbing, descending or at a stable altitude. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 51...

  • Page 64: Engine Pressure Ratio (Epr)

    Note: The EPR function can only be launched after ‘Go to Ground’ has been selected and the ADTS is at ground pressures. 3.13.1 Setting the EPR – Method 1 On the “Dashboard”, select “EPR”. The EPR control screen appears. Copyright 2014 Baker Hughes Company. 52 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 65 3.13.2 Setting the EPR – Method 2 EPR testing can also be performed by specifying the actual INLET and OUTLET values. On the “Dashboard”, select “EPR”. The EPR control screen appears. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 53...
  • Page 66 On completion of the EPR checks, select “Go to Ground” and wait for the AT GROUND message to be displayed, see Section 3.8. Refit the pitot and static blanking caps. Copyright 2014 Baker Hughes Company. 54 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 67: Epr Limits

    Test Sequence mode allows tests to be run, using the ADTS, based on previously defined and stored test sequence data. On the Dashboard, swipe across to select TEST SEQUENCE. The “Test Sequence” screen appears showing the last used test sequence title. Figure 3-34: Dashboard Menu Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 55...
  • Page 68 Chapter 3. Operation Figure 3-35: Dashboard Menu – Test Sequence Highlighted If the ADTS is in Standby mode, the Test Sequence can only be viewed. Figure 3-36: ADTS in Standby Mode Warning Copyright 2014 Baker Hughes Company. 56 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 69 It is possible to import, export and delete the test sequence files. First select the load test sequence button in the footer (highlighted). Figure 3-37: Load Test Sequence Button Tap SELECT FILE to select the test sequence to load. Figure 3-38: Select Test Sequence Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 57...
  • Page 70 The ADTSTOUCH can import test sequences. Select IMPORT FILES to import test sequences from a USB device. The test sequences must be in a folder named TEST SEQUENCES on the root of the USB device. Figure 3-40: Import Test Sequences Copyright 2014 Baker Hughes Company. 58 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 71 Select the desired test sequence to be deleted. One or more test sequences can be deleted simultaneously if required. Once the necessary files have been selected, press the trashcan icon to delete. The ‘tick box’ icon toggles between select all/select none. An ‘Are you sure?’ Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 59...
  • Page 72 Figure 3-44 for an example test sequence. The blue horizontal line indicates the immediate test to be performed by the ADTS. Note: If the ADTS is in standby mode, test sequences can only be viewed. Figure 3-44: Test Sequence View Copyright 2014 Baker Hughes Company. 60 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 73 12. It is possible to have separate sub-tables within the test sequence menu, for example (leak test, air data test). Select the sub-table button (highlighted) to select a specific sub-table within the test sequence itself. Figure 3-46: Test Sequence Sub-tables Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 61...
  • Page 74 13. After selecting the sub-table button the ADTSTOUCH shows the available sub-tables that can be selected. Figure 3-47: Test Sequence Sub-table Selection 14. Once selected the new sub-table is displayed. Figure 3-48: Test Sequence Sub-table View Copyright 2014 Baker Hughes Company. 62 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 75 ADTS to control to the selected pressure set points. The set points highlighted in the horizontal blue line become the active set points for the ADTS. Figure 3-50: Activating Control Mode Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 63...

  • Page 76: Creating Custom Test Sequences

    The data presented on the ADTSTOUCH for a test sequence is contained in a single CSV file. Excel®. It is recommended to give each CSV file a meaningful name to assist easy identification and selection. Copyright 2014 Baker Hughes Company. 64 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 77 Confirming ADTS control capability to 32,000 feet range End of Test Wait for ‘AT GROUND PRESSURES’ indication GROUND GROUND GROUND End Test Table Figure 3-53: CSV File of Custom Test Sequence Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 65...

  • Page 78: Saving Finished Test Sequences As Csv Format

    This mode can be used as an alternative to test airspeed indicators (ASI) using just the ADTS Pt or Ps port connected to the ASI. 3.15.1 Pt Only Control Mode Refer to Figure 2-2 for Pt Only ADTS to aircraft connection details. Copyright 2014 Baker Hughes Company. 66 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 79: Bluetooth

    Bluetooth® wireless technology is licensed to be used in is available upon the request from Druck. Bluetooth® operation is normally enabled at point of manufacture, but can also be enabled after sale (product option code ASTOUCH-36). For more details contact Druck. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 67...

  • Page 80: Optimum Adts Placement

    Note: Must be done within five minutes of power-up on units using DK0467 software. A list of available devices is displayed showing the software version and serial numbers of the devices. Copyright 2014 Baker Hughes Company. 68 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 81: Adtstouch-Er (Extended Range) Bluetooth

    The antenna is connected to the RF connector on the body of the ADTSTOUCH-ER using a cable. Both options allow the operator to move freely Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 69...
  • Page 82 Note: When using the antenna extension kit, for optimal performance the antenna should be placed on the cockpit window closest to the ADTS Controller, see Figure 3-60. Figure 3-60: Optimal External Bluetooth® Antenna Placement Copyright 2014 Baker Hughes Company. 70 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 83: Calibration

    For the system to remain accurate, a calibration check should be carried out at regular intervals. The recommended calibration period can be found on the relevant specification sheet for each model of the ADTS542F/552F/553F/554F series. If the accuracy of the system is not within the specification, carry out a calibration adjustment.

  • Page 84: Calibration Requirements

    Chapter 4. Calibration 4.3.1 Calibration Requirements Note: Calibration period dependent on calibration option selected at time of product purchase. Table 4-2: Calibration Requirements ADTS542F Function Accuracy Specifications Test Method Ps Range: 92 mbar to 1130 mbar absolute Accuracy: Refer to current product data sheet.

  • Page 85: Calibration Description

    The date of calibration adjustment is logged and stored during this procedure. It is important that the ADTSTOUCH clock date is checked before starting a calibration adjustment or an incorrect Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 73...

  • Page 86: Preliminary Operations

    Follow the on-screen instructions. Calculate the actual applied pressure reading to at least 4 decimal places and enter this value into the ADTS. Repeat this procedure for the other channel. Copyright 2014 Baker Hughes Company. 74 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 87: Completion Of Calibration

    Make sure the calibration standard and the ADTS are at atmospheric pressure. Disconnect the calibration standard from the ADTS. If there is no further calibration or testing required, exit menus, select standby or switch off the ADTS. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 75...
  • Page 88 Chapter 4. Calibration Copyright 2014 Baker Hughes Company. 76 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 89: Maintenance

    If skin or clothes come into contact with the electrolyte, wash immediately with soap and water. If electrolyte comes into contact with the eyes, wash the eyes thoroughly with water and consult a Doctor immediately. Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 77...

  • Page 90: Maintenance Tasks

    Make sure the o-ring is tight in the groove and not damaged after fitting. Note: Damage to this o-ring causes leaks. Copyright 2014 Baker Hughes Company. 78 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 91: Replacing A Fuse

    Secure the fuse holder in the front panel. 5.5 Software Updates When software updates are available, they can be downloaded from the Druck website to a USB memory stick and used to update the applications on the ADTS and ADTSTOUCH.

  • Page 92: Installing Software Updates

    • MAIN CODE. You will be asked to confirm the software upgrade “Yes” or “No”. • BOOT CODE. You will be asked to confirm the software upgrade “Yes” or “No”. Copyright 2014 Baker Hughes Company. 80 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 93: Downloading Adts Manuals

    Selecting “No” closes the dialog without making any changes. 5.5.3 Downloading ADTS Manuals Go to https://druck.com. The “Druck” page is displayed. On the top level menu bar, click Products. Menu items under that header are shown. Click ‘Test and Calibration Instrumentation’.
  • Page 94 Chapter 5. Maintenance Copyright 2014 Baker Hughes Company. 82 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 95: Testing And Fault Finding

    Limited testing and fault finding can be carried out by the operator. Units can be returned to the nearest Druck or Druck approved service center for fault finding and rectification. At power-up, the ADTS indicates if there is a fault by flashing an error code and/or displaying a message.

  • Page 96: Pressure Leak Check

    ± 0.6 mbar/min. If the rates are greater than this value, allow further thermal stabilization time and re-test. If repeated failures occur, return the unit to Druck or a Druck authorized repair center. 6.3.3 Vacuum Leak Check This procedure verifies that the unit is leak tight under negative pressure conditions.

  • Page 97: Fault Codes And Error Messages

    If the display shows an error message, the unit should be switched off and then on again. If the display still shows an error message after switching on again, the unit should be returned to Druck or a Druck authorized repair center.
  • Page 98 Control Task Failed Control Timer Vacuum Leak in Ps. Leak rate = Vacuum Leak in Pt. Leak rate = Valve characterisation data missing Ps pressure control valve cannot be calibrated Copyright 2014 Baker Hughes Company. 86 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 99 ADC7822 Invalid Input Calibration switch in ON position when commanded OFF Calibration switch in OFF position when commanded ON Calibration Latch indicates invalid inputs ALTERA Event ALTERA HISR Failed ALTERA LISR Failed Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 87...
  • Page 100 CAN Task Queue Fail CAN Task task Fail Data FLASH is not blank Device Error Invalid Bitmap Invalid Blank Invalid Character Display Coord Invalid Invalid Font Invalid Line Invalid Page Invalid Point Copyright 2014 Baker Hughes Company. 88 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 101 PDCR VC2 Failed Invalid Pump Id Pump monitoring has failed when pumps commanded ON Pump monitoring has failed when pumps commanded OFF Pump monitoring has failed when pressure pump commanded ON Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 89...
  • Page 102 Solenoid Timer Failed Invalid Solenoid ID SPI Entry parameters are invalid EEPROM Block is null EEPROM invalid device selected EEPROM Block is out of range Water Dump Failed Driver Write Copyright 2014 Baker Hughes Company. 90 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 103 Changed Aim to ARINC Limit Calibration data failed Cannot enter EPR in Aero Units Invalid stored end user Invalid end user Invalid end user switch Changed Aim to Current Limit Limits Overlap Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 91...
  • Page 104 Connected hand term has failed to respond. Disconnecting power Out of working temperature range Valve characterisation data is invalid. Restoring from FLASH Valve constant a1 is out of range Valve constant b1 is out of range Copyright 2014 Baker Hughes Company. 92 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 105 CAS is outside MAX limits Alt is outside MAX limits ROC is outside MAX limits Qc is outside MAX limits Ps is outside MAX limits RtPs is outside MAX limits Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 93...
  • Page 106 ERROR_DRIVER_IO_MAIN_ADC_ACQ_TMR_APP ERROR_DRIVER_IO_MAIN_ADC_ACQ_TMR_REL Pump PWM hardware fault PT control sensor checksum error PT control sensor diode ADC acquisition error PT control sensor frequency acquisition error PT control sensor EEPROM write error Copyright 2014 Baker Hughes Company. 94 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 107 Software version mismatch Power check initialisation external reset error ERROR_DRIVER_PWR_INIT_EXT_MISC Power check external reset error Ps differential limit exceeded Slave board synchronisation error Switched from three channel to four channel controller Copyright 2014 Baker Hughes Company. English–ADTS542F/552F/553F/554F Instruction Manual | 95...
  • Page 108 Chapter 6. Testing and Fault Finding Copyright 2014 Baker Hughes Company. 96 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 109: Specification

    In addition to the information contained in the latest data sheet, note the following: ADTS542F - Above 9,144 m (30,000 ft) the rate of climb (ROC/Rt Ps/Pt) into a 3L total volume (Ps 2L + Pt 1L) performance is limited by pump capability (that may vary higher or lower depending on pump running hours, equipment under test volume, ambient temperature and barometric pressure of the day).
  • Page 110 Chapter 7. Specification Copyright 2014 Baker Hughes Company. 98 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 111: Appendix A. Compliance Statements

    This device must accept any interference received, including interference that may cause undesired operation. This device is only authorized for use in a mobile application. At least 20 cm of separation distance between the ADTS542F/552F/553F/554F device and the user’s body must be maintained at all times. •...

  • Page 112: Canada

    ADTS542F/552F/553F/554F: Contains IC ID: 5123A-BGTWT41 - patch antenna: 50 ohms, 6.662 dBi gain. • (For DK0429 variants only) ADTS542F: Contains IC ID: 5123A-BGTWT41 - dipole: 50 ohms, 2.3 dBi gain. • (For DK0429 variants only) ADTS552F: IC ID: 12097A - ADTS552F01 - patch antenna: 50 ohms, 6.662 dBi gain.

  • Page 113: Adtstouch (English)

    ADTS542F/552F/553F/554F: Contient IC ID: 5123A-BGTWT41 - antenne patch: 50 ohms, 6.662 dBi gain. • (Pour les variantes DK0429 seulement) ADTS542F: Contient IC ID: 5123A-BGTWT41 - antenne dipôle: 50 ohms, 2.3 dBi gain. • (Pour les variantes DK0429 seulement) ADTS552F: IC ID: 12097A - ADTS552F01 - antenne patch: 50 ohms, 6.662 dBi gain.

  • Page 114: Adtstouch-Er (English)

    La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Copyright 2014 Baker Hughes Company. 102 | ADTS542F/552F/553F/554F Instruction Manual–English...

  • Page 115: Brazil (Brasil)

    A.5 China (中华人民共和国) ADTS542F (DK429 only): CMIIT - 2015DJ5155 ADTS552F (DK429 only): CMIIT - 2015DJ6744 ADTS542F (DK467): CMIIT - 2018DJ2161 ADTS552F (DK467): CMIIT - 2018DJ2155...
  • Page 116 Appendix A. Compliance Statements Copyright 2014 Baker Hughes Company. 104 | ADTS542F/552F/553F/554F Instruction Manual–English...
  • Page 118 Office Locations https://druck.com/contact Services and Support Locations https://druck.com/service Copyright 2014 Baker Hughes Company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third- party product and company names are trademarks of their respective holders.
