- Page 1 ADTS 542F/552F/553F/554F Air Data Test Set Safety and Installation Guide Druck.com...
-
Page 3: Markings And Symbols
The Bluetooth® wireless technology word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Druck is under license. Other trademarks and trade names are those of their respective owners. For the list of Druck approved service centers, go to: Druck.com... - Page 4 The ADTS must, at all times, be connected to the supply protective earth/ground. The power supply cable and connector must be correctly rated for the power supply. Only use power cables supplied by Druck specifically for the ADTS. European Color US Color...
- Page 5 Connector (4) allows connection between the base unit and the ADTS Touch using a 5 metre or 18 metre umbilical cable. Note: Only use cables that have been supplied by or purchased from Druck. Copyright 2014 Baker Hughes Company. English–ADTS Safety and Installation Guide | 3...
-
Page 6: Replacing The Battery
2.1 Replacing the Battery Figure 4: ADTS Touch Battery Compartment Note: Only use batteries that have been supplied by or purchased from Druck. Prior to replacing the battery, switch the ADTS Touch off. If the ADTS Touch is connected to the umbilical cable or Docking connector, disconnect prior to removing the battery cover plate. -
Page 7: Battery Care And Maintenance
Note: The battery does not necessarily need to be new or re-charged. The ADTS Touch will function safely and correctly with a flat battery when the umbilical cable or dock charging supply is connected. Refit the battery compartment cover plate and tighten the two thumbscrews (5). The cover must be fitted correctly to maintain protection afforded. - Page 8 • Using a universal power supply unit connected to the ADTS Touch using an adapter: Figure 5: Universal Power Supply Unit and Adapter The ADTS Touch universal power supply and the desktop charger are both rated for indoor use only. Copyright 2014 Baker Hughes Company.

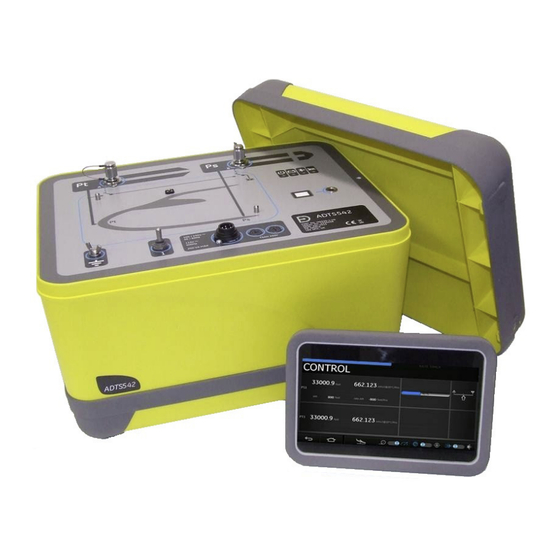

- Page 9 3. ADTS5xxF Figure 6: ADTS542F Front Panel Note: See Figure 8 for other variants. 3.1 Power-Up Test (see Figure 6) Fit “Pitot” (Pt) (1) and “Static” (Ps) (2) port blanks. Ensure that the test set is connected to an external power supply and the supply is switched Use the On/Standby Switch (3) on the front of the test set to switch the test set on.
- Page 10 In standby-mode, this LED will be off. If the self test fails, or for any other reason the test set is considered to be unserviceable, contact Druck and return the test set to the Druck or Druck approved service center. Copyright 2014 Baker Hughes Company.
-
Page 11: Pneumatic Connections
Pipe Thread ISO 228 - G 1/8 B 3/8 - 24 UNJF - 3A Thread 7/16 - 20 UNJF - 3A Thread 9/16 - 18 UNJF - 3A Thread Mating female parts are available from Druck. 3.4 Cleaning CAUTION Do not use solvents to clean this equipment. -
Page 12: Specification
Clean the external surfaces of the unit using lint-free cloth and a soft brush. Remove stubborn dirt using a damp cloth and mild detergent and allow to dry. Clean the electrical connector using a soft brush. Remove stubborn dirt using a damp cloth and mild detergent and allow to dry. - Page 13 4.2 Dimensions WARNING The ADTS can be moved by use of the handle and wheels. if the ADTS is to be lifted, it must be lifted by at least two people. ADTS5xxF Weight ADTS542F: 14kg (31lb) (without battery, estimated as 20kg (44lb) with battery) ADTS552F: 22kg (48.5lb) ADTS553F: 23.5kg (52lb)
-
Page 14: Product Labeling
PART No: ADTS542F-*****-**-**** PART No: ADTSTOUCH SERIAL No: ******** SERIAL No: ******** DOM: Mmm-YYYY DOM: Mmm-YYYY DRUCK LIMITED DRUCK LIMITED LE6 0FH, UK LE6 0FH, UK Figure 9: Product Labels Copyright 2014 Baker Hughes Company. 12 | ADTS Safety and Installation Guide–English... -
Page 15: Office Locations
India Japan Toulouse Pune Tokyo +33 562 888 250 +91-2135-620421~425 +81 3 6894 1838 sensing.FR.cc@bakerhughes.com mcindia.inhouseservice@bakerhughes.com service.druck.jp@bakerhughes.com Abu Dhabi Leicester Billerica +971 2 4079381 +44 (0) 116 2317107 +1 (281) 542-3650 ...
