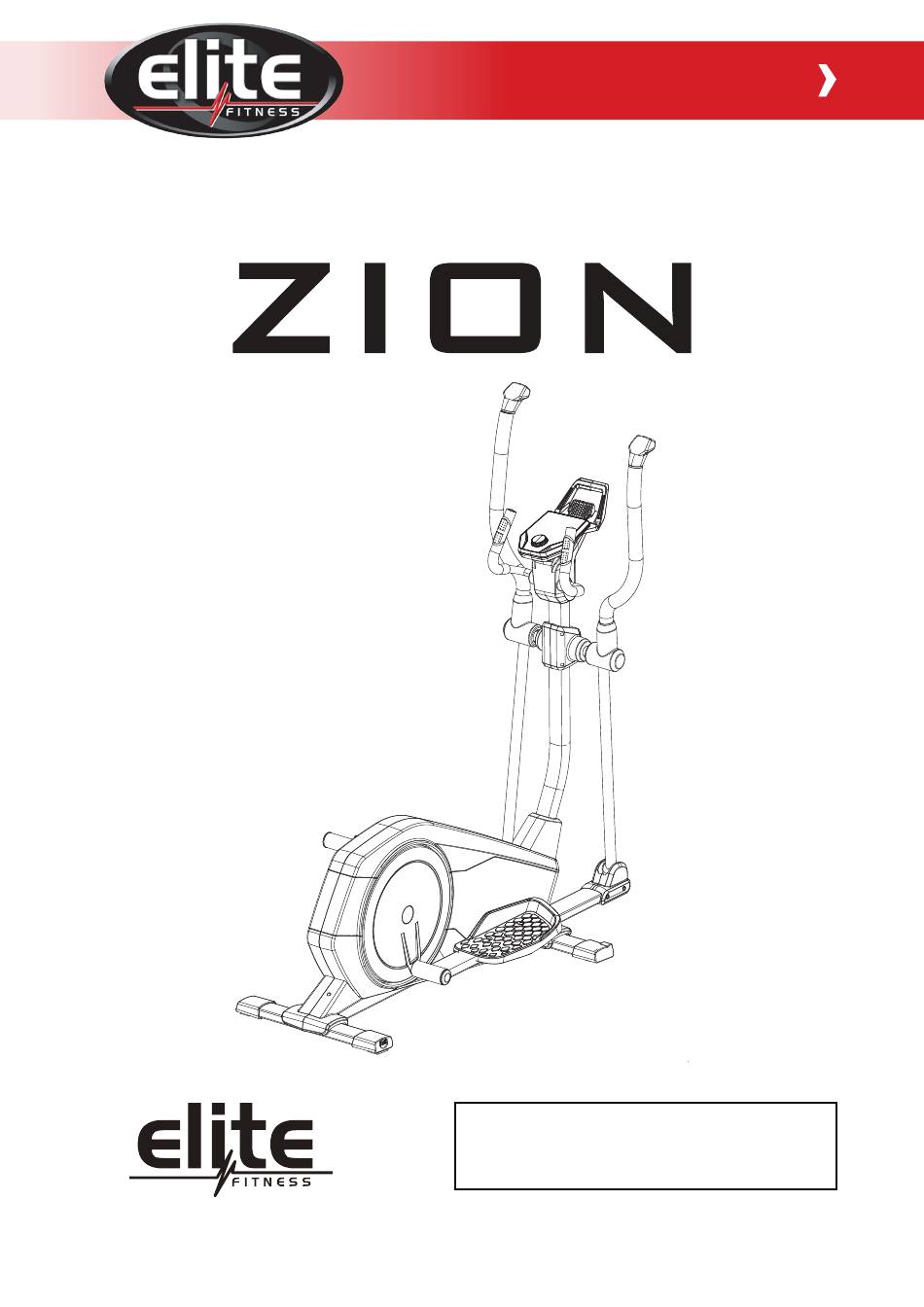

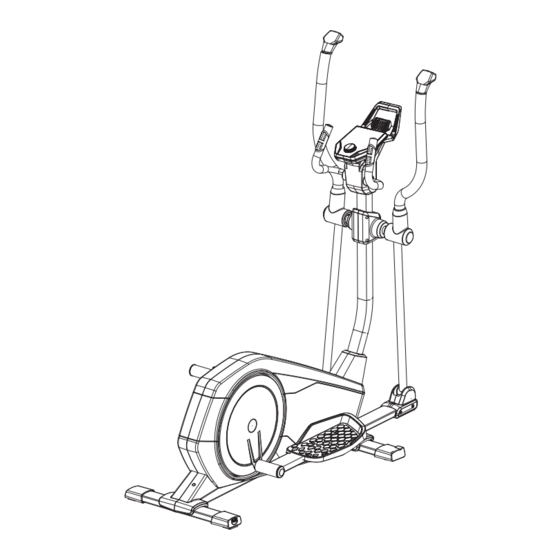

  • Page 1 ASSEMBLY MANUAL Record serial number Elite ZION Elliptical...

  • Page 2: Table Of Contents

    Thank you for purchasing the Elite ZION Ellip�cal. Elite ZION. SERVICE & WARRANTY For service and warranty assistance please visit: (09) 258 9067 Elite Fitness HQ 28 Morrin Road St Johns Auckland, New Zealand 0800 2 438 348 CONTENTS Maintenance Log...
  • Page 3 — — — — — CONSULT A PHYSICIAN IMMEDIATELY. — — — — — — — Do not use strong solvents for cleaning, and only use the tools supplied, or suitable ones of — — ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...
  • Page 4 PRODUCT SPECIFICATIONS User Weight Capacity: 130 kg Dimensions: 169 x 60 x 132 cm Shipping Weight: 63.8 kg Net Weight: 58 kg 2 x AA ba�eries...

  • Page 5: Check List

    CHECK LIST TOOLS REQUIRED (NOT INCLUDED) DISTANCE 1 mtr ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...

  • Page 6: Parts List

    PARTS LIST S tck . M8 x5 5 M8 x4 5 M8 x4 0 M7 x3 0 M8 x2 5 M8 x5 0 ø 7 x1 2 ø 8 x1 9 ø 8 6x M8 x2 0 ø 1 7 , 5 x2 5 ø...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 1 M 8 x4 5 = 2 5 N m Ø 8 x1 9 STEP 2 M 8 x2 5 Ø 8 x2 5 Ø 1 7 x2 2 Ø 8 ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 3 C/ D M 6 x5 0 Ø 6 STEP 4 A/ D M 8 x2 0 = 2 5 N m Ø 8...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 5 Ø 8 Ø 6 M 8 x2 5 STEP 6 A/ C 3 x1 6 3 x3 0 M5 x1 6 ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 7 STEP 8 Ø 1 7 x2 5 M 8 x2 0 Ø 8 x Ø 8 , 5 x2 5 M 8 x5 5 Ø 8 x1 9...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 9 A/ C 3 x2 0 M5 x1 2 STEP 10 M8 x4 0 8 x1 9 ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 11 A/ C M5 x1 2 3 x1 6...
  • Page 13 ASSEMBLY INSTRUCTIONS HANDLING 5‘‘ 10‘‘ 15‘‘ START ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...
  • Page 14 ASSEMBLY INSTRUCTIONS HANDLING BATTERY CHANGE A weak or an ex�nguished computer display makes a ba�ery change necessary. The computer is equipped with two ba�eries. Perform the ba�ery change as described below: Remove the lid of the ba�ery compartment and replace the bat- •...
  • Page 15 ASSEMBLY INSTRUCTIONS CONGRATULATIONS Assembly of your Elite ZION Ellip�cal is now complete! Be sure to fully inspect your machine before using it for the first �me. Failure to visually check and test the assembly of your ellip�cal before use can cause damage to the ellip�cal, serious injury to users and bystanders and can also...

  • Page 16: Exploded Drawing

    EXPLODED DRAWING...

  • Page 17: Display Console

    PLEASE NOTE: If the machine is not intended to be used for any period longer than 4 weeks, please remove the ba�eries from the console to avoid any corroding and a poten�al damage. ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...
  • Page 18 DISPLAY CONSOLE Main Menu User Selec�on Machine Guest Individually Adding Settings Users Set Users New Users This menu is primarily for selec�on of the user on whose account the Training Session is to take place. Machine Settings: Individually Set Users: With this you can change the You can set up to 4 individually machine se�ngs: language,...
  • Page 19 2 sources of measurement: Hand Pulse or Chest Strap. The input and connec�ons are located on the back of the display. The chest strap is recommended for Heart Rate Oriented Programs (HRC). NOT INCLUDED. ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...

  • Page 20: Care And Maintenance

    CARE AND MAINTENANCE IMPORTANT INFORMATION Cleaning prevent unnecessary corrosion stains and damage to the structural components from sweat and Pivot points Joins in frame...

  • Page 21: Maintenance Log

    MAINTENANCE LOG SERVICE DATE HOURS DISTANCE COMMENTS 01/06 16.5km none ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...

  • Page 22: Limited Warranty

    HOME USE — — The following conditions are not under warranty range: The damage due to incorrect adjustment of the machine; The Elliptical should not be: Repair and Maintenance Service Please contact our Elite Fitness Service Department at or visit...

  • Page 23: Warm-Up Exercise

    WARM-UP EXERCISE — Keep your knees slightly bent and slowly lean forward, back and shoulders relaxed, reaching — — Keeping your legs straight and the heel on the ground, lean — — ELITE ZION ELLIPTICAL ASSEMBLY MANUAL...

  • Page 24: Training Stages

    TRAINING STAGES Note: Contact heart rate may provide inaccurate readings and is designed only as a guide...
  • Page 25 @EliteFitnessNZ @EliteFitnessTV...
