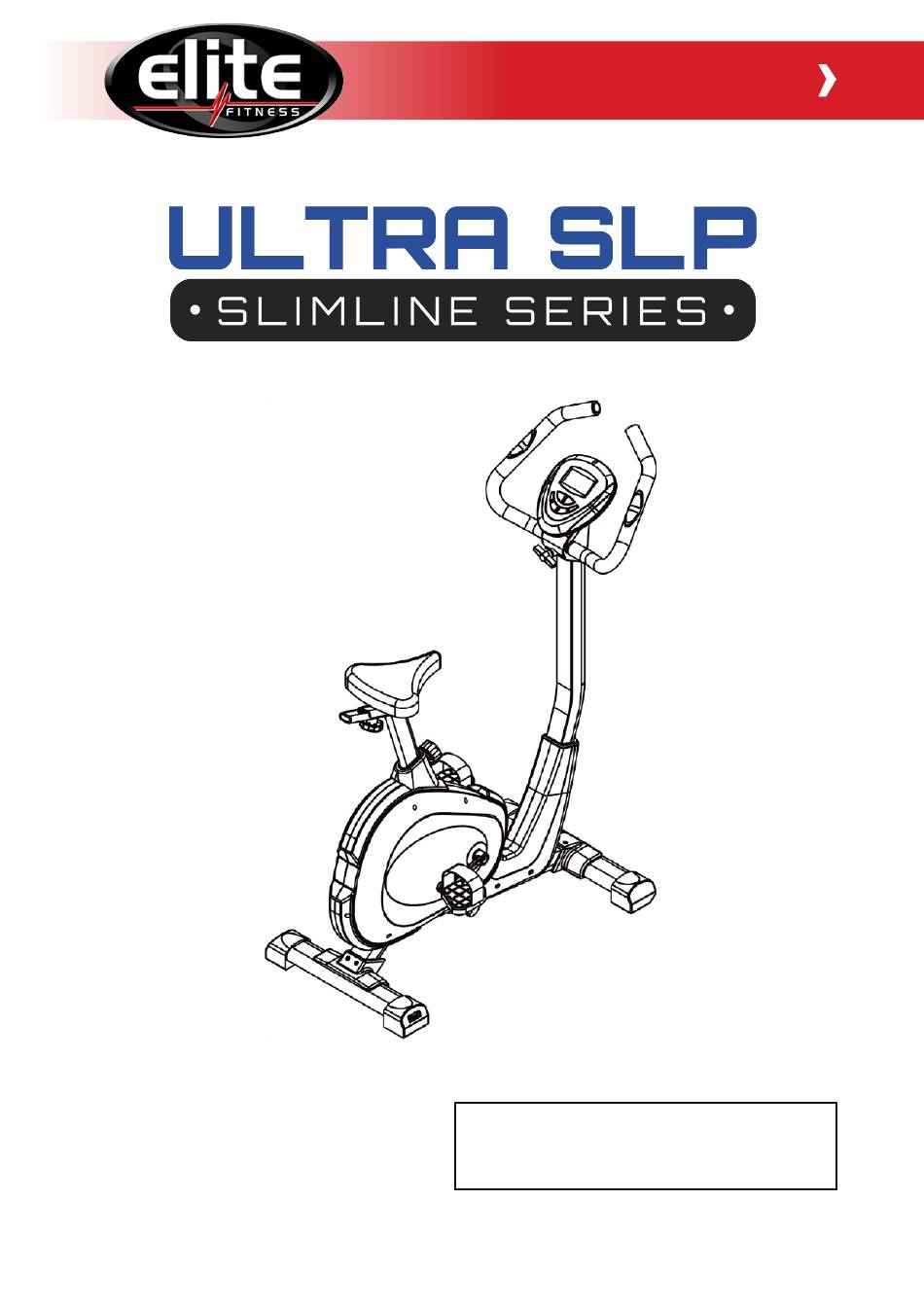

- Page 1 ASSEMBLY MANUAL Record serial number Elite Ultra SLP Exercycle...
-
Page 2: Table Of Contents
Thank you for purchasing the Elite Ultra SLP Exercycle. For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of fitness equipment. Our aim and vision is to provide you Elite™ branded products, tested to the highest standard for quality and biomechanics at the best possible price. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The following definition applied to the word “WARNING” when used in this manual: Used to call attention to POTENTIAL hazards that could result in personal injury. READ ALL INSTRUCTIONS BEFORE USING THE MACHINE This product has been designed for home use only. Product liability and warranty conditions will not be applicable to products being subjected to professional use or products being used in a commercial environment. -
Page 4: Product Specifications
WARNING: Before beginning any exercise programme, consult your physician. This is especially important for persons with pre-existing health problems. The seller assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular basis, check all screw connections and moving parts on proper fitting. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: ATTACH THE STABILISERS — Attach Rear Stabiliser (2) with 2 Adjustment End Caps (4) to the welded cross bar bracket of Main Frame (1) and fasten with 2 Flat Washers (41) and 2 Carriage Bolts (40). —... - Page 6 STEP 2: ATTACH THE SEAT & SEAT POST — Remove the pre-assembled Nylon Nuts (46) and Flat Washer (41) from back of the Seat (28). Fix the Seat (28) with the top seat Sliding Bracket (27) and fasten with Nylon Nut (46) and Flat Washer (41).
- Page 7 STEP 3: ATTACH THE FRONT POST — Remove the pre-assembled 6 Allen Head Bolts (57) and 2 Curve Washers (58) and 4 Flat Washers (41) from the Main Frame (1). — Connect the middle section Sensor Wire (61) of the Front Post (59) and Front Cover (38) with the lower section Sensor Wire (62) securely.
- Page 8 STEP 4: ATTACH HANDLEBAR & METER — Attach Handlebar (36) with 2 Hand Pulse points (35) and Foam Grip (75) to the top welded handlebar bracket on the Front Post (59). Fasten Rear Clamp Cover (31) with Bushing (30) and T-knob (29).
- Page 9 CONGRATULATIONS Assembly of your Elite Ultra SLP Exercycle is now complete! Be sure to fully inspect your machine before using it for the first time. WARNING: Failure to visually check and test the assembly of your exercycle before use can cause damage to the exercycle and injury.
-
Page 10: Seat Adjustment
SEAT ADJUSTMENT Having your bike seat adjusted to the right height is essential for a comfortable ride, efficient pedalling and avoiding injury. There are 2 adjustments located on the seat post. The first is a vertical height adjustment, the second is for horizontal seat position. Although there are many methods and opinions on the optimal saddle setting, the following is a quick and easy method to get started. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Before cleaning or carrying out any maintenance on your exercycle, ensure the power is turned off and the power cord removed from the plug socket. Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this ensure your machine is in full working order to ensure they continue to run smoothly and reliably, but it will save you service costs in the long run. -
Page 12: Maintenance Log
MAINTENANCE LOG Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated. -
Page 13: Limited Warranty
B) Used with an extension cord any longer than 1.5m. Repair and Maintenance Service Please contact our Elite Fitness Service Department at eliteservice@elitefitness.co.nz or visit www.elitefitness.co.nz for any service related issues or advice on preventative maintenance servicing procedures. -
Page 14: Warm-Up Exercise
WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —... -
Page 15: Training Stages
TRAINING STAGES Cardiovascular training plays an important part in maintaining a healthy heart and lung function, so it’s no surprise we should be paying attention to how quickly our heart beats during exercise. The chart above outlines a range of heart rate training zones determined by the individual’s age and workout goals to ensure you train safely and effectively. -
Page 16: Parts
PARTS We recommend 2 people assist in assembling this unit. Place all parts of the exercycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Before you start installation, inspect and prepare all parts and screws featured in this manual. - Page 17 PARTS PART DESCRIPTION Q’TY SKETCH 1, 5, 17 Carriage Bolt M8x55 1 Set 36, 75, 35 Flat Washer 18/8.5x1.5 1 Set 23, 27, 24 Screw M4x15 1 Set Rear Clamp Cover, Front 59, 61 1 Set Clamp Cover 34, 55 T Knob 28, 41, 46 Bushing...
-
Page 18: Parts List
PARTS LIST PART PART DESCRIPTION Q’TY DESCRIPTION Q’TY Main Frame Front Cover Rear Stabiliser Tube Screw for Hand Pulse Rear Stabiliser Cover Carriage Bolt M8x55 Adjustable End Cap Flat Washer 18/8.5x1.5 Front Stabiliser Tube Stop Nut Front Stabiliser Cover Flat Washer 20/10x2.0 Transport Wheel End Cap Adjustable Bolt M6x36 Pulley... -
Page 19: Exploded Drawing
EXPLODED DRAWING ELITE ULTRA SLP EXERCYCLE ASSEMBLY MANUAL... - Page 20 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2015 Elite Fitness Elite Fitness, 11 George Bourke Drive, Mt Wellington, Auckland, New Zealand, 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
