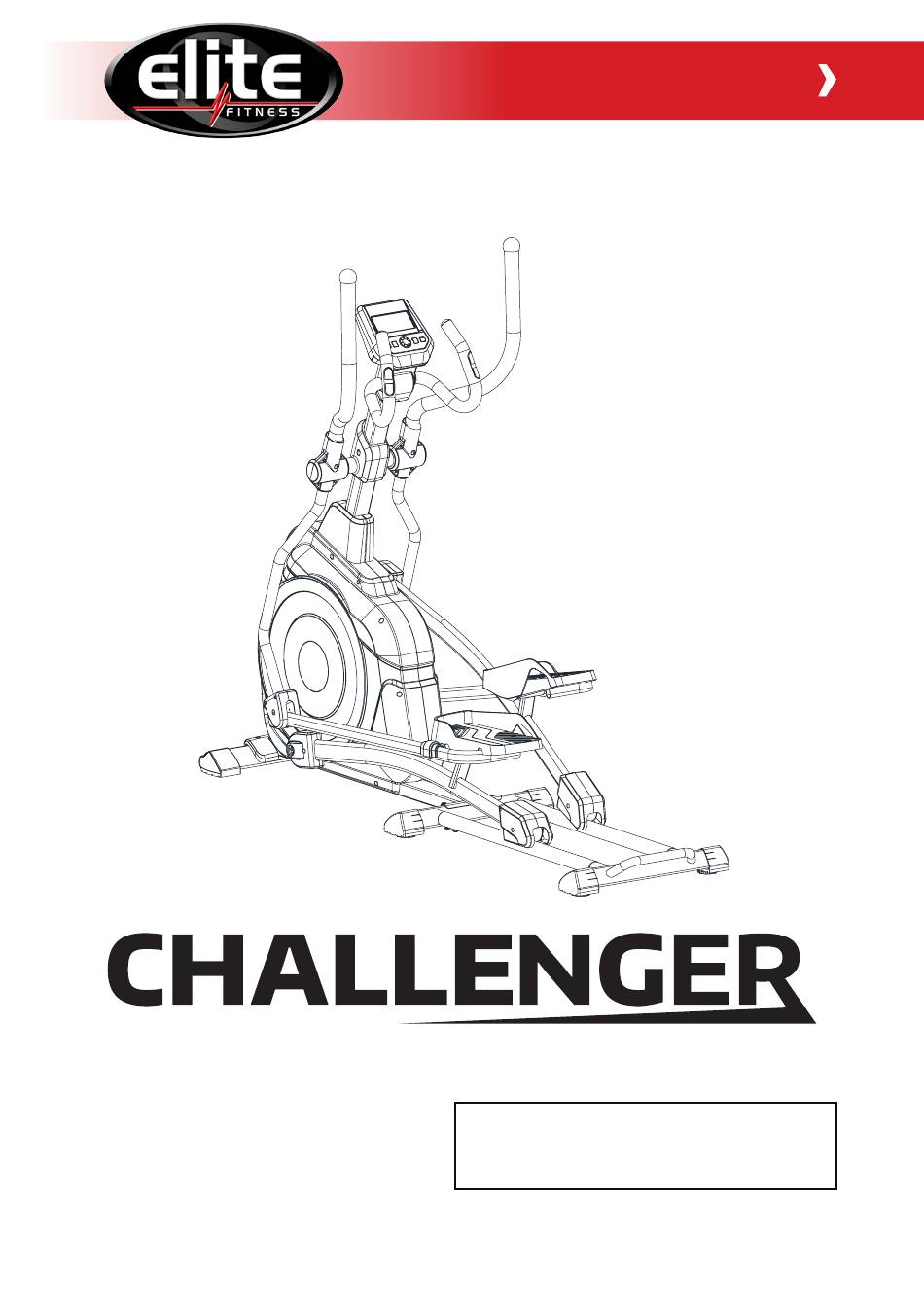

ASSEMBLY MANUAL
Record serial number
Elite Challenger Elliptical

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHALLENGER and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Fitness CHALLENGER

Summary of Contents for Elite Fitness CHALLENGER

  • Page 1 ASSEMBLY MANUAL Record serial number Elite Challenger Elliptical...

  • Page 2: Table Of Contents

    Please read through this manual to familiarise yourself with the operation of your new Elite Challenger Elliptical. Doing so will help to insure that you get the most out of your machine, enjoying a safe and effective workouts ahead.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The following definition applied to the word “WARNING” when used in this manual: Used to call attention to POTENTIAL hazards that could result in personal injury or loss of life. READ ALL INSTRUCTIONS BEFORE USING THE MACHINE This product has been designed for home use only.

  • Page 4: Product Specifications

    — Only carry out training work on the equipment when it is in perfect working order. Only use original spare parts in the event of a repair. — Do not use strong solvents for cleaning, and only use the tools supplied, or suitable ones of your own, for any repairs that may be required.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Fig 1.1 Fig 1.2 STEP 1 — Attach the Front Stabiliser (#124) to the Main Frame (#34) using 4 x M8x20 Bolts (#8) 4 x Flat Washers (#6) and 4 x Wave Washers (#7). — Attach the Front Stabiliser Cover (#125) to the Front Stabiliser (#124) and the Main Frame (#34) using 2 x M5x10 Screws (#14).
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 2 — Attach the Middle Stabiliser (#80) to the Main frame (#34) using 4 x M8x20 Bolts (#8) 4 x Flat Washers (#6) and 4 x Wave Washers (#7).
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 3 — Slide the Front Post Cover (#32) over the Front Post (#5). — Connect the Main Frame Cable to the Front Post Cable. — Connect the Front Post (#5) to the Main Frame (#34) using 4 x M8x20 Bolts (#8) 4 x Flat Washers (#6) and 4 x Wave Washers (#7).
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 4 Please note: Lubricate wheel axle and upper arm axle using a multi purpose grease. Refer to red circles on diagram above. — Attach the top end of the Right Pedal Arm (#51) to the Crank Arm Axle (#43) on the right hand side of the wheel on the Main Frame (#34) using 1 x M8x20 Bolt (#25), 1 x Wave Washer (#7), 1 x Flat Washer (#24) and 1 x Wave Washer (#36).
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 5 — Attach the top end of the Lower Handlebar R (#22) to the right hand side of the Axle Shaft (#122) on the Front Post (#5) using 1 x M8x20 Bolt (#25), 1 x Wave Washer (#7), 1 x Flat Washer (#24) and 1 x Wave Washer (#18).
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 6 — Attach the Right Pedal Platform (#65) to the Right Pedal Arm (#51) using a Connection Plate (#74), 1 x Wave Washer (#18), 3 x M8x16 Bolts (#13) and 3 x Flat Washers (#6).
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 7 — Attach the Inside Wheel Cover R (#52) to the right hand side wheel using 2 x Flat Washers (#6) and 2 x M8 Nylon Nuts (#20). — Attach the bottom end of the Lower Handlebar R (#22) to the front end of the Right Pedal Platform (#65) using a M8x55 Bolt (#52).
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 8 — Attach the Left Pedal Platform (#114) to the Left Pedal Arm (#113) using a Connection Plate (#74), 1 x Wave Washer (#18), 3 x M8x16 Bolts (#13) and 3 x Flat Washers (#6). — Attach the Inside Wheel Cover L (#118) to the left hand side wheel using 2 x Flat Washers (#6) and 2 x M8 Nylon Nuts (#20).
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 9 — Attach the Left (#121) and Right (#28) Upper Handlebars using 4 x Carriage Bolts (#31), 4 x Semi-circle Washers (#21) and 4 x Nylon Nuts (#20). Refer to the diagram above. ELITE ELLIPTICAL ASSEMBLY MANUAL...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 10 — Feed the Lower Pulse Wire through the Front Post (#5). — Attach the Handlebar (#9) to the Front Post (#5). Secure using 2 x M8x16 Bolts (#13) and 2 x Flat Washers (#6). Refer to the above diagram.
  • Page 15 ASSEMBLY INSTRUCTIONS STEP 11 — Connect Upper Computer Wire from Computer to the Front Post Wire. — Connect Upper Pulse Wire from Computer to the Lower Pulse Wire from Handlebar. — Attach Computer (#1) to the Front Post (#5) using 4 x M5x12 Screws (#132). Refer to the above diagram.
  • Page 16 ASSEMBLY INSTRUCTIONS STEP 12 — Attach the Inner Front Post Cover (#15) to the inner side of the Front Post (#5). Secure using 1 x M5x10 screw (#14). — Attach the Back Front Post Cover (#131) to the outer side of the Front Post (#5). Secure using 1 x M5x10 screw (#14) and 2 x ST2 screws (#62).
  • Page 17 ASSEMBLY INSTRUCTIONS STEP 13 — Attach the left covers (#119 & 120) to left Lower Handle Bar (#117) using 4 x ST2 screws (#27) and 2 x M5x10 screws (#14). — Attach the right covers (#19 & 26) to Right Lower Handle Bar (#22) using 4 x ST2 screws (#27) and 2 x M5x10 screws (#14).
  • Page 18 ASSEMBLY INSTRUCTIONS Fig 14.1 Fig. 14.2 STEP 14 — Attach the left Pedal (#115) to the Left Pedal Platform (#114) using 4 x M5x10 screws (#14). — Attach the Right Pedal (#64) to the Right Pedal Platform (#65) using 4 x M5x10 screws (#14). Refer to Fig 1 —...
  • Page 19 ASSEMBLY INSTRUCTIONS CONGRATULATIONS Assembly of your Elite Challenger Elliptical is now complete! Be sure to fully inspect your machine before using it for the first time. Failure to visually check and test and tech the assembly before use can cause damage to the Elite Elliptical and serious injury to users and bystanders and can also compromise the effectiveness of your exercise program.

  • Page 20: User Instructions

    USER INSTRUCTIONS CONTROL MODE MANUAL / PROGRAM /WATT/ PERSONAL/HRC PROGRAMS (P1-P12) USED DATA PULSE / HRC RPM / SPEED WATTS / CALORIES DISTANCE DISPLAY TIME MODE START / STOP RECOVERY RESET ENTER AND UP / DOWN : Alternates between WATTS/CALORIES and RPM/SPEED. 6 seconds per display. SCAN : 0-15-999 : 0.0-99.9 km/h...
  • Page 21 USER INSTRUCTIONS PRE-SET USER: Enter user data (sex / age/ height / weight) to accurately calculate workout feedback. SELECT User can choose different control modes to start their workout. See below is main description of each control mode. EXECUTE Execute selected control mode. PRE-SET TIME/DISTANCE/CALORIES/WATTS/HEART RATE Setting and selecting the users desired function value of the above, the function value display will...
  • Page 22 — WATTS CONSTANT: User can default WATTS value to their desired value between 10-350 watts by using the UP/ DOWN button. To fix WATTS constant value press START/STOP key. Use WATTS control mode to train yourself in different WATTS’s constant. —...

  • Page 23: Care And Maintenance

    CARE AND MAINTENANCE Before cleaning or carrying out any maintenance on your elliptical, ensure the power is turned off and the power cord removed from the plug socket. Prolong the life of your elliptical by performing periodic maintenance checks. Not only does this ensure your machine is in full working order to ensure they continue to run smoothly and reliably, but it will save you service costs in the long run.

  • Page 24: Maintenance Log

    MAINTENANCE LOG Prolong the life of your elliptical by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated.

  • Page 25: Limited Warranty

    B) Used with an extension cord any longer than 1.5m. Repair and Maintenance Service Please contact our Elite Fitness Service Department at eliteservice@elitefitness.co.nz or visit www.elitefitness.co.nz for any service related issues or advice on preventative maintenance servicing procedures.

  • Page 26: Warm-Up Exercise

    WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —...

  • Page 27: Training Stages

    TRAINING STAGES Cardiovascular training plays an important part in maintaining a healthy heart and lung function, so it’s no surprise we should be paying attention to how quickly our heart beats during exercise. The chart above outlines a range of heart rate training zones determined by the individual’s age and workout goals to ensure you train safely and effectively.

  • Page 28: Parts List

    PARTS LIST We recommend 2 people assist in assembling this unit. Place all parts of the elliptical in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Before you start installation, inspect and prepare all parts and screws featured in this manual.
  • Page 29 PARTS LIST PART PART DESCRIPTION Q’TY DESCRIPTION Q’TY Cover ABS Flywheel HT200 Ф280 Nut Q235 M10*P1.25*10T Bearing gcr15 6300 Screw Q235 M8*55L Sleeve PA6 φ10 *6mm Magnet set Q235 Nut Q235 3/8”-26*10T Spring 65Mn φ1*φ8.5*48L Nut Q235 3/8”-26*10T Middle stabiliser Q235 Axle 45 3/8”-26*126L End cap ABS Left Pedal Arm Q235...

  • Page 30: Exploded Drawing

    EXPLODED DRAWING...

  • Page 31: Notes

    NOTES ELITE ELLIPTICAL ASSEMBLY MANUAL...
  • Page 32 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2015 Elite Fitness Elite Fitness, 11 George Bourke Drive, Mt Wellington, Auckland, New Zealand, 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
