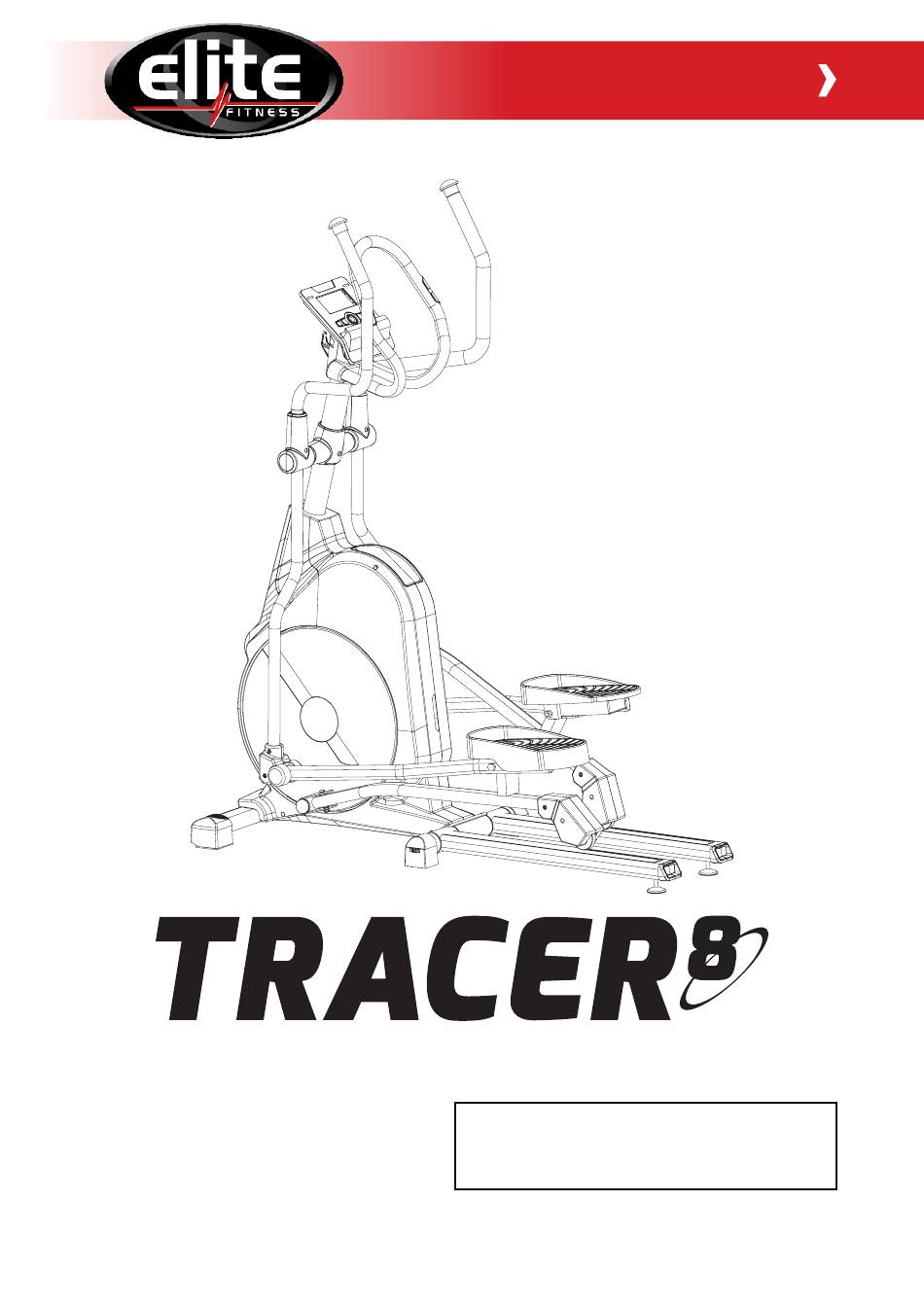

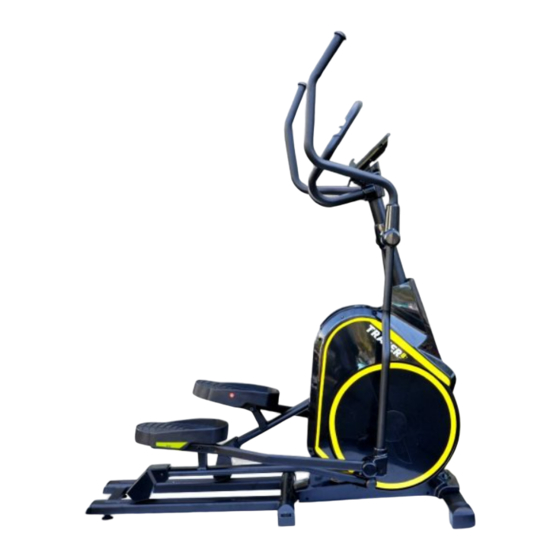

- Page 1 ASSEMBLY MANUAL Record serial number Elite Tracer 8 Elliptical...
-
Page 2: Table Of Contents
Thank you for purchasing the Elite Tracer 8 Elliptical. For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of fitness equipment. Our aim and vision is to provide you Elite™ branded products, tested to the highest standard for quality and biomechanics at the best possible price. -
Page 3: Important Safety Instructions
Please dispose of the packaging and any parts that have to be replaced subsequently (all parts for the unit) at suitable collecting points or containers with a view to saving the environment. ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL... -
Page 4: Product Specifications
— Not for therapeutic use. WARNING: Before beginning any exercise program, consult your physician. This is especially important for persons with pre-existing health problems. The seller assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SERVICE HINTS: The high quality standard of this product only will be kept if you on a regular basis check all screw-connections and moving parts on proper fitting. -
Page 5: Hardware List
HARDWARE LIST ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL... -
Page 6: Assembly Components
ASSEMBLY COMPONENTS We recommend 2 people assist in assembling this unit. Place all parts of the elliptical in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Before you start installation, inspect and prepare all parts and screws featured in this manual. -
Page 7: Assembly Instructions
— Attach the Front Stabiliser (#47) to the Main frame (#51) using 2 x M8 Bolts (#50) and 2 x Flat washers (#26). — Attach the Rear Stabiliser (#63) to the Main frame (#51) using 2 x M8 Bolts (#50) and 2 x Flat washers (#26). ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL... - Page 8 ASSEMBLY INSTRUCTIONS STEP 2 — Slide the Front Post Cover (#40) over the Front Post (#37). — Connect the Main Frame Cable (#110) to the Front Post Tube Cable (#39). — Connect the Front Post (#37) to the Main Frame (#51) using 4 x M8 Bolts (#38) and 4 x Flat Semi-circle wahsers (#22).
- Page 9 Washer (#29), 1 x Flat Washer (#26), 1 x Spring Washer (#25), 1 x M8 Bolt (#33) and an End Cap (#126). — Please note: Lubricate wheel axle and upper arm axle using a multi purpose grease. Refer to red circles on diagram above. ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 4 — Attach the Lower Handlebar L (#45) to the left hand side of the Front Post (#37) using 1 x Wave Washer (#29), 1 x Flat Washer (#26), 1 x Spring Washer (#25) and 1 x M8 Bolt (#33). —...
- Page 11 — Attach the Pedal Cover L (#100) to the Left Pedal Weld (#80) using 4 x Screws (#4). — Attach the Pedal Cover R (#102) to the Right Pedal Weld (#76) using 4 x Screws (#4). ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL...
- Page 12 ASSEMBLY INSTRUCTIONS STEP 6 — Connect Upper Computer Wire from Computer (#1) to the Front Post Wire (#37). — Connect Upper Pulse Wire from Computer (#1) to the Lower Pulse Wire from Handlebar.(#13) — Attach Computer (#1) and Handlebar (#13) to the Front Post ( #37). Refer to the above diagram.
- Page 13 STEP 7 — Attach the Left and Right Upper Handlebars (#18 & 20) using 4 x M8 Bolts (#23), 4 x Semi-circle Washers (#22) and 4 x Nylon Nuts (#21). Refer to the diagram above. ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL...
- Page 14 ASSEMBLY INSTRUCTIONS STEP 8 — Attach the left and right Upper Covers (# 30 & 35) using 4 x Screws (#4).
- Page 15 CONGRATULATIONS Assembly of your Elite Tracer 8 Elliptical is now complete! Be sure to fully inspect your machine before using it for the first time. Failure to visually check and test and tech the assembly before use can cause damage to the Elite Elliptical and serious injury to users and bystanders and can also compromise the effectiveness of your exercise program.
-
Page 16: User Instructions
USER INSTRUCTIONS CONTROL MODE MANUAL / PROGRAM / WATT/ PERSONAL / HRC USER DATA PROGRAMS (P1-P12) PULSE WATTS / CALORIES TIME DISTANCE DISPLAY RPM / SPEED START / STOP RECOVERY RESET ENTER AND UP / DOWN SCAN : Alternates between WATTS/CALORIES and RPM/SPEED. 6 seconds per display. : 0-15-999 SPEED : 0.0-99.9 km/h... - Page 17 User with up / down knob between 10 and 350 watts value set their own desired wattage . Press the Start / Stop button to confirm watt constant value. Using different watt control mode to exercise their own. ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL...
- Page 18 USER INSTRUCTIONS Individual settings for each single individual resistance levels, build your own program files through U1 ~ U4 is . Then the program will be automatically saved for future use . U0 and U1 ~ U4 can set the same , but the program will not be saved. —...
-
Page 19: Care And Maintenance
Using a thread-locking compound is encouraged but it’s still not a permanent solution, checking on a regular basis is the best bet to keep your machine running as best it possibly can. ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL... -
Page 20: Maintenance Log
MAINTENANCE LOG Prolong the life of your elliptical by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated. -
Page 21: Limited Warranty
B) Used with an extension cord any longer than 1.5m. Repair and Maintenance Service Please contact our Elite Fitness Service Department at eliteservice@elitefitness.co.nz or visit www.elitefitness.co.nz for any service related issues or advice on preventative maintenance servicing procedures. -
Page 22: Warm-Up Exercise
WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —... -
Page 23: Training Stages
Note: Contact heart rate may provide innaccurate readings and is designed only as a guide Example: 220 – 39 = 181 bpm 181 x 85% (0.85) = 154 bpm (Upper Training Limit) 181 x 65% (0.65) = 118 bpm (Lower Training Limit) ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL... -
Page 24: Parts List
PARTS LIST PART PART DESCRIPTION Q’TY DESCRIPTION Q’TY Bolt M8*P1.25*20L Computer 120L Handrail foam φ23*5T*1400L Computer fixed mount ABS Upper handle cover-rear ABS Screw M5*10L Lower Handlebar R Screw M5*12L Handle tube Q235 Screw ST2.9*20L Bolt M8*P1.25*16L 6 Cover ABS Front Post Tube Cable Hook ABS Front Post Cover... - Page 25 Water bottle cage ABS Screw M5*12L Flywheel φ280*32W*9KG End cap 40*80PP,RAL9023 Bolt M10*130L*S30 Magnet φ15*4t Screw M6*10L Screw M8*P1.25*60L*S20L Axle 3/8”-26*126L End cap PVC,RAL9023 Flat washer Ф6*Ф19*2T End cap 20*40PP,RAL9023 Nylon nut M10* Pedal PP ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL...
-
Page 26: Exploded Drawing
EXPLODED DRAWING... -
Page 27: Notes
NOTES ELITE TRACER 8 ELLIPTICAL ASSEMBLY MANUAL... - Page 28 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2015 Elite Fitness Elite Fitness, 11 George Bourke Drive, Mt Wellington, Auckland, New Zealand, 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
