ASSEMBLY MANUAL
Record serial number

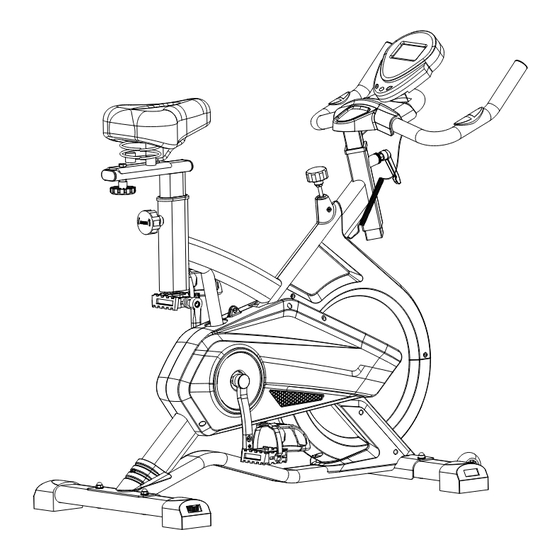

Elite Cobalt Spin bike

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cobalt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elite Fitness Cobalt

Summary of Contents for Elite Fitness Cobalt

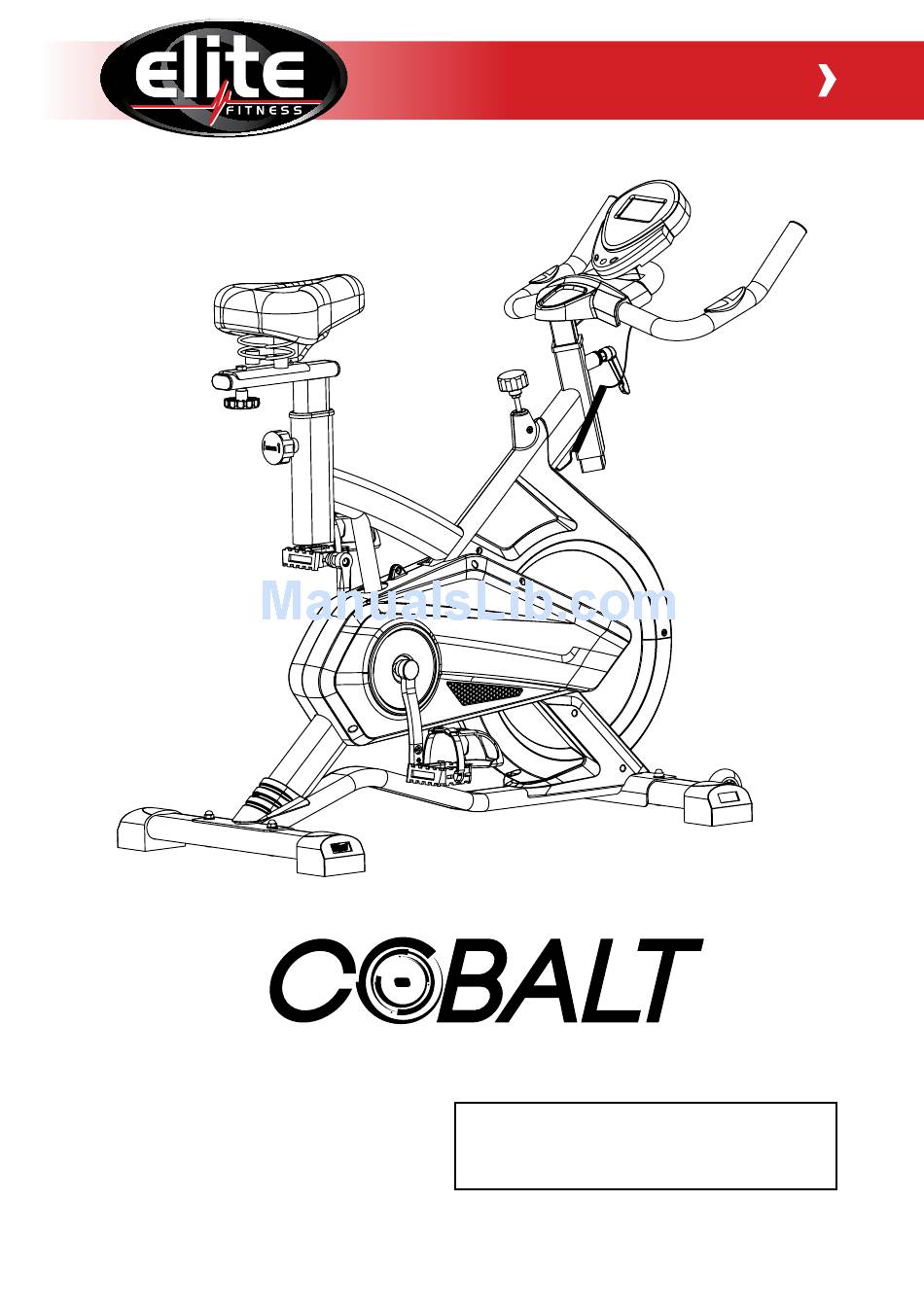

  • Page 1 ASSEMBLY MANUAL Record serial number Elite Cobalt Spin bike...

  • Page 2: Table Of Contents

    Please read through this manual to familiarise yourself with the operation of your new Elite Cobalt Spin bike. Doing so will help to insure that you get the most out of your machine, enjoying safe and effective workouts ahead.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The following definition applied to the word “WARNING” when used in this manual: Used to call attention to POTENTIAL hazards that could result in personal injury or loss of life. READ ALL INSTRUCTIONS BEFORE USING THE MACHINE This product has been designed for home use only.

  • Page 4: Product Specifications

    — Only carry out training work on the equipment when it is in perfect working order. Only use original spare parts in the event of a repair. — Do not use strong solvents for cleaning, and only use the tools supplied, or suitable ones of your own, for any repairs that may be required.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Secure both the Front Stabiliser (2) & Rear Stabiliser (3) to the Main Frame (1) using 2 x Carriage Bolts (34), 2 x Washers (35) & 2 x Nuts (36) & tighten as shown in the above diagram. ELITE SPIN BIKE ASSEMBLY MANUAL...
  • Page 6 STEP 2 Thread the Left Pedal (23) counterclockwise into the left Crank Arm (21). Thread the Right Pedal (24) clockwise into the right Crank Arm (22). NOTE: Right foot installation is clockwise, Left foot installation is anti-clockwise. It is a good idea to apply grease to the threads before attaching them to the crank, this will assure that they can be removed in the future.
  • Page 7 STEP 3 Place the Seat Post (5) into the Main Frame (1) and lock in position with the Adjustment Pop Pin (28), Attach the Seat Slider (8) to the Seat Post (5) and secure using the locking knob (27), Washer (47). ELITE SPIN BIKE ASSEMBLY MANUAL...
  • Page 8 STEP 4 Attach the Handlebar (7) to the Front Handlebar Post (6) using M8 screws (41). Insert the Front Handlebar Post (6) into the Main Frame (1). Use the Adjustment Lock-Pin (31) to secure to the main frame at the desired height. Place the Phone Case (10) on handlebar and press carefully down on it to secure.
  • Page 9 STEP 5 Attach the Monitor (40) onto the Handlebar (10) Post and connect the sensor wire (4). ELITE SPIN BIKE ASSEMBLY MANUAL...
  • Page 10 CONGRATULATIONS Assembly of your Elite Cobalt Spin bike is now complete! Be sure to fully inspect your machine before using it for the first time. Failure to visually check and test and tech the assembly before use can cause damage to the Elite Cobalt Spin bike and serious injury to users and bystanders and can also compromise the effectiveness of your exercise program.

  • Page 11: Setting Your Spin Bike Up

    SETTING YOUR SPIN BIKE UP Saddle Height Adjustment Adjusting the Seat Fore-and-Aft Position Adjusting the Seat Fore-and-Aft Position Having your bike seat adjusted to the right height is essential for a comfortable ride, Once you’ve adjusted seat height, it’s time efficient pedalling and avoiding injury.
  • Page 12 Handle Bar Adjustment Holding this position, have your helper place the end of the plumb line (line of string with The positioning of the handlebars can be nut/washer) on the front of your leg, at a point dependent on the bike design and adjustability just below the bony protrusion that’s beneath available.

  • Page 13: Care And Maintenance

    DO NOT over-tighten, only enough to stop any slipping of the belt drive system. If you require further assistance or advice contact the Elite Fitness Service Department or your nearest Elite Fitness Store.

  • Page 14: Maintenance Log

    MAINTENANCE LOG Prolong the life of your spin bike by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated.

  • Page 15: Limited Warranty

    B) Used with an extension cord any longer than 1.5m. Repair and Maintenance Service Please contact our Elite Fitness Service Department at eliteservice@elitefitness.co.nz or visit www.elitefitness.co.nz for any service related issues or advice on preventative maintenance servicing procedures.

  • Page 16: Warm-Up Exercise

    WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —...

  • Page 17: Training Stages

    TRAINING STAGES Cardiovascular training plays an important part in maintaining a healthy heart and lung function, so it’s no surprise we should be paying attention to how quickly our heart beats during exercise. The chart above outlines a range of heart rate training zones determined by the individual’s age and workout goals to ensure you train safely and effectively.

  • Page 18: Parts

    PARTS We recommend 2 people assist in assembling this unit. Place all parts of the spin bike in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Before you start installation, inspect and prepare all parts and screws featured in this manual.

  • Page 19: Parts List

    PARTS LIST Part Description Quantity Part Description Quantity Main Frame 40-80 Oval Strap Front Stabiliser Crank Plug Rear Stabiliser Locking Knob Sensor Wire Adjustable Pop Pin Seat Post Rearornate Cover Handlebar Post Brake Pod Handlebar Adjustable Lock-pin Seat Slider Pulse Sensor Seat Move Wheel Phone case...

  • Page 20: Exploded Drawing

    EXPLODED DRAWING...
  • Page 21 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2017 Elite Fitness Elite Fitness, 11 George Bourke Drive, Mt Wellington, Auckland, New Zealand, 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
