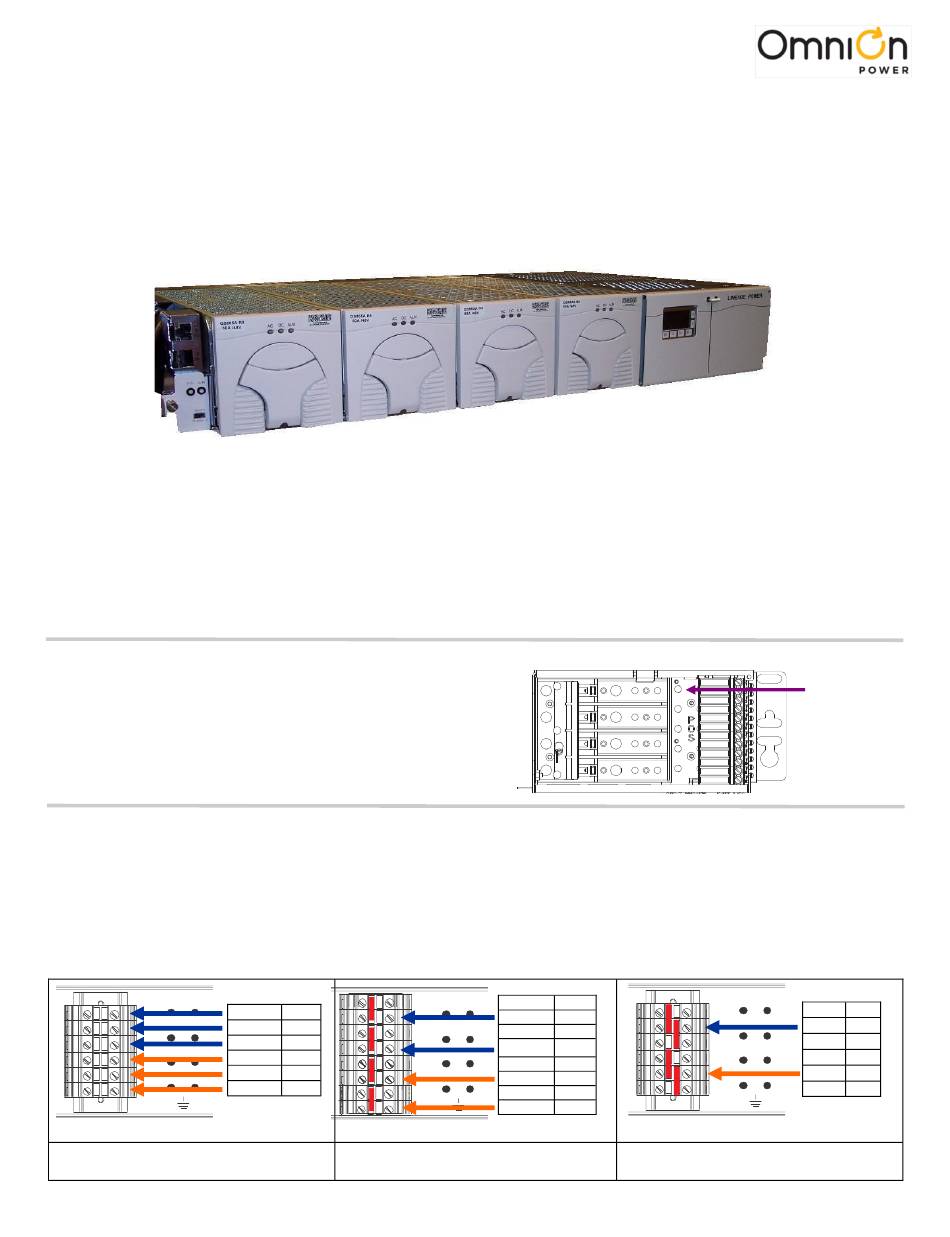

OmniOn Power CPS6000 Quick Start Manual

QUICK START GUIDE
CPS6000 Power System
Models:
19" Shelf, Rear AC, 3 Slot, CC109170981, 150024098
23" Shelf, Rear AC, 4 Slot, CC109170998
This CPS6000 model is available in a 19" or 23" shelf. Install the shelf with a minimum gap of 3/4 inch above and below
to allow proper airflow. Attach the CPS shelf to the frame using a minimum of four (two on each side) of the 12-24
screws included with the shelf
Tools required:
Cable crimpers
Heat shrink gun
Torque wrench (0-240 in-lb / 28 Nm)
Step # 1 - Connect DC Reference (CO)
Ground
Use a #10 double-hole lug on 5/8-inch center (Not provided)
for the DC Reference (CO) ground as shown in the figure
below. Torque connections to 37 in-lbs. Minimum 8 gage wire
is recommended.
Step # 2 - Connect AC Inputs
AC inputs terminate on the rear of the shelf. The AC feeds may be 110VAC or 208/220VAC depending on the rectifier
used. Inputs can feed one, two or three rectifiers, jumpers are provided. See diagram below.
Warning: Ensure AC power is OFF and use appropriate lock-out tag-out procedures before continuing with ac
connections.
Warning: When connecting to utility source, ensure all local and national wiring rules are being complied with.
Rect. 1
Rect. 2
Rect. 3
Rect. 1
Rect. 2
Rect. 3
One AC feed per rectifier
(Example: Three Rectifier shelf)
Page 1
© 2023 OmniOn Power Inc. All rights reserved.
Digital meter, +/- 0.02%
Screw Drivers (#1 and #2 Phillips)
L2/N
L2/N
L2/N
L1
L1
L1
Two rectifiers per AC feed
(Example: Four rectifier shelf)
CPS6000 Ser2 AC5-DC7-EDGE_QSG
5/16"and 3/8" nut drivers and sockets
Wire cutters and strippers
Rect. 1 L2/N
Rect. 3 L2/N
Rect. 2 L2/N
Rect. 4 L2/N
Rect. 1 L1
Rect. 3 L1
Rect. 2 L1
Rect. 4 L1
(Example: Three rectifier shelf)
DC Reference
(CO) Ground
Rect. 1 L2/N
Rect. 2 L2/N
Rect. 3 L2/N
Rect. 1 L1
Rect. 2 L1
Rect. 3 L1
Three rectifiers per AC feed
Rev. 1.0
