QUICK START GUIDE
CPL-SYSTEM -48V Power System

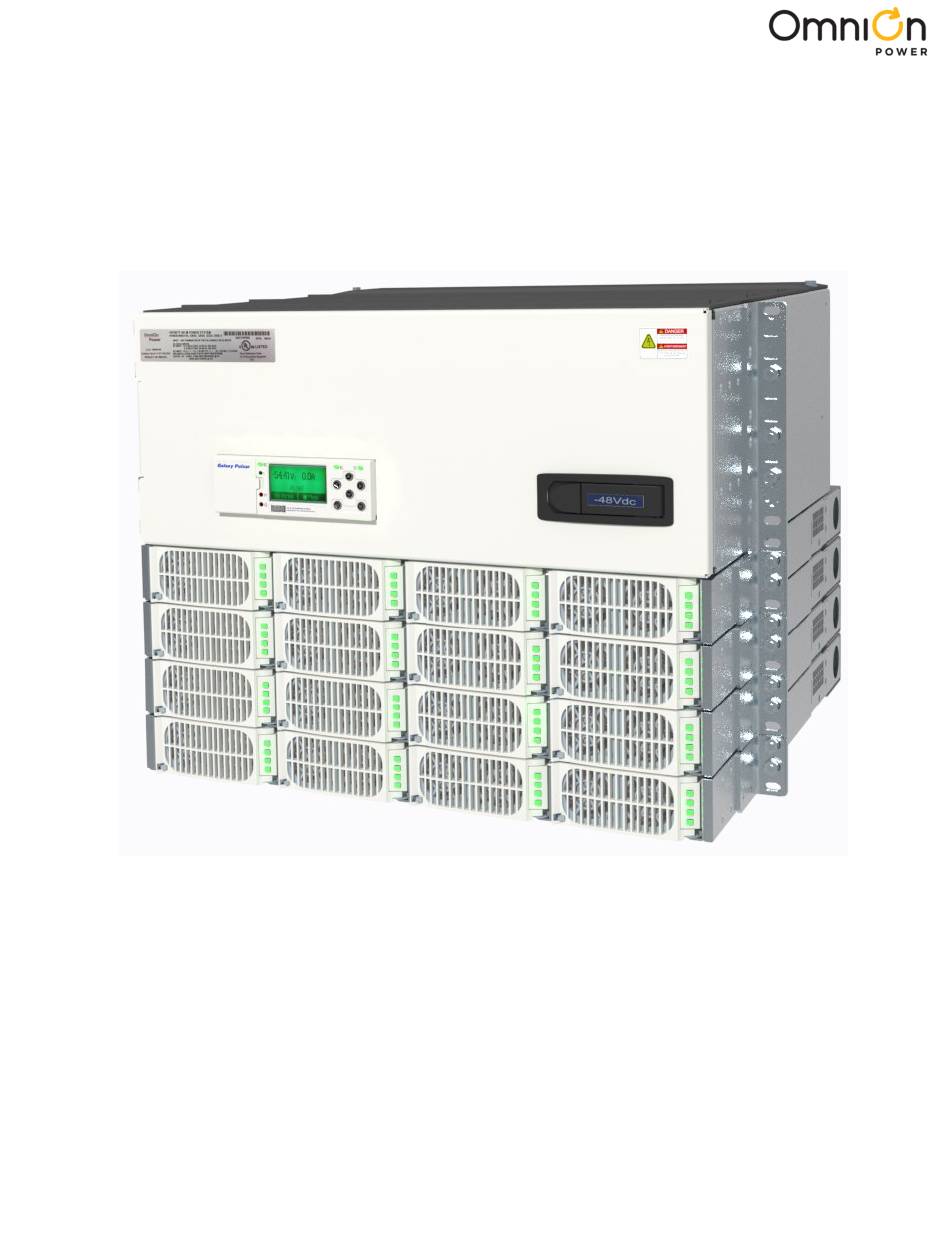

19" CPL-SYSTEM with J8314530 Distribution
Example configuration is shown below. There are other possible configurations.
•
SAVE THESE INSTRUCTIONS – This document
contains important safety and operating
instructions for the CP distribution system.
•
Equipment is intended for installation only in
restricted access areas.
•
Rules and Regulations - Follow all national and
local rules and regulations when making field
connections.
•
This equipment is not suitable for use in locations
where children are likely to be present.
Document – 8600484448P
Page 1
© 2024 OmniOn Power Inc. All rights reserved
CPL48-19-AC5H-PS16-DC1E
•
SAUVEGARDEZ CES INSTRUCTIONS – Ce
document contient des instructions de sécurité et
d'utilisation importantes pour le système de
distribution CP.
•
L'équipement est destiné à être installé
uniquement dans des zones à accès restreint.
•
Règles et règlements - Suivez toutes les règles et
réglementations nationales et locales lorsque
vous établissez des connexions sur le terrain.
•
Cet équipement ne convient pas à une utilisation
dans des endroits où des enfants sont
susceptibles d'être présents.
CPL External Distribution_QSG
Rev. 1.2
Advertisement
Table of Contents
Related Manuals for OmniOn Power CPL48-19-AC5H-PS16-DC1E
Summary of Contents for OmniOn Power CPL48-19-AC5H-PS16-DC1E
- Page 1 Cet équipement ne convient pas à une utilisation where children are likely to be present. dans des endroits où des enfants sont susceptibles d’être présents. Document – 8600484448P Page 1 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
-
Page 2: Safety Statements
For additional safety information, see the following documents: Ordering Code Description CPL-SYSTEMS-AD CPL-SYSTEMS Configuration drawing CC848815341 Galaxy Pulsar Plus Product Manual 8600482319P J5964805 Power Shelf Safety QSG Page 2 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2... - Page 3 Pour des informations de sécurité supplémentaires, consultez les documents suivants : Ordering Code Description CPL-SYSTEMS-AD CPL-SYSTEMS Configuration drawing CC848815341 Product Manual for Pulsar Plus Controller Family 8600482319P J5964805 Power Shelf Safety QSG Page 3 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
- Page 4 Personnel with electronic medical devices need to be aware that proximity to DC power and distribution systems, including batteries and cables, typically found in telecommunications utility rooms, can affect medical electronic devices, such as pacemakers. Effects decrease with distance. Page 4 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
- Page 5 électroniques médicaux, tels que les stimulateurs cardiaques. Les effets diminuent avec la distance. Page 5 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
-
Page 6: Customer Care
SE RÉFÉRER AUX INSTRUCTIONS POUR L'INSTALLATION ET LES CONSIGNES DE SÉCURITÉ. HAZARDOUS VOLTAGE TENSION DANGEREUSE Customer Care For any questions on this product or its configuration please contact our 24/7 technical support at +18775463243 Page 6 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2... -
Page 7: Equipment Identification
(1) Fully Assembled Power System Thread-knurling 12-24 Mounting Screws (CC408577571) 5/16 Hardware (Nuts, Flat Washers, Lock Washers) for battery connections 1/4-20 nuts for load connections Page 7 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2... - Page 8 Refer to CPL-SYSTEM-AD for ordering information. Optional Supplemental Distribution (not shown) Initial Distribution Initial Rectifier Shelf Optional Supplemental Rectifier Shelves (maximum of 4) Page 8 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
-
Page 9: Step 1 - Mount The System
Note: If connecting chassis ground to frame surface remove non-conductive frame coating and apply antioxidant for connection. 19” Single Voltage system Without adaptor bus bars 19” Single Voltage system With adaptor bus bar kit (exploded) Adaptor bus bar Page 9 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2... -
Page 10: Step 3 - Ac Input Connection
Information: AC Cable Cable size : 12AWG Length : 2.4m (8ft) Minimum Current rating : Maximum Voltage rating : 250V Minimum AC Cable Temperature Rating : 90°C Page 10 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2... - Page 11 (1600467317A) Rectifiers per feed: 2 AWG max: Strip Wire (mm): Terminal adaptor kit Torque In-lb. (Nm): 12 (1.4) AC5H Terminal block AC5H+ Terminal adaptor kit Page 11 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
- Page 12 - see illustration Multi-Pole Adapter Kits - 2 required per breaker CC848756916 850021775 850021955 Poles Lug Landings 1/4” x 5/8” 3/8” x 1” 3/8” x 1” Page 12 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
-
Page 13: Step 7 - Rectifier Installation
4. Correct insertion of the rectifier will automatically add the unit to the controllers’ inventory of units. To remove a rectifier: A. Open latch fully to release and remove. B. Enter Inventory section of controller and remove hardware to clear alarm. Page 13 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2... -
Page 14: Step 8 - Initial Startup
(ES771 required to monitor voltage). Bolt the Probe under the “–” terminal connector hardware; NOT under the connecting lug. Temperature Measurement Temperature and Voltage Measurement Page 14 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2... -
Page 15: Alarm Outputs
Alarm Input Cables CC848890153 5 ft EPO_Return CC848865980 15ft Hi ext. Temp. CC848817651 50 ft Hi ext. Temp._Return CC848817668 150 ft Low ext. Temp. Low ext. Temp._Return Page 15 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2... - Page 16 The main menu can be accessed using the Menu / Enter button. The basic menu structure for navigation is shown below. Front Panel Menu Structure - Overview Page 16 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
- Page 17 Factory Default password is “Administrator” and should be used for initial logon. It is highly recommended that one of the first activities should be to change the default password(s). Home Page – Web View Page 17 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
-
Page 18: Application Notes
Installation Environment - Install in Network Telecommunication Facilities, OSP, or where NEC applies. Battery return may be either Isolated DC return (DC-I) or Common DC return (DC-C). Ordering Information Please contact your OmniOn Power Sales Representative for pricing, availability and optional features. Power Supplies Ordering code... - Page 19 407998251 407998269 407998277 Bullet Style Battery Circuit Breakers Ordering Code Amperage Photo CC408574395 CC408574404 125 (2-pole) CC408574412 150 (2-pole) CC408574420 200 (2-pole) CC408645295 250A (3-pole) Page 19 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
- Page 20 Updated as per OmniOn template Added short circuit current rating, Derating information, added bullet breaker ordering 04-05-2024 information, Updated images in step-4, Updated product image Page 20 © 2024 OmniOn Power Inc. All rights reserved CPL External Distribution_QSG Rev. 1.2...
- Page 21 – in whole or in parts – is forbidden without document and makes no warranty with respect to prior written consent of OmniOn Power. This document and assumes no liability as a result of any use of does not convey license to any patent or any intellectual information in this document.
