QUICK START GUIDE

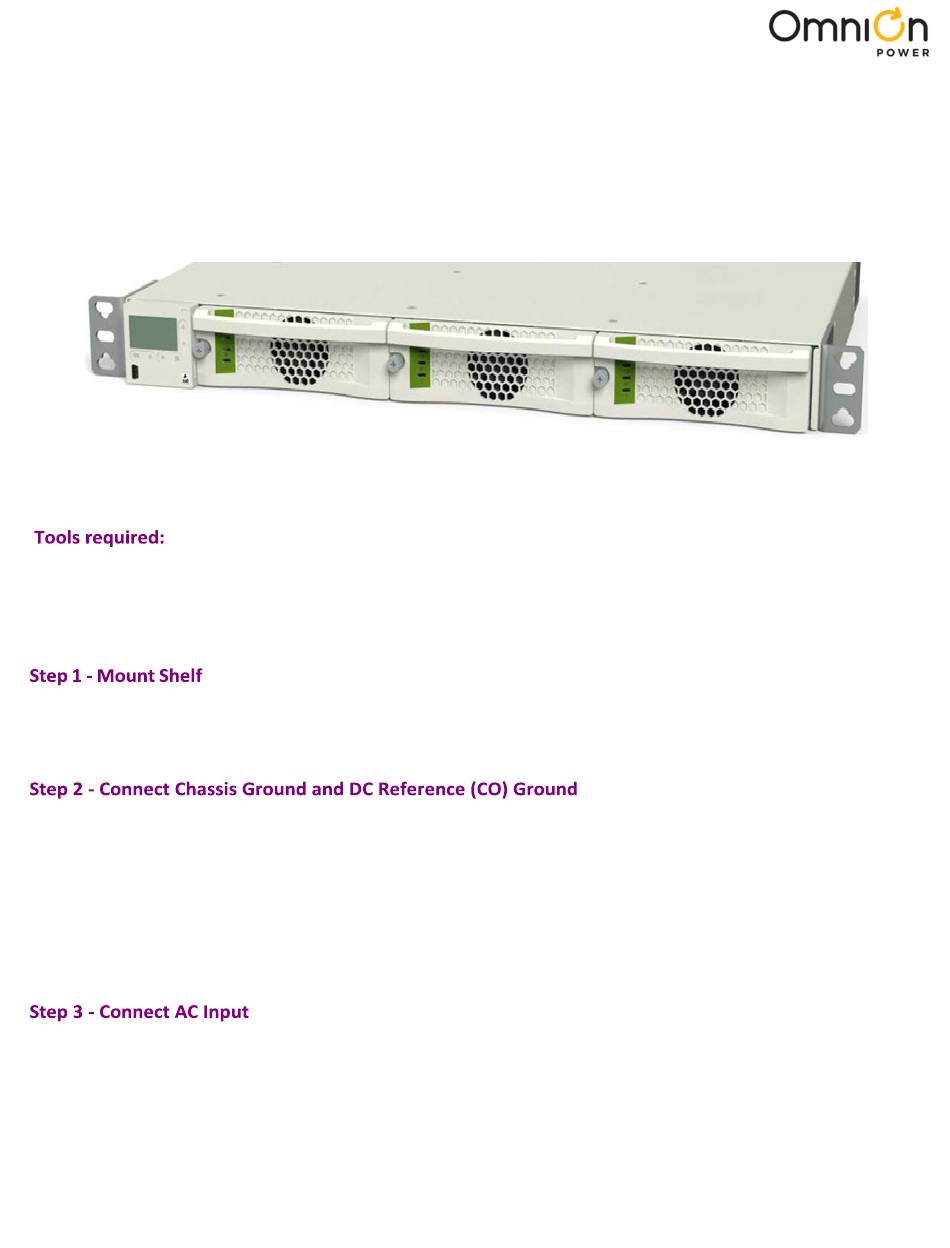

SPS -48V Slimline Power Shelf
Models: J2007003L011 - alpha suffixes per Slimline Power System Brochure
No vertical spacing is required, allow a minimum 2 inch clearance at back of shelf for rectifier airflow.
Refer to Slimline Power System Brochure for details and accessories.
•
Wire cutters and strippers
•
Cable crimpers
•
Torque wrench - 0-65 in-lb (0-10 Nm)
1. Reposition mounting ears as required - 1 screw each. Torque to 25 in-lb (2.8 Nm) - Phillips screwdriver.
2. Attach shelf to the frame using a minimum of four screws (two on each side) - 12-24 (provided). Torque to 35 in-lb
(4 Nm) - 5/16" socket.
Chassis Ground - 10 AWG min recommended
Lug Landing: #10 double-hole on 5/8-inch center (lug not provided)
Some applications may rely on frame mounting screws for chassis ground, omitting the chassis ground wire.
Torque 10-32 screws to 30 in-lb (3.4 Nm) - 5/16" socket.
DC Reference (CO) Ground - 10 AWG min recommended
Strip 0.6" (15 mm) and insert wire fully into POS RTN block.
L004 - C13 cords (1 or 2). Secure cord with the AC cord retainer (furnished).
L014 - wire to AC terminal blocks. Strip 0.3" (8 mm). Torque to 10 in-lb (1 Nm).
Danger: If blunt cut cords are used ensure AC power is OFF and use appropriate lock-out tag-out procedures before
continuing with ac connections. Follow all local and national wiring rules when connecting to ac mains.
Caution: Route AC cables to avoid contact with sharp or rough surfaces that may damage insulation and cause a short
circuit.
Page 1
2023 OmniOn Power. All rights reserved.
•
Sockets - 5/16", 7/16, etc.
•
Screwdrivers - Philips #1 and #2, Flat small
•
Wire cutters and strippers
SPS Shelf L011_QSG Rev.1.0
