OmniOn Power Infinity D Quick Start Manual

Quick Start Guide
Models:
CC109151288, 23", LVBD -48V
CC109148771, 23", LVBD, 24V
CC109149662, 19", LVBD, 24V
CC109150100, 19", LVBD, -48V
CC109151107, 23", LVBD, -48V
CC109151701, 23", LVBD, -48V
CC109151718, 23", +24V
CC109153648, 23", +24V
CC109161337, 23", -48V

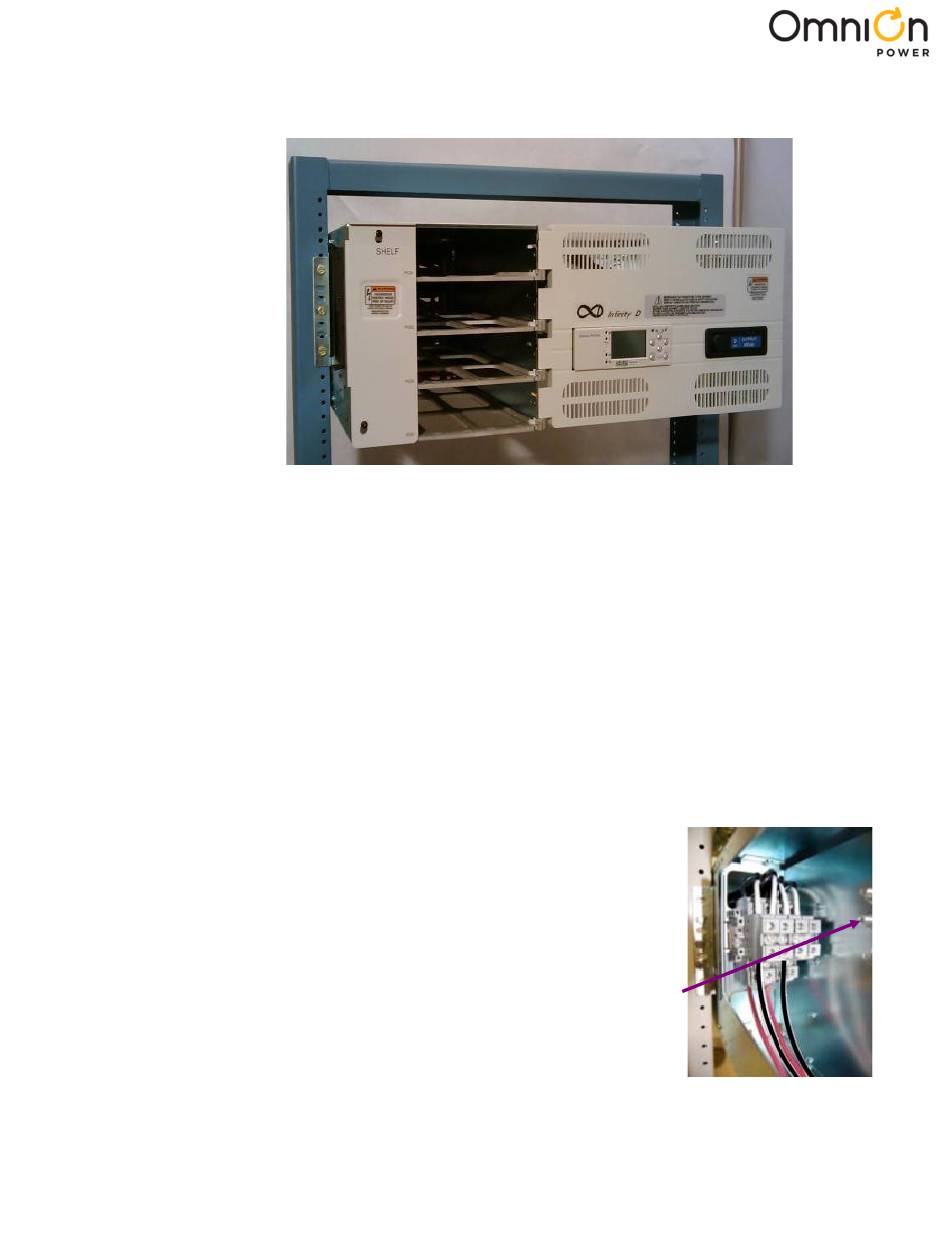

Install the shelf with a minimum gap of 3 inches behind the system to allow proper airflow. Attach the shelf to the
frame using a minimum of six (three on each side) 12-24 screws included with the shelf. The shelf, depending on how
it is ordered, can be mounted in a 19", 23" or 26" frame/rack.
Tools required:
•
Screwdrivers - Philips #1
•
Torque wrench - 0-65 in-lb
•
Sockets - 5/16", 7/16, etc.
Step # 1 - Connect AC inputs
The AC access panel is on the left side of the shelf. Each rectifier
position is factory configured for individual 208/240VAC inputs. Two
rectifier positions can be fed from one ac source by installing the
provided jumpers.
Danger: Disconnect all AC branch circuits prior to making ac
connections to the system. When connecting to utility source, ensure
compliance to all local and national wiring rules.
Caution: When routing AC ensure cables do not come in contact with
sharp or rough surfaces that may damage insulation and cause a short
circuit. Remove the two screws and cover to access the ac terminal
blocks. Attach conduits to the knockout and route ac inputs through
the conduit and knockouts.
Page 1
2023 OmniOn Power. All rights reserved.
Infinity D Rectifier shelf
•
Wire cutters and strippers
•
Cable crimpers
Infinity D Rectifier Shelf_QSG
AC terminal block.
Ground (PE)
Rev.2.2
