QUICK START GUIDE

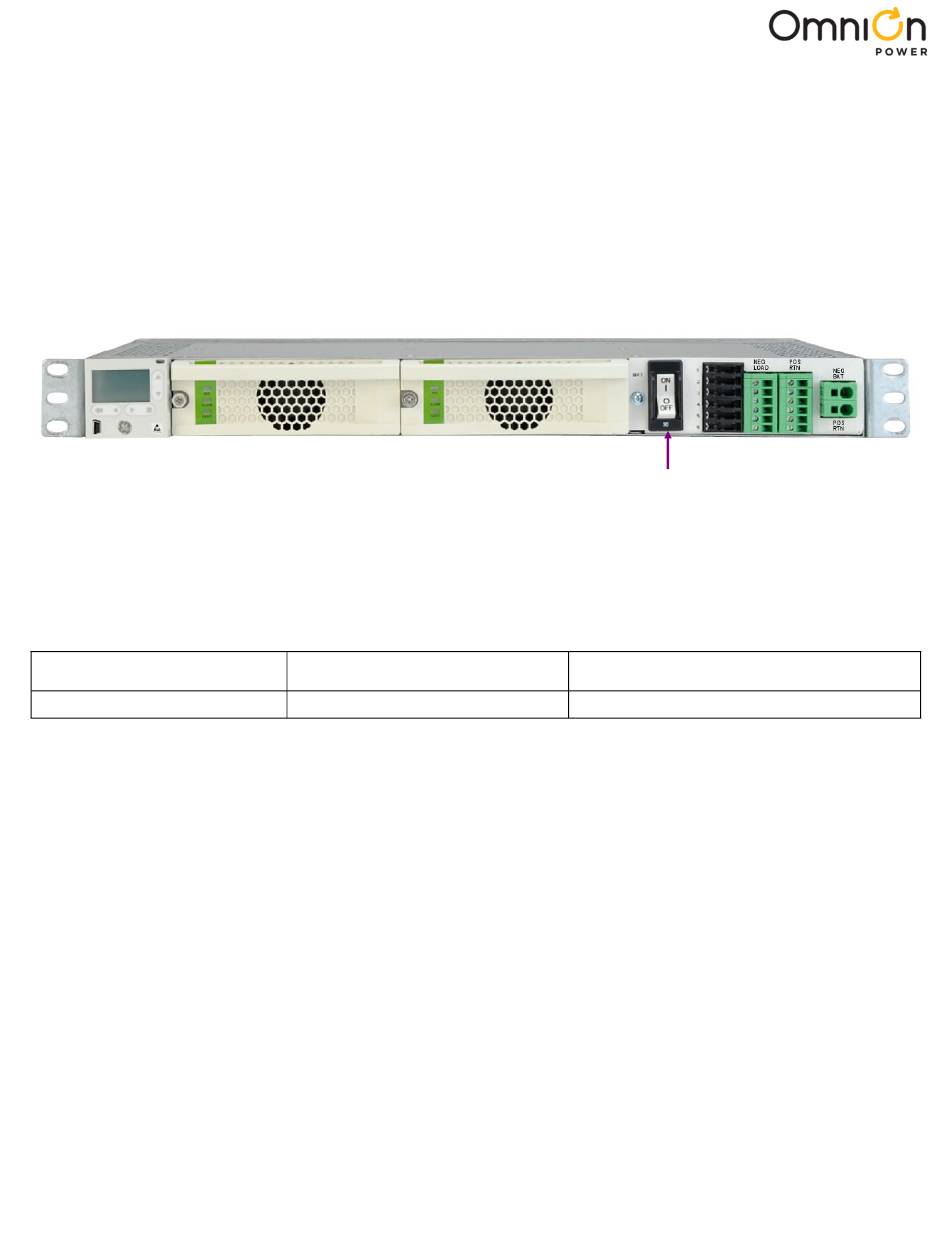

SPS -48V Slimline Power Shelf
Models: J2007003L002 – alpha suffixes per Slimline Power System Brochure
No vertical spacing is required, allow a minimum 2 inch clearance at back of shelf for rectifier airflow.
Refer to Slimline Power System Brochure for details and accessories.
Tools required:
•
Wire cutters and strippers
•
Cable crimpers
Step 1 – Mount Shelf
1. Reposition mounting ears as required - 1 screw each.
Torque to 25 in-lb (2.8 Nm) - Phillips screwdriver.
2. Attach shelf to the frame using a minimum of four screws (two on each side) - 12-24 (provided).
Torque to 35 in-lb (4 Nm) - 5/16" socket.
Step 2 – Connect Chassis Ground and DC Reference (CO) Ground
Lug Landings: #10 double-hole on 5/8-inch center (lugs not provided)
Some applications may rely on frame mounting screws for chassis ground, omitting the chassis ground wire.
Some applications may use the Chassis Ground strap, using a single wire for both chassis ground and DC reference
ground.
Minimum 10 AWG wire is recommended.
Torque 10-32 screws to 30 in-lb (3.4 Nm) - 5/16" socket.
Document – CC848904251
Page 1
© 2023 OmniOn Power Inc. All rights reserved.
•
Torque wrench - 0-65 in-lb
(0-10 Nm)
•
Sockets - 5/16", 7/16, etc.
Battery CB - some models
•
Screwdrivers - Philips #1 and #2, Flat
small
SPS Shelf L002_QSG Rev. 5.1
