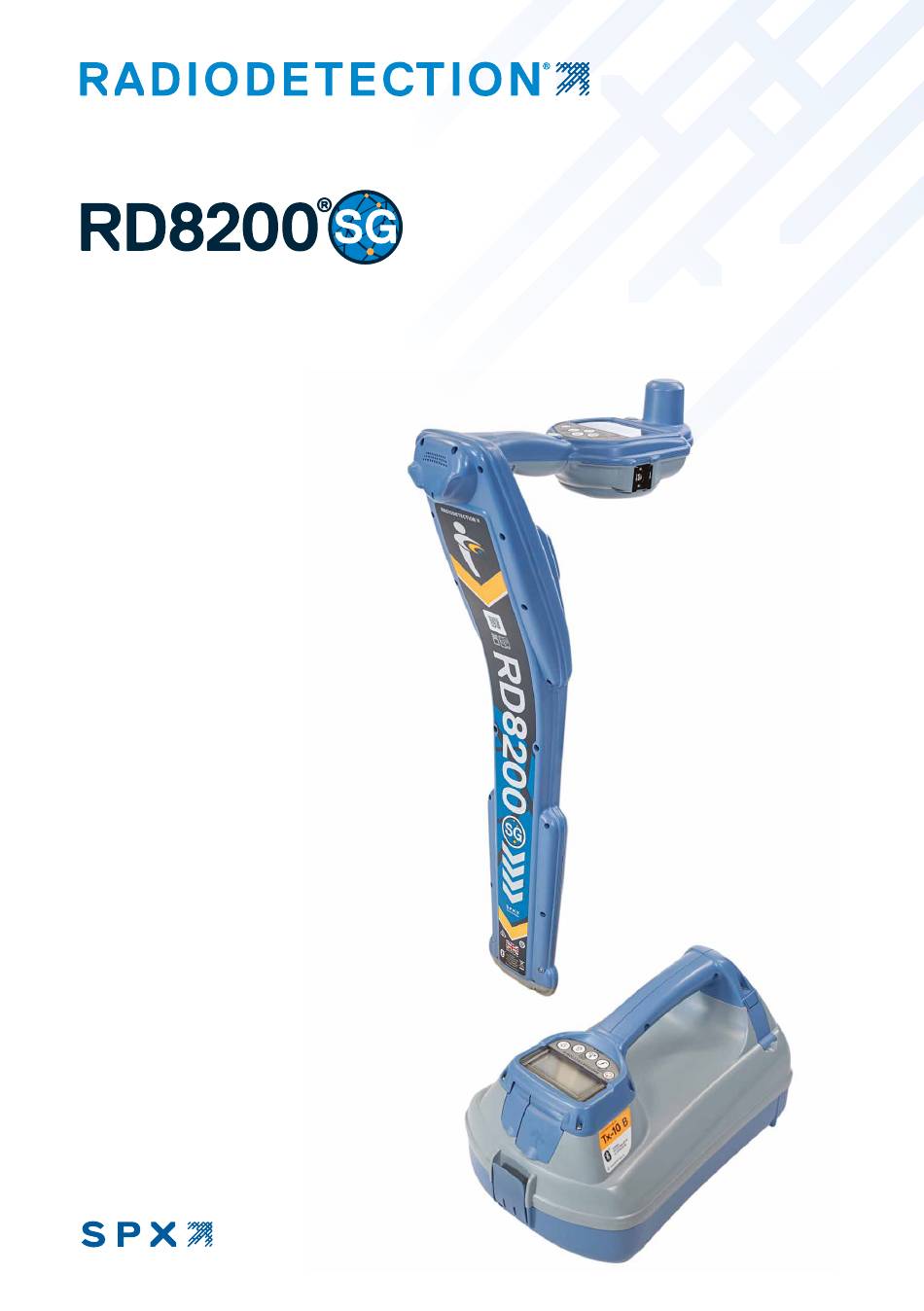

- Page 1 Multifunction precision cable and pipe locator User Guide Guía del usuario Leitfaden Gebruikershandleiding Guide d’utilisation 90/RD8200SG-UG-INT/02 T E C H N O L O G I E S...
- Page 2 Preface About this guide CAUTION: This guide provides a quick introduction to the RD8200 ® locator and Tx range of transmitters. It is intended to provide general advice and does not constitute professional training. It also contains important safety information and guidelines and as such should be ENGLISH read in its entirety before attempting to operate the RD8200SG locator and transmitter.
- Page 3 3 Year Extended Warranty WARNING! Direct connection to live conductors is POTENTIALLY LETHAL. Direct connections to live conductors should be attempted by fully qualified personnel only using the relevant products that allow connections to energized RD8200SG locators and transmitters are covered by a 1 year warranty as lines.
- Page 4 RD8200SG locator Locator features 1. GNSS antenna. 24. Battery level. 2. Cold shoe mount for mobile device 25. Sensitivity readout / Log number. bracket (fitted on both sides) . 26. Volume level. 3. Haptic (vibration) feedback. 27. Current Direction ™ arrows.
- Page 5 Tx-5 and Tx-10 transmitters Transmitter features 15. Clamp icon: Indicates when a Keypad. signal clamp or other accessory is LCD. connected. Removable accessory tray. 16. DC Power connected indicator. D-cell battery tray. 17. Induction mode indicator. Optional Lithium-Ion battery pack. 18.
-
Page 6: Before You Begin
Keypad actions and shortcuts 2. Lift the battery pack. Before you begin 3. Lift the accessory flap and press the retaining flap inwards. Switch the locator or transmitter on by pressing the key. Before you start using the Once powered up, the keys function as follows: RD8200SG, make sure you have the following: Locator keys... - Page 7 Pairing Bluetooth Modules Transmitter battery packs Charging the battery packs 1. Release clips then remove the WARNING! Only use charging accessory tray The RD8200SG is fitted with multiple 4. Select the RTK82SG-XXXXXX in equipment provided by Radiodetection. Bluetooth modules. You need to connect to Available devices.
- Page 8 Pairing Locator Bluetooth to Android Device Bluetooth error codes Please refer to the 'To navigate menus' 6. When asked for a passkey, enter 1234. If an error occurs when attempting to perform any Bluetooth command using the locator to the transmitter or the locator to a PC or paired device, the LCD will display a code to section on p.21 for assistance.
-
Page 9: Survey Measurements
Survey Measurements Obtaining RTK fix using a mobile app Attaching the phone bracket The RD8200SG locator is capable of recording survey To obtain RTK fix and 3. Type Project name Click on Settings. The RD8200SG is fitted measurements and sending them to an external device achieve survey grade and click OK. - Page 10 Start a survey NTRIP client setup: 4. Click ‘Test’ to ensure 5. The ‘Fix type’ field will 7. Once RTK float/fix has that you have entered display values such as been achieved you can 1. Click ‘Edit’ in the and obtaining the details correctly –...
-
Page 11: System Menu
Send data from PointMan to email System Menu 1. Once you have 3. Select the survey and 5. Type your email address The RD8200SG locator and transmitter BT, pair with external device, select BT completed the survey, select OK on the ‘Send’ and send the files. - Page 12 Transmitter menu options Locating with Passive The transmitter will then apply a discrete signal to the line, which you can trace Frequencies • VOL: Adjust the speaker volume from using the locator. This method provides the 0 (mute) to 3 (loudest). Passive frequency detection takes advantage best signal on an individual line and enables •...
- Page 13 For a list of the importers of the RD8200SG into Europe, please visit: https://www.radiodetection.com/en/european-importers Copyright © 2024 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX Technologies, Inc. RD8200SG, Power Filters, Peak+, eCert, StrikeAlert, SideStep, SideStepAuto, iLOC, Current Direction, RD Manager Online, Radiodetection, are either trademarks or registered trademarks of Radiodetection in the United States and / or other countries.
-
Page 14: Our Mission
Follow us on: © 2024 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX Technologies , Inc . Radiodetection is a trademark or registered trademark of Radiodetection in the United States and/or other countries. Due to a policy of continued development, we reserve the right to alter or amend any published specification without notice.
