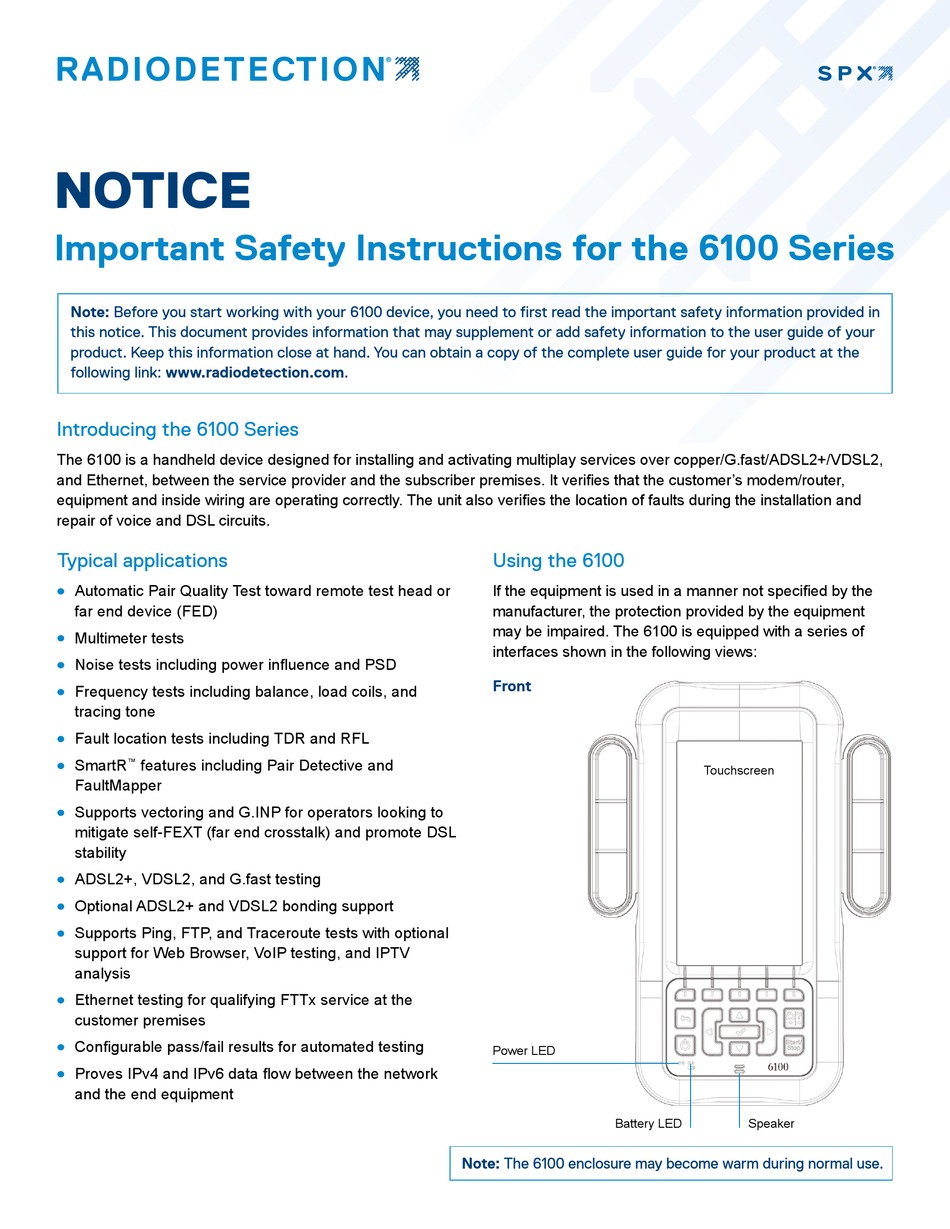

NOTICE
Important Safety Instructions for the 6100 Series
Note: Before you start working with your 6100 device, you need to first read the important safety information provided in
this notice. This document provides information that may supplement or add safety information to the user guide of your
product. Keep this information close at hand. You can obtain a copy of the complete user guide for your product at the
following link: www.radiodetection.com.
Introducing the 6100 Series
The 6100 is a handheld device designed for installing and activating multiplay services over copper/G.fast/ADSL2+/VDSL2,
and Ethernet, between the service provider and the subscriber premises. It verifies that the customer's modem/router,
equipment and inside wiring are operating correctly. The unit also verifies the location of faults during the installation and
repair of voice and DSL circuits.
Typical applications
Automatic Pair Quality Test toward remote test head or
l
far end device (FED)
Multimeter tests
l
Noise tests including power influence and PSD
l
Frequency tests including balance, load coils, and
l
tracing tone
Fault location tests including TDR and RFL
l
SmartR
features including Pair Detective and
™
l
FaultMapper
Supports vectoring and G.INP for operators looking to
l
mitigate self-FEXT (far end crosstalk) and promote DSL
stability
ADSL2+, VDSL2, and G.fast testing
l
Optional ADSL2+ and VDSL2 bonding support
l
Supports Ping, FTP, and Traceroute tests with optional
l
support for Web Browser, VoIP testing, and IPTV
analysis
Ethernet testing for qualifying FTTx service at the
l
customer premises
Configurable pass/fail results for automated testing
l
Proves IPv4 and IPv6 data flow between the network
l
and the end equipment
Using the 6100
If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment
may be impaired. The 6100 is equipped with a series of
interfaces shown in the following views:
Front
Power LED
Battery LED
Note: The 6100 enclosure may become warm during normal use.
Touchscreen
Speaker
Advertisement
Table of Contents
Related Manuals for SPX RADIODETECTION 6100 Series
Summary of Contents for SPX RADIODETECTION 6100 Series
- Page 1 NOTICE Important Safety Instructions for the 6100 Series Note: Before you start working with your 6100 device, you need to first read the important safety information provided in this notice. This document provides information that may supplement or add safety information to the user guide of your product.
- Page 2 Cable Connections Rear The graphics below show the connections on the 6100 products. Ethernet / 1GigE WAN port Ethernet / 1GigE LAN port* DSL port* Stylus Primary Tip/A and Ring/B Secondary Tip/A and connectors for DSL and Ground Ring/B connectors for DSL copper testing Terminal and 4-wire copper testing...
- Page 3 Getting started with the 6100 Series Note: You can also select an option directly by pressing the function keys corresponding to the on-screen buttons Turning the Unit On/Off at the bottom of the screen. Alternatively, any reference When you turn the unit on, you may use it immediately to pushing buttons on the keypad can be replaced in most under normal conditions.
- Page 4 IMPORTANT CAUTION When you see the symbol on your unit, make When using the 6100 while connected to the AC/DC sure that you refer to the instructions provided in your adapter/charger, make sure you do not position the user documentation. Ensure that you understand and equipment so that it is difficult to disconnect the adapter/ meet the required conditions before using your product.
- Page 5 Other Safety Symbols on Your Unit Note: Using the unit while charging can affect the One or more of the following symbols may also appear on measurement performance. the 6100 or its power supply: Depending on the grounding, AC power voltage level in Direct current your area, and type of charger used, charging the unit may trigger a high voltage warning buzzer.
- Page 6 Copyright © 2020 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX Corporation. Radiodetection and 6100 are trademarks of Radiodetection Ltd. Due to a policy of continued development, we reserve the right to alter or amend any published specification without notice. This document may not be copied, reproduced, transmitted, modified or used, in whole or in part, without the prior written consent of Radiodetection Ltd.
