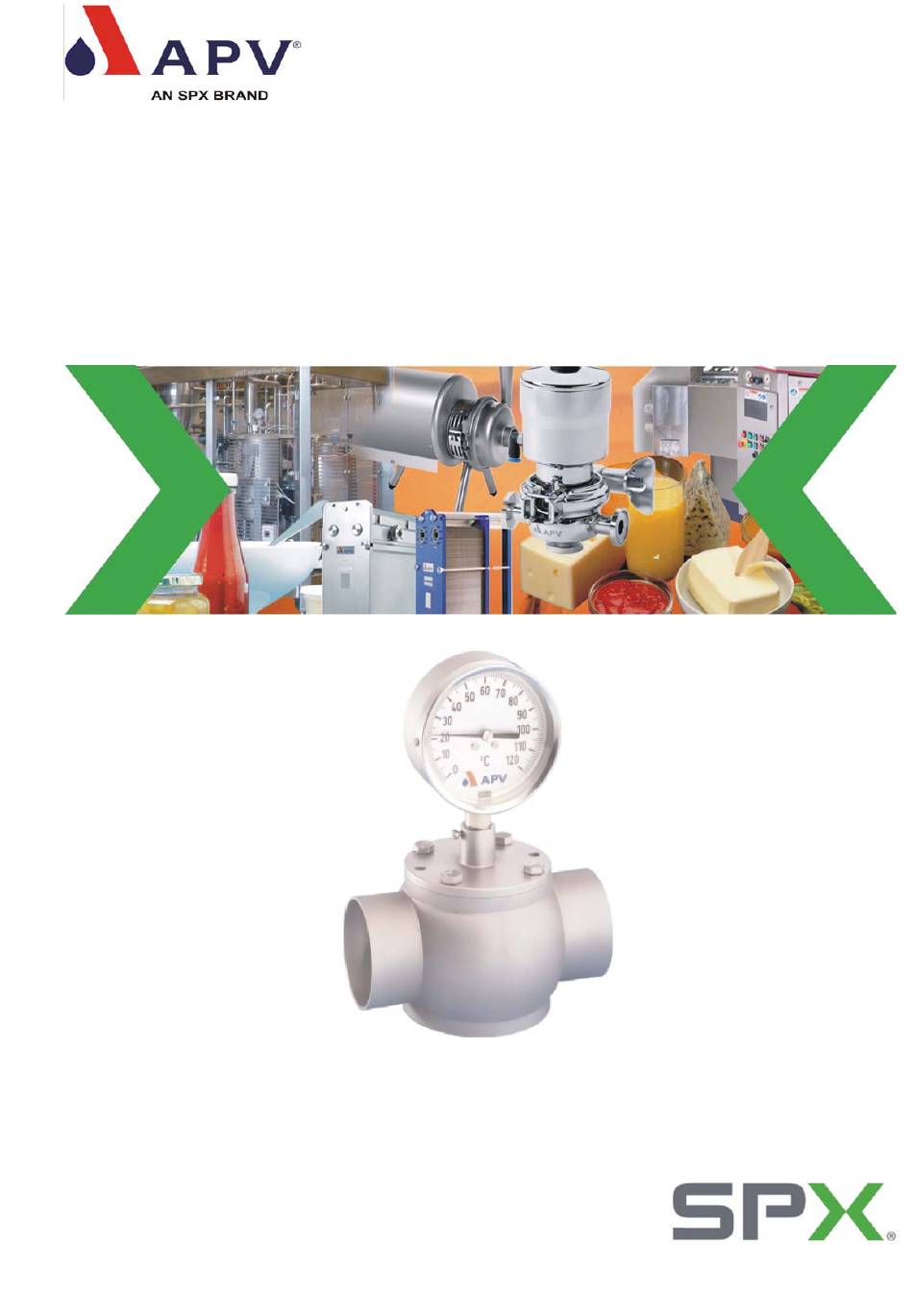

- Page 1 Operating Manual DELTA Inline Measuring Techniques Read and understand this manual prior to operating or servicing this product.
-
Page 3: Table Of Contents
Table of Contents Page Gerneral Terms Safety Instructions Field of Application Measuring Devices 3 - 4 Cleaning Installation Maintenance Materials Dimesions / Weights Technical Data Assembly Instructions Trouble Shooting Spare Parts Lists RN 01.256 Inline Measuring Techniques Operating Manual Rev.0... -
Page 5: Gerneral Terms
General Terms This operating manual has to be read carefully and observed by the competent operating and maintenance personnel. We have to point out that we will not accept any liability for damage or malfunctions resulting from the non-compliance with this operating manual. -
Page 6: Measuring Devices
Measuring Device All measuring devices have the same dimensions of flange connection and can, thus, be used independently of the nominal diameter. Selection can be made from different measuring devices: Temperature measurement - Thermometer: bimetal thermometer according to type sheet TM 52.01 type series R 5216 accuracy class: 1 - Temperature sensor:... -
Page 7: Cleaning
Measuring Device Optical measuring technique: turbidity measurement colour measurement concentration measurement Ultrasonic measuring technique: concentration measurement density measurement Sight glass: with and without illumination. Cleaning As a result of the design of the Inline housing being free of dead spaces (no sump and no dome) all product-wetted parts can be cleaned properly during the cleaning process. -
Page 8: Maintenance
Welding Instructions - The preparation of the weld seam up to 3 mm thickness must be carried out in butt manner as an square butt joint without air. (Consider shrinkage!) - TIG orbital welding should be aimed at! - After welding of the valve housings, the pipelines must be cleaned from welding residues and soiling in order to prevent other components from being damaged. -
Page 9: Dimesions / Weights
Dimensions / Weights w ei ght i n ˘ ˘ B ˘ ˘ C 25, 5 31, 5 37, 5 45, 5 53, 0 62, 5 75, 0 87, 5 10. Technical Data max. line pressure : 10 bar (higher pressure on request) : 140 o C EPDM, HNBR max. -
Page 10: Assembly Instructions
Assembly Instructions The item numbers refer to the spare parts list RN 01.256. 11.1 Dismantling from the line system a. Shut off line pressure in the product line and discharge line if possible. b. Disconnect electric and pneumatic connecting lines. c. - Page 12 Phone: +49(0) 23 03/ 108-0 Fax: +49(0) 23 03 / 108-210 For more information about our worldwide locations, approvals, certifications, and local representatives, please visit www.apv.com. Copyright © 2008 SPX Corporation The information contained in this document, including any specifications and other product details, are subject to change without notice.
