Specification
CC-7907WF-21
Model
1/3" SONY Super HAD CCD II
Pick up Element
Effective Picture Elements
NTSC:976(H)×494(V)
(H×V)
Horizontal Resolution
720 TV Line
Minimum Illumination
0.001 Lux/F1.2
S/N Ratio
More than 52dB
Scanning System
2:1 interface
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s
Auto Electronic Shutter
Gama Characteristic
0.45
65 Feet (with ￠5X24 PCS Infrared LED)
IR Distance
Video Output
1Vpp, 75Ω
Auto
Auto Gain Control
Power/Current
DC12V(+/-10%)/350mA
Lens
Board Lens 3.6mm/F2.0
Dimension (in)
6.7(W) x 2.9(H) x 2.6(D)
Weight (lb)
1.1
Storage Temperature
-22°F~140°F RH95% MAX
14°F~122°F RH95% MAX
Operating Temperature
Packing List
No
Name
1.
Weatherproof IR Color Camera
CC-7907WF-21
2.
CC-7907WF-21
User Guide
Model
Number
1
1
ALLIANCE
DRIVE
GREENSBORO, NC
-
- -CREST/
-
-
FAX:
-
-
www.crestelectro ics.co
CC-7907WF-21 Color Camera

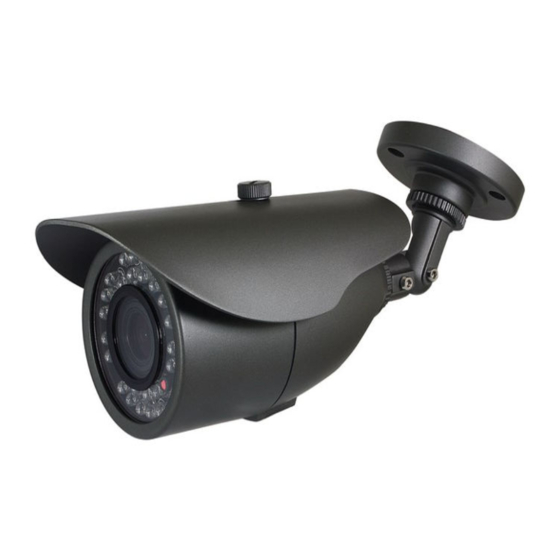

Weatherproof IR Color Camera
EFFIO A
NOTE
Please read this guide
BEFORE installing
Advertisement
Related Manuals for Crest Electronics CC-7907WF-21
Summary of Contents for Crest Electronics CC-7907WF-21
- Page 1 Specification CC-7907WF-21 Model CC-7907WF-21 Color Camera 1/3" SONY Super HAD CCD II Pick up Element Effective Picture Elements NTSC:976(H)×494(V) (H×V) Horizontal Resolution 720 TV Line Minimum Illumination 0.001 Lux/F1.2 S/N Ratio More than 52dB Weatherproof IR Color Camera Scanning System 2:1 interface Internal, Negative sync.
- Page 2 LCD/CRT ● This installation should be made by a qualified service person touching “ground” COMMUNICATION and conform to all local codes. Crest Electronics will not be CAMERA ID responsible for damages or injuries as a result of improper ◆ installation.
