Crest Electronics CC-4807WR-21 User Manual

CC-4807WS-21
Model
1/3" SONY Super HAD CCD II EFFIO A
Pick up Element
Effective Picture Elements
NTSC: 976(H)×494(V)
(H×V)
720 TV Line
Horizontal Resolution
0.001 Lux
Minimum Illumination
S/N Ratio More than 52dB
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
65 Feet
IR Distance
(with 5X21 PCS Infrared LED)
1Vpp, 75Ω
Video Output
Auto Gain Control Auto
YES
UTC
Power/Current 24Vac/12Vdc(+/-10%)/500mA
Lens 6-22mm Manual Zoom Lens
Dimension (mm) 5.7X4.25(H) in
Weight (g) 2.65 pounds
Storage Temperature -4°F~140°F RH95% MAX
Operating Temperature
14°F~122°F RH95% MAX

Packing List

No
Name
1.

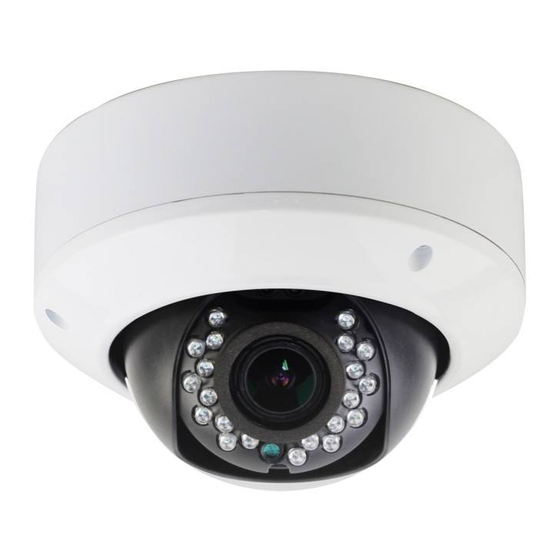

Vandalproof IR Dome Color Camera CC-4807WS-21
2.
User Guide CC-4807WS-21
Model Number
1
1
ALLIANCE DRIVE
GREENSBORO, NC
-
-CREST/ - -
FAX:
- -
www.crestelectro ics.co
CC-4807WR-21 Color Camera
User Guide
Vandalproof IR Dome w/
3-Axis Bracket
NOTE:
Please read this guide BEFORE
installing
