Specification
CC-2707WF-20
Model
1/3" SONY Super HAD CCD
Pick up Element
Effective Picture Elements
NTSC:976(H)×494(V) PAL:976(H)x582(V)
(H×V)
Horizontal Resolution
720 TV Line
0.001 Lux/F1.2
Minimum Illumination
0Lux (with IR LED ON)
S/N Ratio
More than 52dB
Scanning System
2:1 interface
Synchronous System
Internal, Negative sync.
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
Gama Characteristic
0.45
65 feet (with ￠5X24 PCS Infrared LED)
IR Distance
Video Output
1Vpp, 75Ω
Auto Gain Control
Auto
Power/Current
DC12V(+/-10%)/350mA
Board Lens 3.6mm/F2.0
Lens
3.8in x 2.8(H)
Dimension (in)
11
Weight (oz)
-22~+140°f RH95% MAX
Storage Temperature
Operating Temperature
+14~+122°F RH95% MAX
Packing List
No
Name
1.

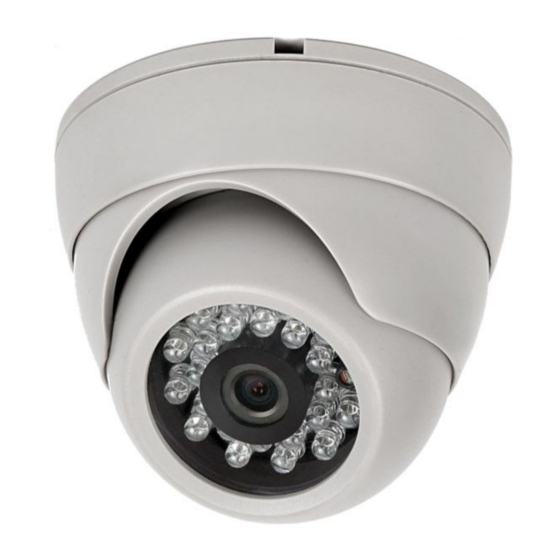

Plastic IR Dome Color Camera
CC-2707WF-20
2.
CC-2707WF-20
User Guide
II
Model
Number
1
1
ALLIANCE
DRIVE
GREENSBORO, NC
-
- -CREST/
-
-
FAX:
-
-
www.crestelectro ics.co
CC-2707WF-20 Color Camera
Plastic IR Dome Color Camera
Effio-A
NOTE
Please read this guide BEFORE
installing
