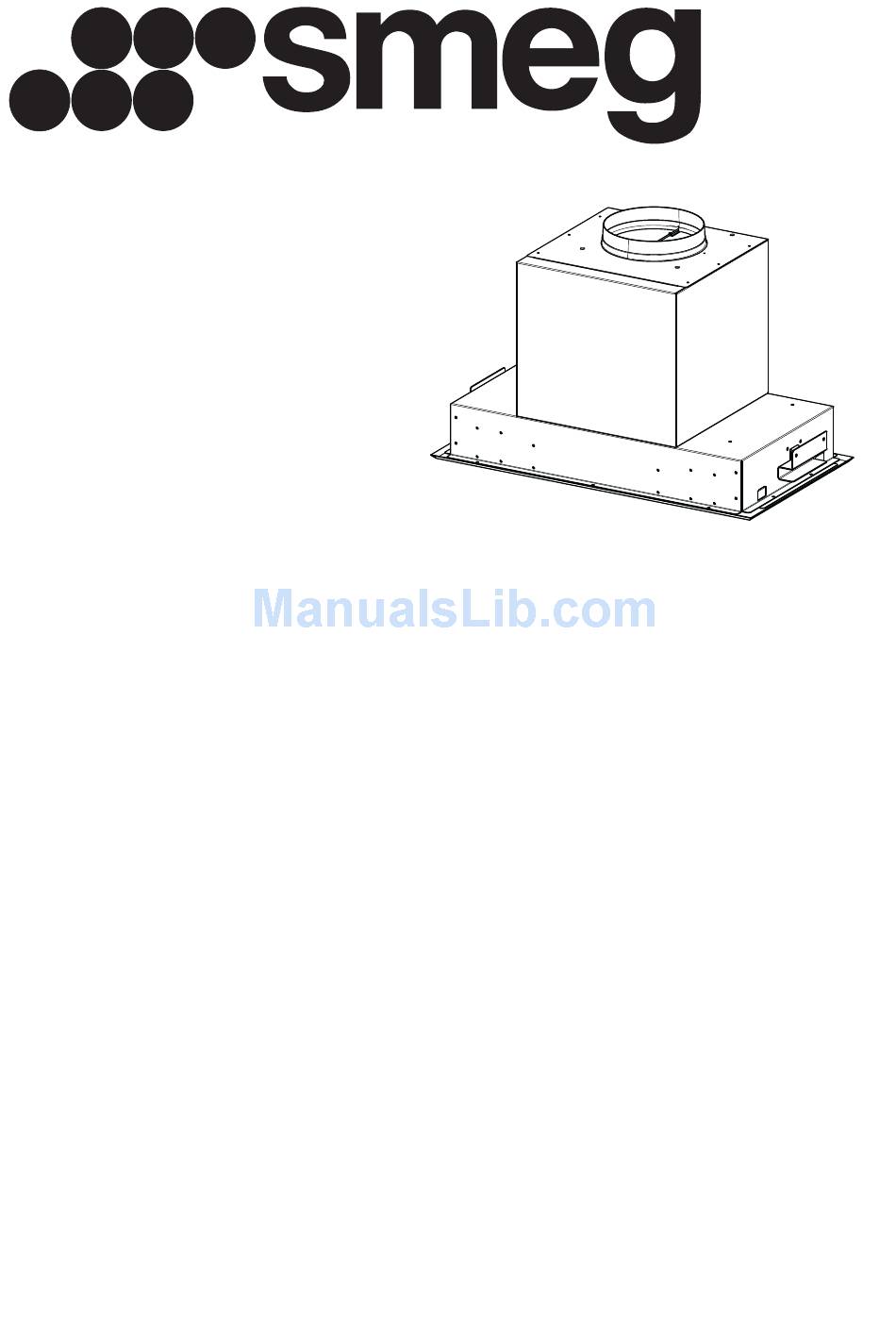

- Page 1 Libretto di Istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing Manual de instrucciones Manual de Instruções Руководство по эксплуатации Bruksanvisning KSEG54X-KSEG77X...
-
Page 2: Table Of Contents
INDICE CONSIGLI E SUGGERIMENTI... 4 CARATTERISTICHE... 5 INSTALLAZIONE ... 7 USO... 9 MANUTENZIONE ... 12 INDEX RECOMMENDATIONS AND SUGGESTIONS ... 14 CHARACTERISTICS ... 15 INSTALLATION... 17 USE ... 19 MAINTENANCE ... 22 SOMMAIRE CONSEILS ET SUGGESTIONS... 24 CARACTERISTIQUES... 25 INSTALLATION... 27 UTILISATION ... - Page 3 ÍNDICE CONSELHOS E SUGESTÕES... 64 CARACTERÍSTICAS ... 65 INSTALAÇÃO... 67 UTILIZAÇÃO ... 69 MANUTENÇÃO... 72 УКАЗАТЕЛЬ СОВЕТЫ И РЕКОМЕНДАЦИИ ... 74 ХАРАКТЕРИСТИКИ... 75 УСТАНОВКА... 77 ЭКСПЛУАТАЦИЯ... 79 УХОД... 82 INNEHÅLL REKOMMENDATIONER OCH TIPS ... 84 EGENSKAPER... 85 INSTALLATION... 87 ANVÄNDING... 89 UNDERHÅLL...
-
Page 4: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. -
Page 5: Characteristics
CHARACTERISTICS Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Fan unit, Filters Directional air outlet grille Flange ø 150 Flange with Valve ø 150 Ref. Q.ty Installation Components Hood body fixing brackets Screws 3.5 x 16 Screws 2.9 x 12.7 Q.ty Documentation Instruction Manual Dimensions... - Page 6 • The Hood is fitted with a system that allows the direction of the air outlet to be adjusted. • On installation, the Hood is set up with the air outlet in the Top position (fig.1). • To modify the position of the air outlet, remove the Comfort Panel (see paragraph on Maintenance).
- Page 7 INSTALLATION Drilling the Support surface and Fitting the Hood • The Hood can be installed directly on the underside of wall-mounted units (650 mm min. from the Cooker Top) using the snap- on side supports and screws provided. • Create an opening in the bottom of the wall mounted unit, as shown (fig.1), leaving a distance of at least 20mm from the front.
- Page 8 Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120mm, the choice of which is left to the installer. To install a ø 150 pipe •...
-
Page 9: Control Panel
Button Function Press briefly to turn the lighting system on and off. Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity. Turn the suction motor on and off at speed one. If the filter saturation alarm is on, this resets it. - Page 10 REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included). • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner.
- Page 11 Button Function Turns the Motor On/Off. Decreases the speed of the Motor. Increases the speed of the Motor. INTENSIVE It cannot be activated if the Delay function is in use. Activates/Deactivates Intensive speed. Intensive speed is timed to run for 10 minutes. At the end of the 10 minutes the system will automatically return to the speed that was set before.
-
Page 12: Maintenance
MAINTENANCE Cleaning the Comfort Panels • Pull the Comfort Panel to open it. • Disconnect the panel from the hood canopy by sliding the fix- ing pin lever. • The comfort panel must never be washed in a dishwasher. • Clean the outside by using a damp cloth and neutral liquid de- tergent. -
Page 13: Installation
Activated Charcoal Filter (Recirculation Version) • This cannot be washed or regenerated, and must be changed when all the command LEDs start to flash, or at least once every 4 months. Activating the alarm signal • In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
