Installation Guide
Included Installation Instructions

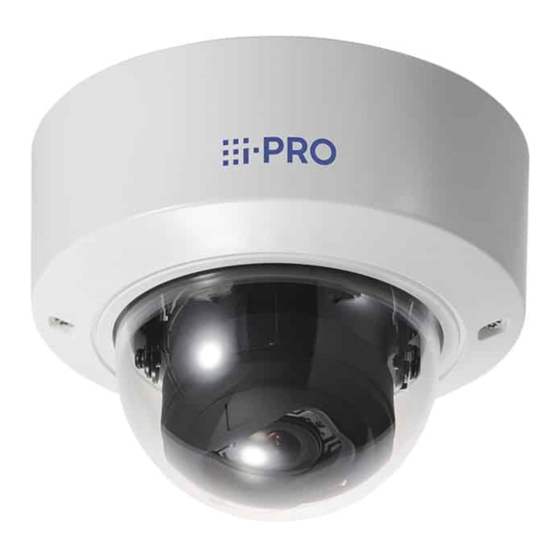

Network Camera
WV-S2236L
Model No.
About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (this document): Provides information about "Precautions",
"Precautions for installation" and the installation method.
• Basic Information (in the following manual website): Provides information
about "Precautions for use", "Parts and functions" and "Detail specifications".
• Operating Instructions (in the following manual website): Explains how to
perform the settings and how to operate this camera.
https://i-pro.com/products_and_solutions/en/surveillance/documentation-database
"<Control No.: C****>" used in these documents should be used to search for
information on our technical information website
(https://i-pro.com/products_and_solutions/en/surveillance/learning-and-support/
knowledge-base/technical-information) and will guide you to the right information.
• Before attempting to connect or operate this product, please read these instructions
carefully and save Important Safety Instructions leaflet for future use.
• microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.
• The external appearance and other parts shown in this manual may differ from the actual product within the
scope that will not interfere with normal use due to improvement of the product.
Tokyo, Japan
https://www.i-pro.com/
© i-PRO Co., Ltd. 2024
For professional use only
1
Indoor use
Authorised Representative in EU:
i-PRO EMEA B.V.
Laarderhoogtweg 25, 1101 EB
Amsterdam, Netherlands
i-PRO EMEA B.V. UK Branch
1010 Cambourne Business Park,
Cambridgeshire CB23 6DP
C0224-0
PGQP3738ZA
Advertisement
Related Manuals for i-PRO WV-S2236L
Summary of Contents for i-PRO WV-S2236L
- Page 1 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands Tokyo, Japan i-PRO EMEA B.V. UK Branch https://www.i-pro.com/ 1010 Cambourne Business Park, Cambridgeshire CB23 6DP C0224-0 © i-PRO Co., Ltd. 2024...
- Page 2 This equipment generates, uses, and can Trade name : i-PRO radiate radio frequency energy and, if not installed Model No. : WV-S2236L and used in accordance with the instruction man- Responsible Party : ual, may cause harmful interference to radio com- i-PRO Americas Inc.
- Page 3 Caution: Notice: • The DC power supply connected to the camera • This product is not suitable for use in locations must be in the same building. where children are likely to be present. • The network camera is only intended for a •...
- Page 4 Stop the operation immediately when something is wrong with this product. „ When smoke goes up from the product, the smell of smoke comes from the product, or the exterior of the product has deteriorated, continued use will cause a fire or fall of the product resulting in injury, or damage to the product.
-
Page 5: About Notations
• All other trademarks identified herein are the property of their respective owners. Precautions for installation i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation. - Page 6 This camera is designed to be used indoors „ This product is not operable outdoors. Do not expose this camera to direct sunlight for hours and do not install the product near a heater or an air conditioner. Otherwise, it may cause deformation, discoloration and malfunction.
-
Page 7: Specifications
Specifications* *For further information, refer to the Basic Information. Power source * 12 V DC PoE (IEEE802.3af compliant) Power consumption * 12 V DC: 720 mA/Approx. 8.6 W PoE 48 V DC: 180 mA/Approx. 8.7 W (Class 0 device) Operating environment Ambient operating temperature: –10 °C to +50 °C {14 °F to 122 °F}... -
Page 8: Standard Accessories
Standard accessories Important Safety Instructions ......1 pc. Bit (Hex wrench, EXT I/O terminal plug* screw size 6.35 mm ×1 Power cord plug ×1 {1/4 inches} T10) ×1 Template A ×1 *1 The power cord plug and EXT I/O terminal plug are attached to the camera. Other items that are needed (not included) •... - Page 9 SD ON/OFF button ① microSD • Operating Instructions “Format” memory card • Operating Instructions [Indicator] All LEDs forced to turn off ② • It is recommended to use a microSD memory A click sound is heard. card for i-PRO devices.
- Page 10 Step 1 Preparations Bit (accessory) ① ① ② ② „ When using a conduit „ When wiring cables on the side 35 mm {1-3/8 inches} 31 mm {1-7/32 inches}...
- Page 11 Step 2 Cable access hole ø25.4 mm {ø1 inch} 24 mm {15/16 inches} 83.5 mm {3-9/32 inches} 2 × M4 46 mm {1-13/16 inches} ■ Ceiling ■ Wall FRONT Note: • When using a conduit or wiring cables on the side, it is unnecessary to prepare a cable access hole on the installation surface.
- Page 12 Step 3 12 V DC EXT I/O < 1 m {3.28 feet} (Mic) < 10 m {32.8 feet} (Line) Audio in Audio out <10 m {32.8 feet} RJ45 Ethernet (PoE) „ 12 V DC terminal < 100 m {328 feet} 3 mm to 7 mm {1/8 inches to 9/32 inches} 0.34 N·m {0.25 lbf·ft}...
- Page 13 Step 4 Mounting screws: M4 (2 pcs.) (locally procured) Minimum pull-out strength: 196 N {44 lbf} (per 1 pc.) ■ Two-gangbox/junction box FRONT ■ Ceiling FRONT ■ Wall...
- Page 14 → Power On (12 V DC/PoE) Step 5 If there is a protection film on the lens, remove it. ■ Ceiling TELE+AF WIDE+AF 0.59 N·m {0.44 lbf·ft} 0.59 N·m {0.44 lbf·ft} (accessory)
- Page 15 Step 5 (Continued) ■ Wall 0.59 N·m {0.44 lbf·ft} IR LED Operating Instructions “Image rotation →180°” IR LED Bit (accessory) 0.59 N·m {0.44 lbf·ft}...
- Page 16 Step 6 • Operating Instructions “Focus adjustment” • Technical information website “IP Setting Software” <Control No.: C0123> “i-PRO Configuration Tool (iCT)” <Control No.: C0133> “Extra optical zoom” <Control No.: C0124> “Camera images that appear to overlap” <Control No.: C0128>...
