About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for
installation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use", "Parts and
functions" and "Detail specifications".
• Operating Instructions (Refer to the link on the following support website): Explains how to
perform the settings and how to operate this camera.
https://i-pro.com/global/en/surveillance/training-support/documentation-database-list
"<Control No.: C****>" used in these documents should be used to search for information on our
technical information website (https://i-pro.com/global/en/surveillance/training-support/support/
technical-information) and will guide you to the right information.
• microSDXC/ microSDHC/ microSD memory card is described as microSD
memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.

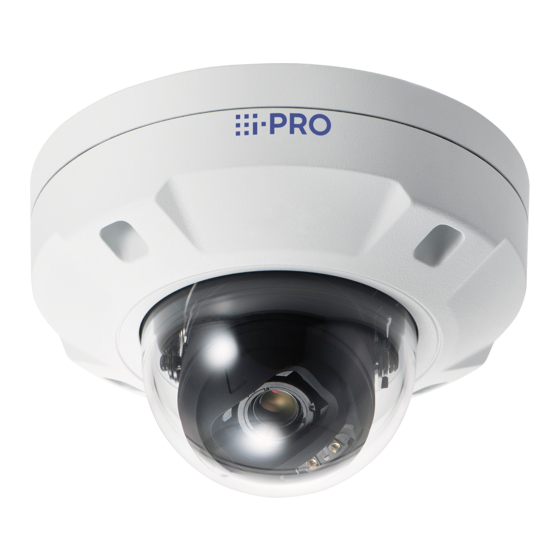

Basic Information
Network Camera
WV-S2536LT
Model No.
Advertisement
Table of Contents
Related Manuals for i-PRO WV-S2536LTA
Summary of Contents for i-PRO WV-S2536LTA
- Page 1 “<Control No.: C****>” used in these documents should be used to search for information on our technical information website (https://i-pro.com/global/en/surveillance/training-support/support/ technical-information) and will guide you to the right information. • microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.
-
Page 2: Table Of Contents
Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Parts and functions ........................8 Insert / remove a microSD memory card ..................13 Troubleshooting ........................... -
Page 3: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 4: System Requirements For A Pc
System requirements for a PC CPU: Intel ® Core Processor family ® - Intel Core i5-6500 or faster - Intel ® Core i7-6700 or faster recommended Memory: 4 GB (2 GB x 2, Dual Channel) or more recommended. Network interface: 10BASE-T/100BASE-TX 1 port Audio interface: Sound card (when using the audio function) -
Page 5: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. A Leakage or theft of information through this unit B Use of this unit for illegal operations by persons with malicious intent C Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. -
Page 6: Precautions For Use
Precautions for use When the product is accessible from the Periodically images on the screen appear to Internet be distorted To prevent unauthorized access, note the following. When the camera is installed in a location where it is subject to small vibrations (for example, when •... - Page 7 We shall not be liable for content AVC Patent Portfolio License compensation, losses of recorded or THIS PRODUCT IS LICENSED UNDER THE edited content and any direct or indirect AVC PATENT PORTFOLIO LICENSE FOR THE consequent damages caused by failure to PERSONAL USE OF A CONSUMER OR OTHER record or edit due to faults with this unit or USES IN WHICH IT DOES NOT RECEIVE...
-
Page 8: Parts And Functions
Parts and functions „ Cables [1] Ethernet cable (category 5e or better, straight, 4 pairs (8 pins)) [5] 4P alarm cable (WV-QCA501A accessory) [5] EXT I/O cable 2P power cable I/O Cable WV-QCA501A (option) (WV-QCA501A accessory) 12 V DC (red) Power supply cable GND (black) Audio input cable (white) - Page 9 [2] Power supply cable / 2P power cable (WV-QCA501A accessory) Connect the output cable of the DC power supply to the 2P power cable. IMPORTANT: • Be sure to use the 2P power cable provided with WV-QCA501A. • Be sure to fully insert the 2P power cable into the power supply cable. Otherwise, it may damage the camera or cause malfunction.
- Page 10 [5] EXT I/O cable / 4P alarm cable (WV-QCA501A accessory) Note: • Off, input, and output of the ALARM IN2 and 3 can be switched by configuring the setting. Refer to the Operating Instructions for further information about the ALARM IN2 and 3 settings (“Off”, “Alarm input”, “Alarm output”...
- Page 11 „ Indicators and buttons INITIAL SET button SD memory card SD ON/OFF button warning/error indicator LINK indicator ACT indicator WIDE button SD (MOUNT) indicator TELE button INITIAL SET button (Initializing / NTSC PAL switch button) Follow the steps below to initialize the network camera. Turn off the power of the camera.
- Page 12 SD (MOUNT) indicator Lights off → Blinks green → Lights off • When a microSD memory card is inserted and could be recognized Lights off → Lights green • When data can be saved after the microSD memory card is inserted and the SD ON/OFF button is pressed (less than 1 second) •...
-
Page 13: Insert / Remove A Microsd Memory Card
Insert / remove a microSD memory card Note: • Use a microSD memory card dedicated to i-PRO cameras. • Refer to the Operating Instructions on our support website for further information about the microSD memory card settings. „ Insert a microSD memory card Remove the enclosure from the camera. - Page 14 „ Remove a microSD memory card When removing a microSD memory card, reverse the procedure. • To remove the microSD memory card, hold down the SD ON/OFF button for about 2 seconds. When the flashing SD (MOUNT) indicator goes out, you can remove the microSD memory card. IMPORTANT: •...
-
Page 15: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE device for power supply... - Page 16 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or peripheral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains Installation strong magnetic field or radio waves (such as near a...
-
Page 17: Detail Specifications
(excluding an attachment for the conduit portion) Approx. 1.1 kg {2.43 lbs.} Mass: (excluding an attachment for the conduit portion) Finish: Main body: Aluminum die cast, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: PC resin, Clear Others: Tamper-resistant enclosure *1 Refer to our technical information website <Control No.: C0106>... - Page 18 *4 Only when installation work is properly performed according to the Installation Guide and appropriate waterproof treatment is performed. *5 Component that has a structure on which the screws that are accessible after installation cannot be screwed or unscrewed using an ordinary screwdriver. Camera •...
- Page 19 Maximum shutter: [60 fps mode] Max. 1/4000 s, Max. 1/2000 s, Max. 1/1000 s, Max. 1/500 s, Max. 1/250 s, Max. 1/120 s, Max. 1/100 s, Max. 2/120 s, Max. 1/30 s, Max. 2/30 s, Max. 4/30 s, Max. 6/30 s, Max. 10/30 s, Max. 16/30 s [30 fps/ 15 fps mode] Max. 1/4000 s, Max. 1/2000 s, Max. 1/1000 s, Max. 1/500 s, Max.
- Page 20 Lens • Zoom ratio: Optical zoom 2.3x (Motorized zoom / Motorized focus) Extra optical zoom max 6.9x (2.3x – 6.9x when resolution is 640x360) Focal length: 9 mm – 21 mm {11/32 inches – 13/16 inches} Maximum aperture ratio: 1:1.7 (WIDE) – 1:3.0 (TELE) Focus range: 2 m {78-3/4 inches} –...
- Page 21 • Network Network: 10BASE-T/100BASE-TX, RJ45 connector [16:9 mode(60 fps mode)][16:9 mode(30 fps mode)] Resolution: [16:9 mode(50 fps mode)][16:9 mode(25 fps mode)] H.265/ H.264 * JPEG (MJPEG) 1920×1080/ 1280×720/ 640×360/ 320×180 [4:3 mode(30 fps mode)] [4:3 mode(25 fps mode)] 1280×960/ VGA/ QVGA [4:3 mode(15 fps mode)] [4:3 mode(12.5 fps mode)] 2048×1536 * / 1280×960/ VGA/ QVG...
- Page 22 IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, LLDP, FTP, SFTP, MQTT Security: User authentication, Host authentication, HTTPS <WV-S2536LTA> FIPS 140-2 level3 Microsoft Windows 11 Microsoft Windows 10...
- Page 23 <Control No.: C0132>. *6 When using MJPEG/JPEG (Refresh interval) only. *7 Use a microSD memory card dedicated to i-PRO cameras. *8 For possible number of images and duration (an indication) that can be saved on the microSD memory card, refer to our technical information website below.
- Page 24 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands Tokyo, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N0822-1053 PGQP3616YA...
