About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for
installation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use" and "Detail
specifications".
• Operating Instructions (in the following website): Explains how to perform the settings and
how to operate this camera.
https://i-pro.com/global/en/surveillance/documentation_database
"<Control No.: C****>" used in these documents should be used to search for information on our support
website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information) and will
guide you to the right information.
• SDXC/ SDHC/ SD memory card is described as SD memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.
Basic Information

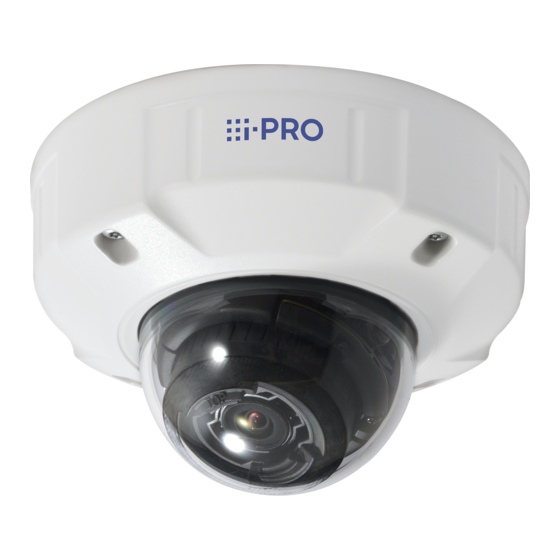

Network Camera
WV-S2572L
Model No.
WV-S2552L
Advertisement
Table of Contents
Related Manuals for i-PRO WV-S2572L
Summary of Contents for i-PRO WV-S2572L
- Page 1 “<Control No.: C****>” used in these documents should be used to search for information on our support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information) and will guide you to the right information. • SDXC/ SDHC/ SD memory card is described as SD memory card.
-
Page 2: Table Of Contents
Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 About notations ..........................4 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Parts and functions ........................8 Troubleshooting ........................... 12 Detail specifications ........................14... -
Page 3: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 4: About Notations
The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. The functions with this notation are available when using the model WV-S2572L. S2572 The functions with this notation are available when using the model WV-S2552L. -
Page 5: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. A Leakage or theft of information through this unit B Use of this unit for illegal operations by persons with malicious intent C Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. -
Page 6: Precautions For Use
Precautions for use When the product is accessible from the Periodically images on the screen appear to Internet be distorted To prevent unauthorized access, note the following. When the camera is installed in a location where it is subject to small vibrations (for example, when •... - Page 7 We shall not be liable for content AVC Patent Portfolio License compensation, losses of recorded or THIS PRODUCT IS LICENSED UNDER THE edited content and any direct or indirect AVC PATENT PORTFOLIO LICENSE FOR THE consequent damages caused by failure to PERSONAL USE OF A CONSUMER OR OTHER record or edit due to faults with this unit or USES IN WHICH IT DOES NOT RECEIVE...
-
Page 8: Parts And Functions
Parts and functions Cables Ethernet cable (category 5e or better, straight, 4 pairs (8 pins)) [1] RJ45 Network cable [5] EXT I/O cable [5] 4P alarm cable (accessory) 2P power cable (accessory) 12 V DC (red) Power supply cable GND (black) Audio input cable (white) Audio output cable (black) - Page 9 [2] Power supply cable / 2P power cable (accessory) Connect the output cable of the DC power supply to the 2P power cable. IMPORTANT: • Be sure to use the 2P power cable provided with this product. • Be sure to fully insert the 2P power cable into the power supply cable. Otherwise, it may damage the camera or cause malfunction.
- Page 10 [5] EXT I/O cable / 4P alarm cable (accessory) Note: • Off, input, and output of the ALARM IN2 and 3 can be switched by configuring the setting. Refer to the Operating Instructions for further information about the ALARM IN2 and 3 settings (“Off”, “Alarm input”, “Alarm output”...
- Page 11 [6] MONITOR OUT terminal (factory shipment: NTSC monitor) Used to connect a monitor used for adjustments during installation or when performing service. IMPORTANT: • The adjustment monitor is used for checking the adjustment of the angular field of view when installing the camera or when servicing.
-
Page 12: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE device for power supply... - Page 13 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or periph- eral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains Installation strong magnetic field or radio waves (such as near a...
-
Page 14: Detail Specifications
When using base bracket: Mass: Approx. 1.6 kg {3.53 lbs.} When using attachment plate only: Approx. 1.2 kg {2.65 lbs} Finish: Main body: Aluminum die cast, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: Polycarbonate resin, Clear Others: Tamper-resistant enclosure... - Page 15 *1 Refer to our support website <Control No.: C0106> for further information about Power source and Power consumption information. *2 When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50 °C {+122 °F}. S2572 This camera is not equipped with the function to change the audio output to the monitor output.
- Page 16 Minimum illumination: S2572 Color: 0.09 lx {0.0084 footcandle} (50IRE, F1.5, Maximum shutter: Off (1/30 s), AGC: 11) 0.006 lx {0.0006 footcandle} (50IRE, F1.5, Maximum shutter: max. 16/30 s, AGC: 11)* BW: 0 lx {0 footcandle} (50IRE, F1.5, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit) 0.05 lx {0.0046 footcandle} (50IRE, F1.5, Maximum shutter: Off (1/30 s), AGC: 11)
- Page 17 Maximum shutter: [30 fps mode] Max. 1/4000 s, Max. 1/2000 s, Max. 1/1000 s, Max. 1/500 s, Max. 1/250 s, Max. 1/120 s, Max. 1/100 s, Max. 2/120 s, Max. 2/100 s, Max. 3/120 s, Max. 1/30 s, Max. 2/30 s, Max. 4/30 s, Max. 6/30 s, Max.
- Page 18 Focus range: S2572 1 m {39-3/8 inches} – ∞ S2552 0.3 m {11-13/16 inches} – ∞ Aperture range: S2572 F1.5 – Close S2552 F1.3 – Close Angular field of view: S2572 [16:9 mode*] *[4:3 mode] is not supported. Horizontal: 52° (TELE) – 101° (WIDE) Vertical: 29°...
- Page 19 Image compression method: H.265/ H.264 * Transmission priority: Constant bit rate/ VBR/ Frame rate/ Best effort Frame rate: [30 fps mode] 1 fps/ 3 fps/ 5 fps*/ 7.5 fps*/ 10 fps*/ 12 fps*/ 15 fps*/ 20 fps*/ 30 fps* [25 fps mode] 1 fps/ 3.1 fps/ 4.2 fps*/ 6.25 fps*/ 8.3 fps*/ 12.5 fps*/ 20 fps*/ 25 fps* (The frame rate is limited to “bit rate”.
- Page 20 Up to 16 camera images can be displayed simultaneously on a multi- screen. (Including the camera itself) Compatible SDXC/SDHC/SD It is recommended to use an SDXC/SDHC/SD memory card for i-PRO memory card * devices. (SD speed class 6 or higher) SDXC memory card:...
- Page 21 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Fukuoka, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N1020-1042 PGQP3072YA...
