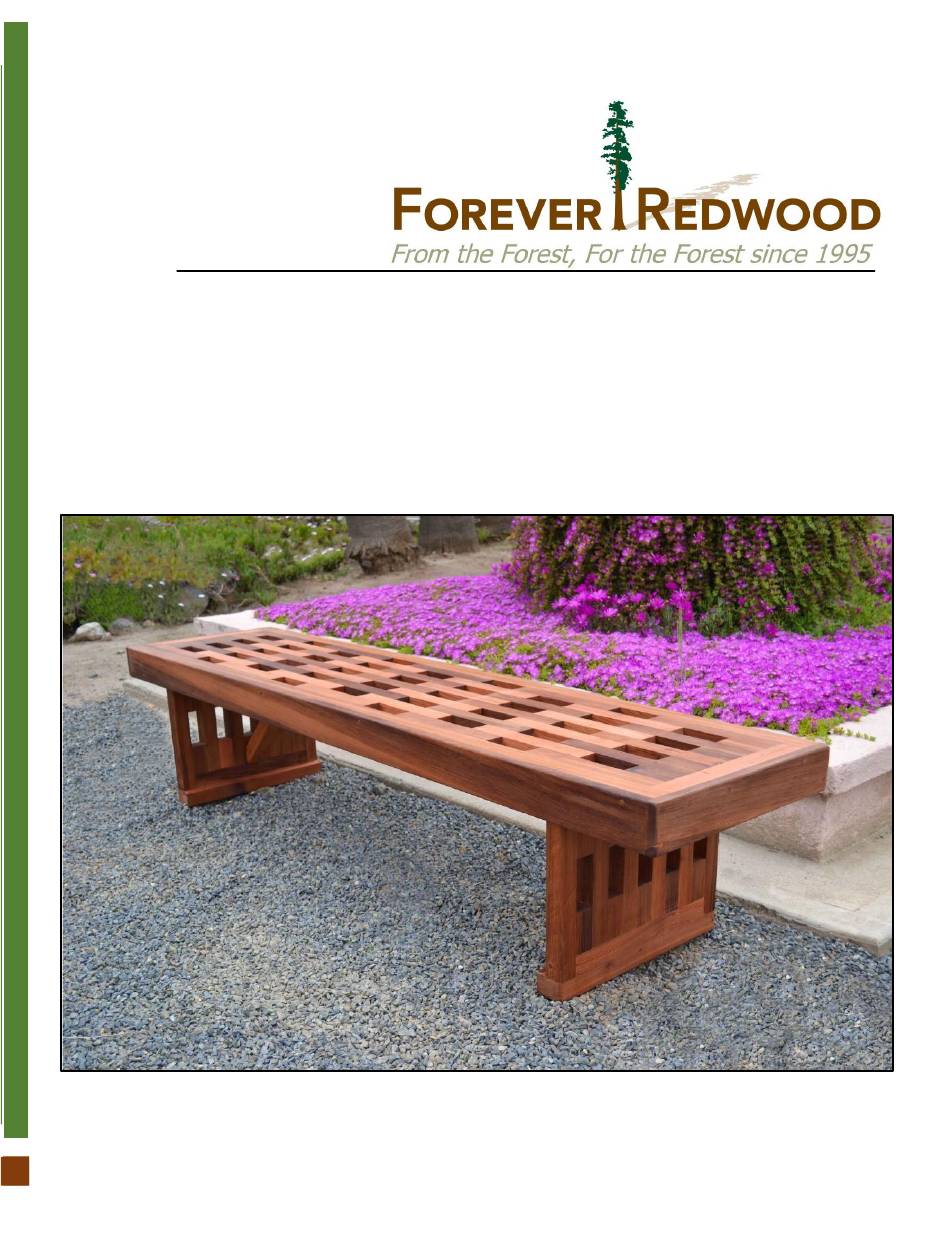

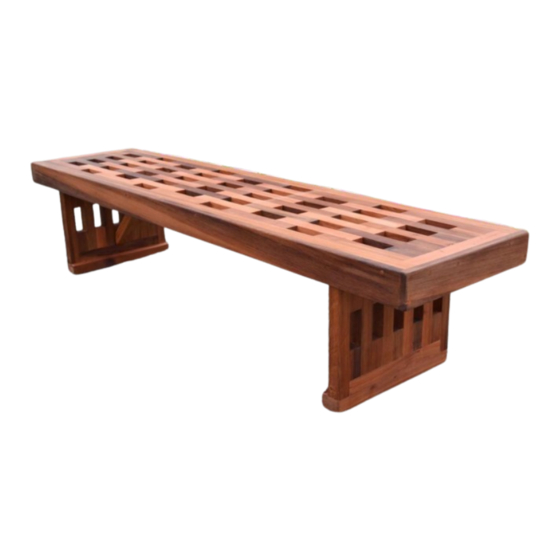

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE LIGTHUOSE GARDEN BENCH P| 0 LIGTHUOSE GARDEN BENCH www.ForeverRedwood.com...
- Page 2 Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a ratchet with the necessary socket or a wrench. P| 1 LIGTHUOSE GARDEN BENCH www.ForeverRedwood.com...
- Page 3 Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratchet with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws. Insert the deck screws into the holes and carefully tighten it using a drill. P| 2 LIGTHUOSE GARDEN BENCH www.ForeverRedwood.com...
-
Page 4: Hardware List
Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the parts sent. HARDWARE LIST Description Drawing 5/16” x 3 ½” bolts 2 ½’’ Deck Screws Note: Dimensions of your hardware will vary depending on size. P| 3 LIGTHUOSE GARDEN BENCH www.ForeverRedwood.com... - Page 5 DESCRIPTION Seat Legs Diagonal supports Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 4 LIGTHUOSE GARDEN BENCH www.ForeverRedwood.com...
- Page 6 Step 2: Attach the diagonal supports (3) to the seat and to the legs with 2 ½’’ deck screws (DS1). Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 5 LIGTHUOSE GARDEN BENCH www.ForeverRedwood.com...
- Page 7 This completes the bench assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 6 LIGTHUOSE GARDEN BENCH www.ForeverRedwood.com...
