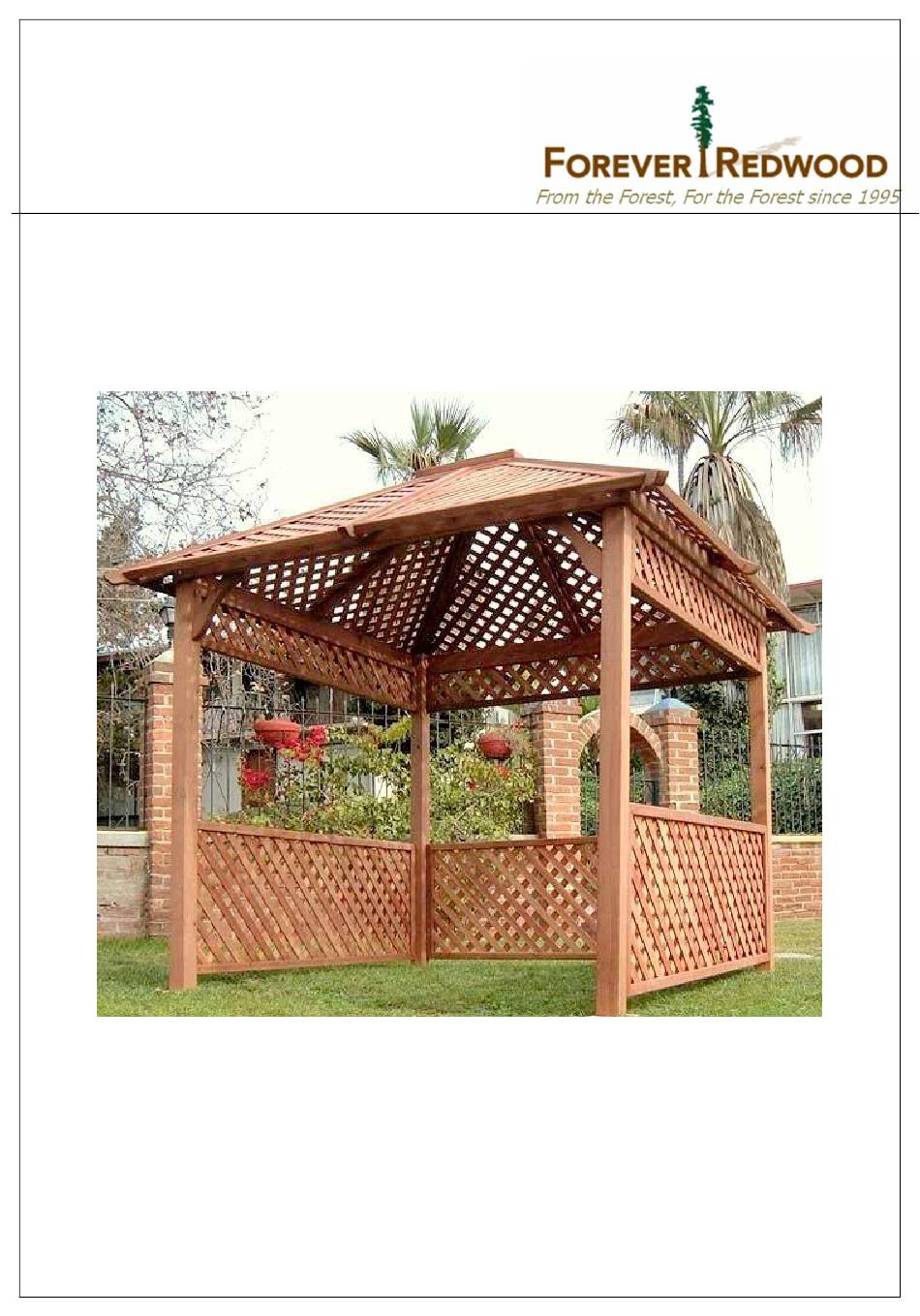

  • Page 1 866.332.2403; Outside the US: 619.600.5630 8am-5pm Pacific Time, Monday-Friday Assembly instructions for: LATTICE GAZEBO Lattice Gazebo www.foreverredwood.com...
  • Page 2 DRAWING Posts Bottom Panels Upper Panels Front support timber with decorative cantilevers Roof timbers (two of each one) Quantity will Roof panels vary depending on size Skylight Quantity will Rafters vary depending on size Plaques for corners Lattice Gazebo www.foreverredwood.com...
  • Page 3 Note: print the drawings that you approved before start the construction, they are needed to see the distances between the posts. Step 1. Attach your anchor kit (if you ordered) to the ground. See the distance between the posts shown in your approved drawings. Lattice Gazebo www.foreverredwood.com...
  • Page 4 Step 3: Attach front support timber with decorative cantilevers to posts with deck screws (3”X #8) into each post. Match up the numbers to attach the two ends to the correct sides. Lattice Gazebo www.foreverredwood.com...
  • Page 5 Attach 6 of the center rafters to the rooftop with bolts (4”x 5/16”) washers & nuts. One per rafter. (Match up the numbers to attach the two parts together). Tap the bolt all the way into the wood to set it. Then add a washer and nut and lightly tighten. Lattice Gazebo www.foreverredwood.com...
  • Page 6 Attach the roof panels to rafters with deck screws (#8 x 3”) (Match up the numbers to attach the two parts together). Tap the bolt all the way into the wood to set it. Then add a washer and nut and lightly tighten. Continue with the other roof panels. Lattice Gazebo www.foreverredwood.com...
  • Page 7 This completes the Gazebo assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. Lattice Gazebo www.foreverredwood.com...
