OWNER'S MANUAL
PARTS &
INSTALLATION MANUAL
HT45KX SERIES
Included in this manual:
HT45KX (VLC)

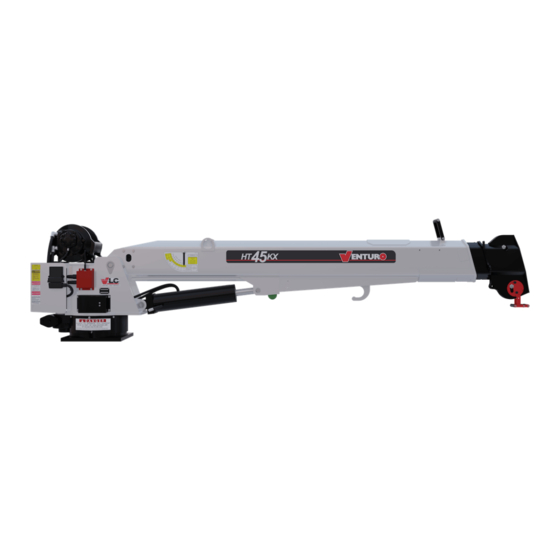

 7,500 lb Hydraulic Telescopic Service Crane
 Venturo Logic Control System w/ Proportional Control
 20, 25, or 30 ft Fully-Powered, Two-Stage Boom Extension
VENCO VENTURO INDUSTRIES LLC
12110 BEST PLACE | CINCINNATI, OHIO 45241
This manual also available online at www.venturo.com.
INST-26924
HUBA*B-V*A0
800-226-2238
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT45KX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Venturo HT45KX Series

Summary of Contents for Venturo HT45KX Series

  • Page 1 Included in this manual: HT45KX (VLC)  7,500 lb Hydraulic Telescopic Service Crane  Venturo Logic Control System w/ Proportional Control  20, 25, or 30 ft Fully-Powered, Two-Stage Boom Extension VENCO VENTURO INDUSTRIES LLC 12110 BEST PLACE | CINCINNATI, OHIO 45241 800-226-2238 This manual also available online at www.venturo.com.

  • Page 3: Warranty Page

    SAFETY DECALS DRAWING & LIST 28526 SAFETY DECALS DRAWING & LIST 23749 BOOM CAPACITY DECALS; HT45 SERIES 23748 DECALS; VENTURO LOGIC CONTROLS (VLC) 7607200A SECTION 200: INSTALLATION 26900 CRANE INSTALLATION (PAGE 1 OF 2) 23752 CRANE INSTALLATION (PAGE 2 OF 2)

  • Page 5: Specifications

    SECTION 100 DESCRIPTION & SPECIFICATIONS VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO 7607100A...

  • Page 6: Installation Dimensions

    16' - 9 " 20' - 9 " CRANE OAL: RETRACTED: 12' - 6" EXTENDED: 22' - 5 " CENTER OF ROTATION TITLE DATE SECTION C100 INSTALLATION DIMENSIONS ® 05-25-23 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26894 HT40/45/50KX-20' BOOM...
  • Page 7 11' - 11" 18' - 8" CENTER OF ROTATION 25' - 2" OAL: RETRACTED = 13' 10 " EXTENDED = 26' 10 " TITLE DATE SECTION C100 INSTALLATION DIMENSIONS ® 05-25-23 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26893 HT40/45/50KX-25' BOOM...
  • Page 8 4' 5 " 13' 6 " 30' 2" CENTER OF ROTATION OAL: RETRACTED = 15' 6 " EXTENDED = 31' 10 " TITLE DATE SECTION C100 INSTALLATION DIMENSIONS ® 05-26-23A VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24161 HT45KX-30' BOOM 04-23-20...

  • Page 9: Mounting Dimensions

    HT40/45/50KX SERIES MOUNTING DIMENSIONS " " Ø6.0" MIN FOR HOSE CLEARANCE " 4X Ø1 " TITLE DATE SECTION C100 MOUNTING DIMENSIONS 05-25-23 ® VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26892 HT40/45/50KX SERIES...
  • Page 10 HT45KX, 10' - 16' - 20' BOOM, WITH VENTURO LOGIC CONTROL SYSTEM AND 7,500 LB CAPACITY CRANE SERIAL NUMBER: ____________________ MAXIMUM LOAD CAPACITY CHART 7050 5550 4050 7500 3150 7000 5300 2600 4000 3400 2400 7500 7500 7500 3050 7000...
  • Page 11 HT45KX, 12' - 18.5' - 25' BOOM, WITH VENTURO LOGIC CONTROL SYSTEM AND 7,800 LB CAPACITY CRANE SERIAL NUMBER: ____________________ MAXIMUM LOAD CAPACITY CHART 5100 4500 2800 2250 7350 6000 1900 4000 3050 1650 2550 7800 7800 6450 2250 5150...
  • Page 12 HT45KX, 13' - 22' - 30' BOOM, WITH VENTURO LOGIC CONTROL SYSTEM AND 7,800 LB CAPACITY CRANE SERIAL NUMBER: ____________________ MAXIMUM LOAD CAPACITY CHART 4800 3750 2650 2050 7000 5500 1700 4550 3100 1550 2650 7800 7500 6700 2350 5250...
  • Page 13 SECTION 150 SAFETY VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO 7607150A...

  • Page 14: Electrocution Hazard

    NOTE: ENVIRONMENTAL CONDITIONS SUCH AS FOG, SMOKE, OR PRECIPITATION MAY REQUIRE INCREASED CLEARANCES TITLE DATE SECTION ® HAZARD APPS & INFO C150 02-21-14M VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 15394 ET/HT CRANES 12-20-13L...
  • Page 15 CHART). ADDITIONAL CLEARANCES ARE REQUIRED FOR VOLTAGES IN EXCESS OF 50,000 VOLTS. REFER TO DRAWING 15394 FOR ADDITIONAL INFORMATION. DEATH OR SERIOUS INJURY WILL RESULT FROM CONTACT OR INADEQUATE CLEARANCE. TITLE DATE SECTION ® CRANE SAFETY & HZRDS C150 02-21-14D VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 920612 HYDRAULIC CRANES 04-04-12C...
  • Page 16 ASSIST WIRE ROPE CLAMP IN HOLDING LOAD WARNING · Winches are not to be used to lift, support, or otherwise transport personnel TITLE DATE SECTION ® WINCH SAFETY C150 02-21-14D VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 19217 HT CRANES 04-04-12C...
  • Page 17 FUNCTION: To inform the operator of manual overide locations. BOOM BOOM QUANTITY: PLACEMENT: Inside of rear cover. BOOM BOOM DOWN TITLE DATE SECTION DECAL DRAWING & LIST C150 11-30-22E VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22181A HT40/50/60/66 SERIES 02-21-14D...
  • Page 18 To inform the operator of OF CRANE FUNCTIONS, manual override locations. REMOVE REAR COVER AND SEE INSTRUCTIONS QUANTITY: INSIDE. 20834-B PLACEMENT: Inside rear cover. TITLE DATE SECTION DECAL DRAWING & LIST C150 04-14-23H VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22181B HT40/50/60/66 SERIES 11-30-22G...
  • Page 19 PART NO.: 22499 DECAL: KNOW YOUR SIGNALS FUNCTION: To inform the operator of proper signals. QUANTITY: 1 PLACEMENT:Right side of rear cover. TITLE DATE SECTION DECAL DRAWING & LIST C150 11-30-22F VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22181C HT40/50/60/66 SERIES 02-21-14E...
  • Page 20 PLACEMENT: In prominent location, so it is easily seen and readily ZONE 7 ZONE 4 ZONE 6 ZONE 5 identifiable. 20927 TITLE DATE SECTION ® DECAL DRAWING & LIST C150 06-19-23 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 28526 HT45KX...
  • Page 21 I N T E N T I O N A L L Y L E F T B L A N K TITLE DATE SECTION ® BOOM CAPACITY DECALS C150 06-29-21D VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23749 HT45 SERIES 05-28-20C...
  • Page 22 23742 DECAL: VLC, 2.94" x 6.00" FUNCTION: To show that the crane is equipped with Venturo Logic Controls QUANTITY: 2 each PLACEMENT: Each side of Housing S P A C E I N T E N T I O N A L L Y...

  • Page 23: Installation

    SECTION 200 INSTALLATION VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO 7607200A...
  • Page 24 400 degree rotation range -- regardless of the final position of the boom during storage/travel. See installation pages 22913 for more information on hose connections. TITLE DATE SECTION ® CRANE INSTALLATION C200 05-23-23 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26900 HT45KX VLC SERIES...
  • Page 25 If your crane was purchased with optional engine start/stop and throttle control, refer to drawing 22615 in the replacement parts section for further information. TITLE DATE SECTION CRANE INSTALLATION C200 08-08-23C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23752 HT45/55 VLC SERIES 05-10-21B...
  • Page 26 STREETSIDE CURBSIDE TITLE DATE SECTION C200 ROTATION STOP LOCATION 03-09-23F VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 20051 05-20-20E...

  • Page 27: Stability Test

    Overview Venturo follows the guidelines of ANSI B30.5 in defining stability. Generally speaking, a truck is considered stable as long as it is not on the verge of tipping - i.e. with the truck level, at least one tire on each corner of the truck must remain in contact with the ground.
  • Page 28 Overview Venturo follows the guidelines of ANSI B30.5 in defining stability. Generally speaking, a truck is considered stable as long as it is not on the verge of tipping - i.e. with the truck level, at least one tire on each corner of the truck must remain in contact with the ground.
  • Page 29 Overview Venturo follows the guidelines of ANSI B30.5 in defining stability. Generally speaking, a truck is considered stable as long as it is not on the verge of tipping - i.e. with the truck level, at least one tire on each corner of the truck must remain in contact with the ground.
  • Page 30 % of Rated Capacity for each of the 10 regions are provided above. CONDITIONS: · STABILIZERS FULLY EXTENDED & DOWN, ON FIRM LEVEL GROUND. TITLE DATE SECTION ® STABILITY CHART C200 05-11-17F VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 20907 VENTURO CRANES 02-21-14E...

  • Page 31: Mounting Dimension

    MEASUREMENTS INCLUDE MOUNTING APARATUSES 4" 5.5" 40" 42" 2" 2" 2" 2" 5" 5" 18" 20" MEASUREMENTS EXCLUDE MOUNTING APARATUSES TITLE DATE SECTION ® C200 RESERVOIR DIMENSIONS 02-21-14E VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22825 HYD. TANKS (25/40 GAL.) 06-04-13D...
  • Page 32 * HOSES AND FITTINGS BETWEEN PUMP, RESERVOIR, AND THE WINCH MUST HAVE AN 'NON-CLOSED CENTER CRANE NOT INCLUDED. UNRESTRICTED PATH TO TANK/ TRANSITION' TYPE. RESERVOIR. TITLE DATE SECTION HYDRAULIC COMPONENT INSTALLATION C200 08-08-23G VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22883 HT40-66, PROPORTIONAL 11-10-22F...

  • Page 33: Connection Guide

    SELECTOR VALVE MUST BE THE WINCH MUST HAVE AN 'NON-CLOSED CENTER UNRESTRICTED PATH TO TANK/ TRANSITION' TYPE. RESERVOIR. TITLE DATE SECTION CONNECTION GUIDE, PAGE 1 / 2 C200 08-09-23C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23015 HT CRANES 02-21-14B...
  • Page 34 INCLUDING HOSE SELECTOR VALVE MUST BE THE WINCH MUST HAVE AN SPECIFICATIONS 'NON-CLOSED CENTER UNRESTRICTED PATH TO TANK/ TRANSITION' TYPE. RESERVOIR. TITLE DATE SECTION CNNCTN GDE, PAGE 2/2 C200 08-08-23C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23014 HT CRANES 02-21-14B...
  • Page 35 HOSES TO AUGMENT SWIVELS CAUTION CAUTION SELECTOR VALVE MUST BE CASE DRAIN MUST RETURN 'NON-CLOSED CENTER DIRECTLY TO RESERVOIR TRANSITION' TYPE VALVE. WITHOUT RESTRICTION. TITLE DATE SECTION CONNECTIONS GUIDE C200 08-07-23G VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22913 HT CRANES 02-21-14F...

  • Page 36: Wire Rope Installation

    SOME WINCHES MAY BE SUPPLIED WITH A HEX NUT IN LIEU OF A WEDGE FOR INSTALLING THE WIRE ROPE. TITLE DATE SECTION ® WIRE ROPE INSTALLTN C200 02-21-14K VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22245 ET6K & LARGER CRANES 12-26-13J...

  • Page 37: Operation

    SECTION 300 OPERATION & MAINTENANCE VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO 7607300B...
  • Page 38 Periodic Change - after every 300 hours of operation or two years. Winch Gear Oil High quality SAE 90 gear lubricant oil Severe Duty Swepco #201 multi-purpose gear oil TITLE DATE SECTION MAINTENANCE INFO C300 11-10-22D VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23203 HT25/30/40/50/60/66KX(P) 02-21-14C...
  • Page 39 Avoid repeated rapid reversals of the control switches. This can cause the load to swing. Check all control functions to see that they are working as described in the following section. TITLE DATE SECTION CRANE OP / MNTNC INST C200 08-08-23A VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23753 HT CRANES 10-11-18...
  • Page 40 The "Rotation" function also will continue to operate. VENTURO LOGIC CONTROL (VLC) SYSTEM This crane is equipped with Venturo's logic control system. The receiver collects data from the boom tilt sensor and hydraulic pressure transducer, and translates the results to one of the following actions: BOOM/RECEIVER...
  • Page 41 Remove rear cover and check all hydraulic tube and hose fittings for tightness. Check electrical connections for looseness and corrosion . TITLE DATE SECTION ® CRANE OP / MNTNC INST C200 10-11-18 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23755 HT40/50 VLC SERIES...
  • Page 42 RIGHT SIDE VIEW MANUAL OVERRIDE SYSTEM Should an electrical failure occur, your Venturo crane can be operated manually. The manual overrides are intended for emergency use only and should not be used for normal operation. To operate in manual override mode:...
  • Page 43 LOAD BLOCK HOOK: RATING: 5 TONNE (11,023 LBS) DIMENSIONS: TERMINATES IN THIMBLE COLOR BRAND NO HOOK GOLD CROSBY 2.50" 9.69" 7.50" TITLE DATE SECTION C300 WIRE ROPE & HOOK SPECIFICATIONS 05-09-16D VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23231 HT40/50KX 02-21-14C...
  • Page 45 SECTION 400 REPLACEMENT PARTS VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO 7607400A...
  • Page 46 REFERENCE 26902 FOR REPLACEMENT PARTS LIST TITLE DATE SECTION C400 REPLACEMENT PARTS DRWNG - MECHANISM ® 05-25-23 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26901 HT45KX VLC SERIES...
  • Page 47 * THESE ITEMS ARE INCLUDED IN 23720 KIT. PLEASE CALL TECHNICAL SUPPORT AT 1-800-226-2238 FOR ASSISTANCE. REFERENCE 26901 FOR REPLACEMENT PARTS DRAWING TITLE DATE SECTION C400 REPLACEMENT PARTS LIST - MECHANISM 04-19-24 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26931 HT45KX VLC SERIES...
  • Page 48 18 14 14 26 17 25 3 31 30 REFERENCE 26904 FOR REPLACEMENT PARTS LIST TITLE DATE SECTION C400 RPLCMNT FASTENERS DRWNG - MECHANISM 03-29-24A VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26903 HT45KX VLC SERIES 05-25-23...
  • Page 49 HHCS = HEX HEAD CAP SCREW, SHCS = SOCKET HEAD CAP SCREW, PMS = PAN MACHINE SCREW, S/S = STAINLESS STEEL REFERENCE 26903 FOR REPLACEMENT PARTS DRAWING TITLE DATE SECTION C400 RPLCMNT FASTENERS LIST - MECHANISM 03-29-24A VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26904 HT45KX VLC SERIES 05-25-23...
  • Page 50 REFERENCE #24044 FOR REPLACEMENT PARTS LIST TITLE DATE SECTION C400 RPLCMNT PARTS DRAWING - 21410 BOOM 02-08-21C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24043 HT45KX-20' VLC SERIES 01-04-21B...
  • Page 51 LOAD BLOCK ASSEMBLY (HT50) 17949 * THESE ITEMS ARE INCLUDED IN 23720 KIT REFERENCE #24043 FOR REPLACEMENT PARTS DRAWING TITLE DATE SECTION C400 REPLACEMENT PARTS LIST - 21410 BOOM 04-24-24G VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24044 HT40/45/50 - 20' 09-07-23F...
  • Page 52 REFERENCE #24046 FOR REPLACEMENT PARTS LIST TITLE DATE SECTION C400 RPLCMNT FASTENERS DRWNG - 21410 BOOM 02-09-21A VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24045 HT45KX-20' VLC SERIES 05-16-19...
  • Page 53 CACS = COUNTERSUNK ALLEN HEAD CAP SCREW PMS = PAN MACHINE SCREW REFERENCE #24045 FOR REPLACEMENT FASTENERS DRAWING S/S = STAINLESS STEEL TITLE DATE SECTION C400 PLCMNT FASTENERS LIST - 21410 BOOM 02-09-21A VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24046 HT45KX-20' VLC SERIES 05-16-19...
  • Page 54 REFERENCE #23861 FOR REPLACEMENT PARTS LIST TITLE DATE SECTION C400 RPLCMNT PARTS DRAWING - 23107 BOOM 01-03-23E VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23860 HT45/55/60KX-25' VLC SERIES 12-01-22D...
  • Page 55 * THESE ITEMS ARE INCLUDED IN 23720 KIT ** NOT SHOWN ON DRAWING ASS'Y; WORK LIGHT, LED 27483 REFERENCE #23860 FOR REPLACEMENT PARTS DRAWING TITLE DATE SECTION C400 REPLACEMENT PARTS LIST - 23107 BOOM 04-24-24M VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23861 HT40/45/50/55/60KX-25' 03-26-24L...
  • Page 56 REFERENCE #23863 FOR REPLACEMENT PARTS LIST TITLE DATE SECTION C400 RPLCMNT FASTENERS DRWNG - 23107 BOOM 01-03-23C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23862 HT45/55/60KX-25' VLC SERIES 02-22-21A...
  • Page 57 REFERENCE #23862 FOR REPLACEMENT FASTENERS DRAWING HHCS = HEX HEAD CAP SCREW PMS = PAN MACHINE SCREW S/S = STAINLESS STEEL TITLE DATE SECTION C400 PLCMNT FASTENERS LIST - 23107 BOOM 01-03-23C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23863 HT45/55/60KX-25' VLC SERIES 11-29-22B...
  • Page 58 TITLE DATE SECTION C400 REPL PARTS DWG, 30' BOOM, 23880 04-05-24E VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24164 HT45/55/60KX-30' VLC SERIES 11-10-22D...
  • Page 59 REPLACEMENT PART LIST, 30' BOOM 23880 TITLE DATE SECTION C400 04-05-24G REPL PART LIST, BOOM 23880 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24165 HT45/55/60KX-30' VLC SERIES 09-07-23F...
  • Page 60 16 17 TITLE DATE SECTION C400 REPL HARDWARE DWG, 30' BOOM 23880 11-10-22C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24166 HT45/55/60KX-30' VLC SERIES 04-29-22B...
  • Page 61 RPLCMNT H/W LIST, 30' BOOM 23880 TITLE DATE SECTION C400 REPL HW LIST, BOOM 23880 11-10-22C VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 24167 HT45/55/60KX-30' VLC SERIES 04-29-22B...
  • Page 62 It is recommended to actuate the winch up function slowly, which will yield a consistent and repeatable result, in terms of wire rope tension when stowed. Contact Venturo Tech Support for assistance. 1-800-226-2238 ext. 124 TITLE DATE SECTION...
  • Page 63 TI1 & TI2 WINCH REPLACEMENT PARTS DRAWING 20743 CABLE WEDGE 23876 HYDRAULIC MOTOR WINCH SEALS PACKAGE 23874 23848 TITLE DATE SECTION ® TI1 & TI2 REPLACEMENT PARTS DRAWING C400 05-30-23 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26896 HT40/45/50KX...
  • Page 64 REPLACEMENT PARTS DRAWING, HYDRAULIC COMPONENTS RL RR SHOWN WITH HT45 APPLICABLE TO HT55 REFERENCE #23865 FOR LIST RL RR TITLE DATE SECTION C400 REPLACEMENT PARTS, HYD. COMPONENTS 04-27-21D VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23864 HT45/55 VLC SERIES CRANES 03-25-21C...

  • Page 65: Replacement Parts List

    REPLACEMENT PARTS LIST; HYDRAULIC COMPONENTS REFERENCE #23864 FOR REPLACEMENT PARTS DRAWING TITLE DATE SECTION C400 04-19-24 REPLACEMENT PARTS LIST VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 26932 HT45/55 VLC SERIES...
  • Page 66 WINCH RELIEF VALVE 22312-2.25 PRIORITY FLOW VALVE (BOOM EXTENSION) 22873 22312-4.00 VALVE SECTION ASSY PRIORITY FLOW VALVE (BOOM ELEVATION) 22523 VALVE SECTION ASSY TITLE DATE SECTION C400 22736 REPLACEMENT PARTS 04-19-24H VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22940 HT40/50/60/66KX PROPORTIONAL 11-10-22G...
  • Page 67 +12V WHITE WIRE TO (+) TERMINAL STRIP BLACK WIRE GND BLACK WIRE TO 14-PIN PLUG, A2B WIRE WORK LIGHT TITLE DATE SECTION WORK LIGHT INSTALLATION, 3-WIRE CORD REEL 03-03-23A C400 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 28188 VLC CRANES 02-05-21...

  • Page 68: Wiring Diagram

    1 Supply (+) Inclinometer 2 Supply (-) Ref. P/N 23730 3 CAN-H 4 CAN-L 23437 SHOWS RIGHT SIDE OF WIRING DIAGRAM TITLE DATE SECTION C400 WIRING DIAGRAM, PG. 1 08-05-20F VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23436 HT45KX VLC SERIES 04-28-20E...
  • Page 69 12v (+) TERMINAL BLK GND. (-) TERMINAL BLK HORN RELAY GND. (-) TERMINAL BLK HORN 23436 SHOWS LEFT SIDE OF WIRING DIAGRAM TITLE DATE SECTION C400 WIRING DIAGRAM, PG. 2 08-29-23L VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23437 HT45KX VLC SERIES 03-27-23K...

  • Page 70: Winch Motor

    SVD4 3 POSITION - 4 WAY VALVE ROTATION MOTOR CASE DRAIN 0.020 EXTENSION CYLINDER C1030 PRESSURE TRANSDUCER C1030 ELEVATION CYLINDER PRESSURE TRANSDUCER TITLE DATE SECTION C400 HYDRAULIC SYSTEM DIAGRAM 12-04-23B VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23868 HT45/55 VLC SERIES 12-11-20A...
  • Page 71 RED - 14 GAGE ELECTRICAL WIRE - 15 FEET LONG 01181 BUSS BAR 22619 BLACK - 16GA WIRE ASSY - 6" LONG W/ 3 INCH PIGTAIL TITLE DATE SECTION ENGINE START / STOP ® C400 THROTTLE CONTROL 06-09-20F VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 22615 HT CRANES 02-21-14E...
  • Page 72 HYDRAULIC RESERVOIR - 25 GAL (18" x 40" x 8") 22998 HYDRAULIC RESERVOIR - 40 GAL (20" x 42" x 11") ITEM PART NUMBERS DESCRIPTION TITLE DATE SECTION RESERVOIR KIT REPL PARTS C400 12-09-22D VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 23224 HT CRANES; 25/40 GAL RESERVOIR 08-04-15C...

  • Page 73: Decal Placement

    IN S ID E T H E R E AR C O VE R FIELD SERVICE LABEL KITS: 23742 23739 - HT45KX-VLC TITLE DATE SECTION C400 DECAL PLACEMENT ® 06-19-23 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 28527 HT45KX VLC SERIES...
  • Page 74 PART # DESCRIPTION DECAL; HORN RELAY 16184-1 DECAL; WORK LIGHT RELAY 16184-2 28525 DECAL; MODEL HT45KX DECAL; VENTURO LOGO, MEDIUM 17389 DECAL; VLC MODEL SERIES 23741 DECAL; BOOM CAPACITY, 10-16-20, RIGHT 23462 23463 DECAL; BOOM CAPACITY, 10-16-20, LEFT DECAL; BOOM CAPACITY, 12-18.5-25, RIGHT 23464 DECAL;...

  • Page 75: User Notes

    USER NOTES DATE PAGE USER NOTES 02-23-16 VENCO VENTURO INDUSTRIES LLC CINCINNATI, OHIO SUPERSEDES 25431 INSTALLATION MANUALS...
  • Page 76 1-Year Limited Warranty Policy This limited policy warrants new products of Venturo to be free from defects in material and workmanship for a period of one (1) year from date of original installation. OEM products or accessories purchased by Venturo as part of or offered with our product will carry the OEM manufacturer’s respective warranty.
