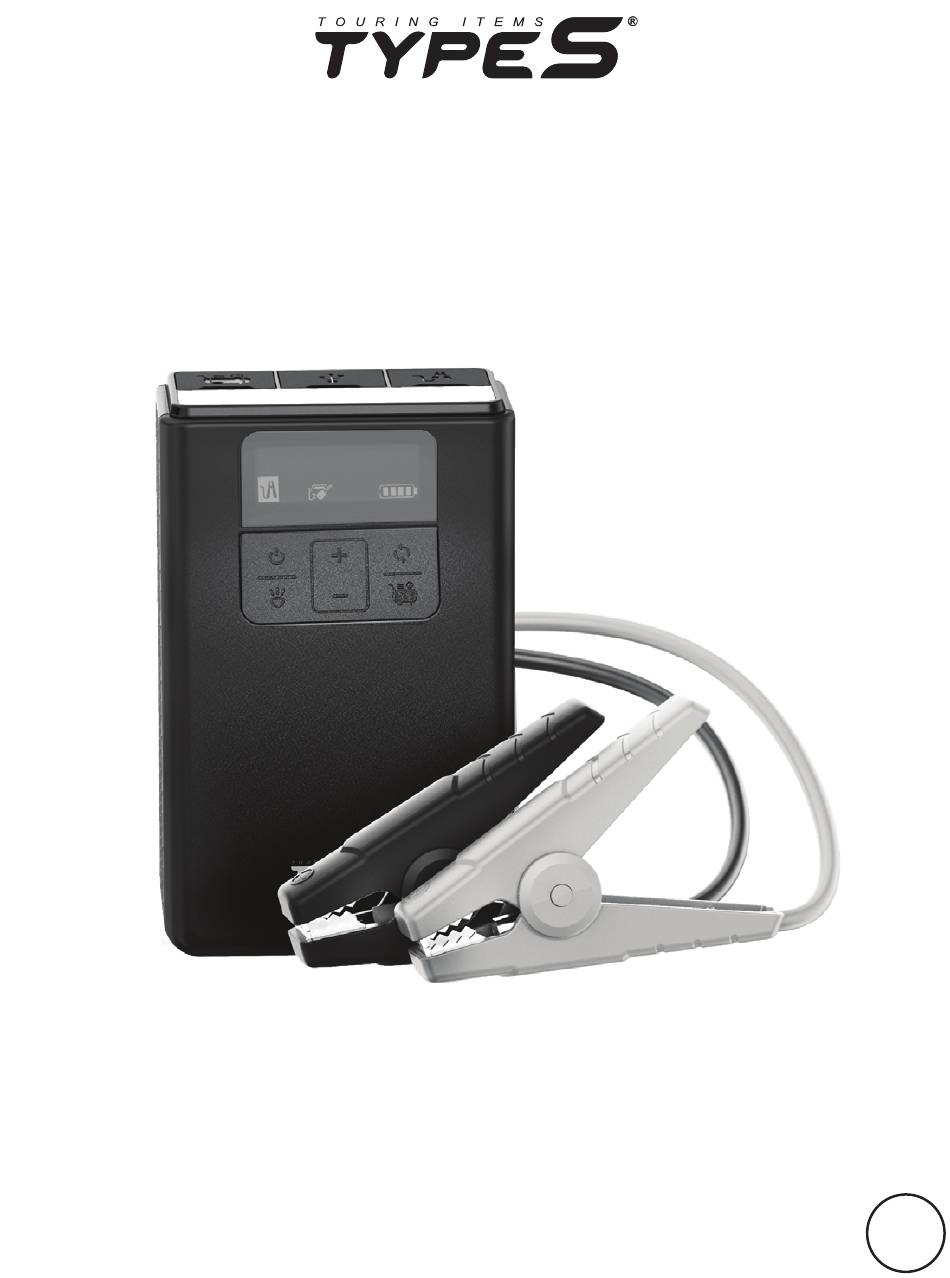

- Page 1 PORTABLE JUMP STARTER WITH AIR INFLATOR WP ITM. AC533150 User Manual IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS: Inflation Pressure: 150PSI (max) Product Dimensions: 3.2 x 5.9 x 2.7 in (81 x 150 x 68mm) Product Weight: 1.65 lbs (750g) Internal Battery: Lithium Iron Phosphate Battery Capacity: 25.6Wh 12.8V Input (USB-C): 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 2.25A USB-A Output: 5V 2.4A / 9V 2A / 12V 1.5A USB-C Output:... -
Page 3: Battery Disposal
WARNING: INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS • Always wear safety glasses when jump starting a battery (to protect your eyes), and gloves when handling a battery (to protect your hands). • When jump starting a vehicle please ensure that the gray plug is securely fitted into the jump starter socket on the jump starter. -
Page 4: Important Safety Instructions
WARNING CONT.: IMPORTANT SAFETY INSTRUCTIONS WARNING - When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. - Page 5 Do not use this device to jump start batteries outside of these four types of vehicles; doing so may cause a fire or other serious injuries. Refer to the user manual for additional safety information.
-
Page 6: Package Contents
PACKAGE CONTENTS: F lexible Hose (Schrader Valve) Portable Jump 12V Car Charger & Safe & Smart Presta Valve Adapter Storage Bag Ball needle adapter Starter With Air Inflator USB-C Charging Cable Jumper Cables Inflatables Adapter ... -
Page 7: Charging The Jump Starter
CHARGING THE JUMP STARTER: At home: USB-C USB-C USB-A USB-A to USB-C Cable (included), USB-C to USB-C Cable (not included) 1. Plug one end of USB-C Charging Cable into a USB-A / USB-C port on a 18W (or above) wall adapter (not included). 2. -
Page 8: Jump Starting
JUMP STARTING: BEFORE YOU JUMP START! Before you attempt to jump start your vehicle, ensure your vehicle is in Park. Unplug all USB charging cables. Ensure manual transmission vehicles are in Neutral with the Emergency Brake engaged. The Cable Clamps are color-coded, Black POSITIVE (+) and BLACK for NEGATIVE (-). - Page 9 JUMP STARTING CONT.: 3. Connect the clamp to the POSITIVE (+) post on the car battery. The POSITIVE battery post will be slightly larger than the NEGATIVE post, and will be marked with a PLUS (+) sign. There may also be a plastic protective cover over the positive battery post.
- Page 10 JUMP STARTING CONT.: The engine should start if there are no other problems (such as a bad starter or ignition circuit problem). Do not attempt to jump start the vehicle more than 3 times with the Jump Starter. If the vehicle fails to start after 3 attempts, it is likely due to alternative reasons that should be checked by an auto mechanic.
- Page 11 JUMP STARTING CONT.: Polarity Protection Circuit Status Status (Light & Sound Indicator) Status Meaning Red Light Green Light Sound None The car battery is ready for jump start None The Jump Starter needs to be charged None The car battery is ready for jump start. If the indicator doesn’t turn solid Green, the car battery voltage is higher than the Jump Starter.
- Page 12 INFLATION ACCESSORIES INFLATION ACCESSORIES Air Hose + Schrader Valve Presta Valve Adapter Ball Needle Adapter Inflatables Adapter ATTACHING THE AIR HOSE Locate the Inflation Port (reference location #4 on page 2). Insert the Air Hose into the Inflation Port, then rotate the connector clockwise. Tighten by hand only. TIRE INFLATION 1.
- Page 13 PRESSURE REFERENCE KG/CM2 30-40 207-276 2.1-2.8 2.1-2.8 Motorcycle 26-40 179-276 1.8-2.8 1.8-2.8 Bike 30-50 207-345 2.1-3.4 2.1-3.5 (SCHRADER) Presta 70-130 483-896 4.8-9.0 4.9-9.1 Ball 8-12 55-83 0.6-0.8 0.6-0.8 NOTE: The pressure range values are for reference only. Please refer to the instructions or manual of the item being inflated for exact inflating pressure specifications.
- Page 14 LANTERN & LIGHT MODES Red Light Press twice Strobe Light Press once while in red light mode Hazard Light Press once while in strobe light mode Turn Off Press once while in hazard light mode / Press twice White Light Press and hold for three seconds Strobe Light...
-
Page 15: Conditions Of Warranty
WARRANTY: TYPE S LIMITED WARRANTY TYPE S warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, TYPE S’s liability shall be limited to that set forth in this limited express warranty. -
Page 16: Owner's Responsibilities
WARRANTY CONT.: OWNER’S RESPONSIBILITIES: TYPE S will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS HOURS, MONDAY THROUGH FRIDAY 8:00 AM TO 5:00 PM (Pacific Standard Time). - Page 17 WARRANTY CONT.: FCC Compliance Statement: PORTABLE JUMP STARTER WITH AIR INFLATOR Model: AC533150 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1-866-294-9244 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
-
Page 18: Troubleshooting
TROUBLESHOOTING: Issue Cause Remedy Cannot jump start Wrong clamp Make sure to clamp the RED jumper connection cable to the POSITIVE (+) post on the car battery. And BLACK jumper cable to NEGATIVE (-) post or car interior. Refer to Page 9 for details. 90-Second timer Jump Starter timed out.
