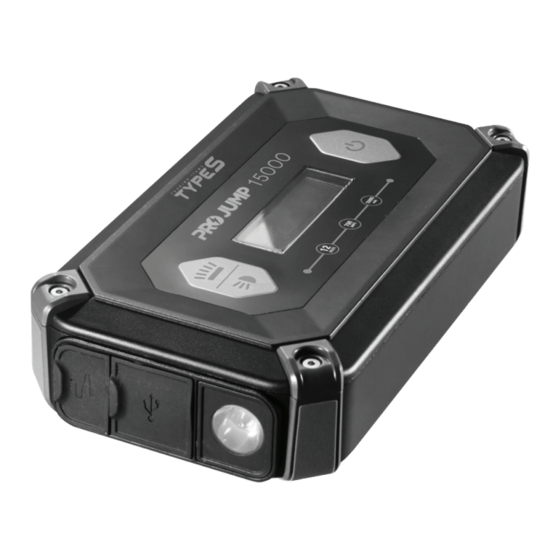

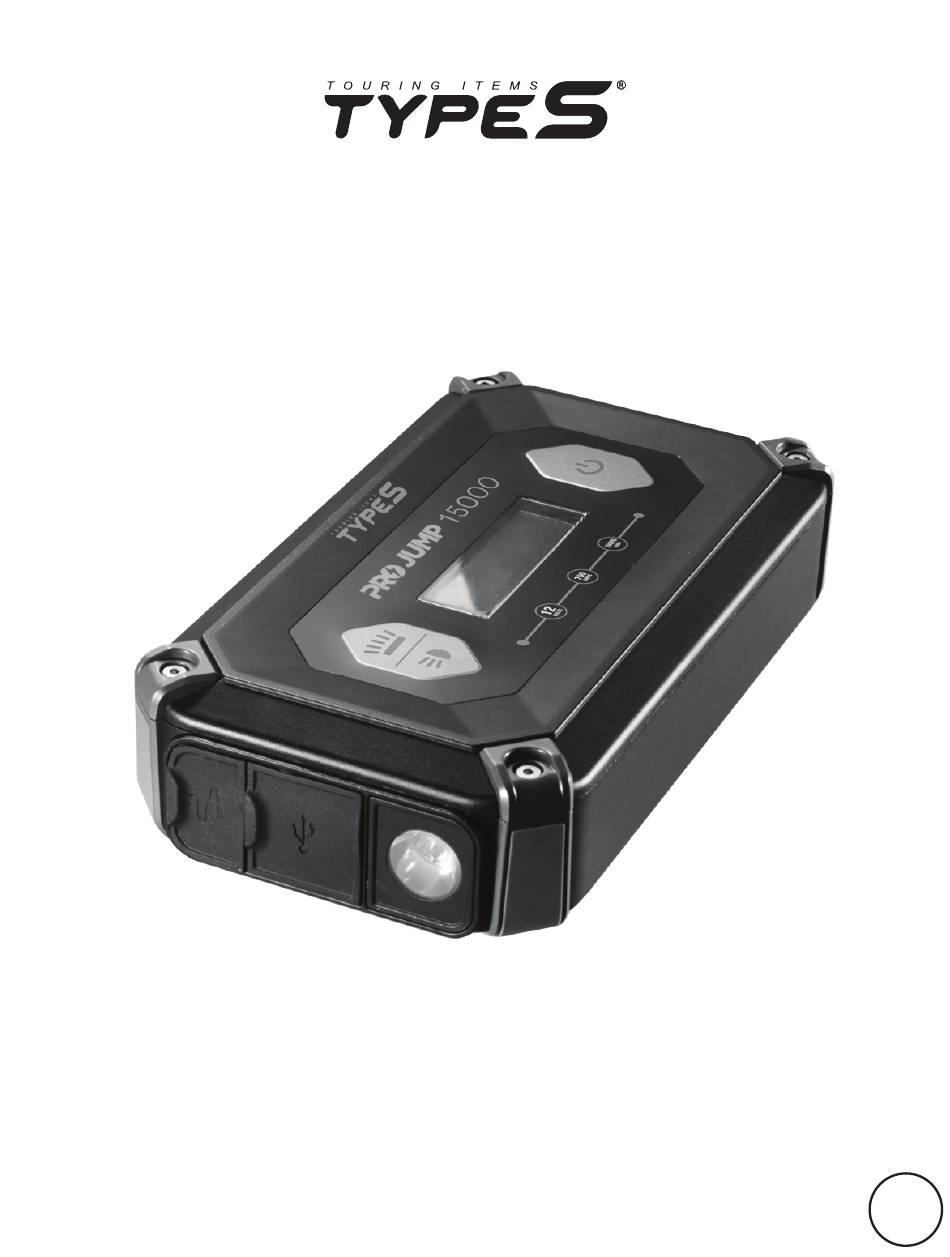

- Page 1 PROJUMP 15000 12V Jump Starter & Portable Power Bank WP ITM. AC532780 User Manual IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS: Product Dimensions: 7.16 × 4.13 × 1.81 in (182 × 105 × 46 mm) Product Weight: 1.80 lb (816 g) Internal Battery: Lithium-Ion Battery Capacity: 55.5 Wh Input (DC Jack): 15V 2A Input (Micro USB): 5V 2A / 9V 2A Input (US B-C): 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 2.25A USB-A Output:... -
Page 3: Battery Disposal
WARNING: INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS • Always wear safety glasses when jump starting a battery (to protect your eyes), and gloves when handling a battery (to protect your hands). • When jump starting a vehicle please ensure that the gray plug is securely fitted into the jump starter socket on the jump starter. -
Page 4: Important Safety Instructions
WARNING CONT.: IMPORTANT SAFETY INSTRUCTIONS WARNING - When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. - Page 5 Do not use this device to jump start batteries outside of these four types of vehicles; doing so may cause a fire or other serious injuries. Refer to the user manual for additional safety information.
-
Page 6: Package Contents
PACKAGE CONTENTS: 12V USB Charger & 110-120V PROJUMP Safe & Smart Storage Case Micro USB AC/DC 15000 Jumper Cables Charging Cable Adapter CHECKING THE POWER LEVEL Press the to check the battery status of the PROJUMP. When charging, the battery indicator will glow. PROJUMP is fully charged when the battery indicator is solid and reads 100%. - Page 7 MIRCO TYPE-A CHARGING THE PROJUMP 15000: TYPE-A MIRCO At home: 110-120V AC Adapter TYPE-C TYPE-C 1. Plug bundled 110-120V AC adapter into wall socket. 2. Connect the DC jack of the AC adapter into the DC charge input port on the PROJUMP.
-
Page 8: Jump Starting
JUMP STARTING: BEFORE YOU JUMP START! Before you attempt to jump start your vehicle, ensure your vehicle is in Park. Unplug all USB charging cables. Ensure manual transmission vehicles are in Neutral with the Emergency Brake engaged. Black The Cable Clamps are color-coded, POSITIVE (+) and BLACK for NEGATIVE (-). - Page 9 JUMP STARTING CONT.: 3. Connect the clamp to the POSITIVE (+) post on the car battery. The POSITIVE battery post will be slightly larger than the NEGATIVE post, and will be marked with a PLUS (+) sign. There may also be a plastic protective cover over the positive battery post.
- Page 10 JUMP STARTING CONT.: Clamp cables to battery. The engine should start if there are no other problems (such as a bad starter or ignition circuit problem). Do not attempt to jump start the vehicle more than 3 times with the PROJUMP. If the vehicle fails to start after 3 attempts, it is likely due to alternative reasons that should Ready, Start vehicle ignition.
- Page 11 JUMP STARTING CONT.: Polarity Protection Circuit Status Status (Light & Sound Indicator) Status Meaning Red Light Green Light Sound None The car battery is ready for jump start None The PROJUMP needs to be charged None The car battery is ready for jump start. If the indicator doesn’t turn solid Green, the car battery voltage is higher than the PROJUMP.
-
Page 12: Language Selection
LANGUAGE SELECTION: Function Action Remarks Turn on the Press the PROJUMP Switch Press and hold for 5 seconds until the Remain in French language word “English” is shown on the LCD screen, mode if product is idle to French then press once to enter French mode. -
Page 13: Conditions Of Warranty
WARRANTY: TYPE S LIMITED WARRANTY TYPE S warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, TYPE S’s liability shall be limited to that set forth in this limited express warranty. -
Page 14: Owner's Responsibilities
WARRANTY CONT.: OWNER’S RESPONSIBILITIES: TYPE S will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS HOURS, MONDAY THROUGH FRIDAY 8:00 AM TO 5:00 PM (Pacific Standard Time). - Page 15 WARRANTY CONT.: FCC Compliance Statement: PROJUMP 15000 Model: AC532780 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1-866-294-9244 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
-
Page 16: Troubleshooting
TROUBLESHOOTING: Issue Cause Remedy Cannot jump start Wrong clamp Make sure to clamp the RED jumper connection cable to the POSITIVE (+) post on the car battery. And BLACK jumper cable to NEGATIVE (-) post or car interior. Refer to Page 8 for details. 90-Second timer PROJUMP timed out.
