Summary of Contents for TypeS AC530013

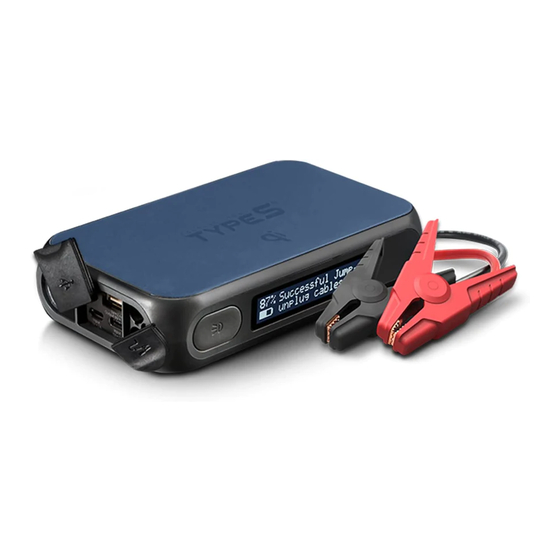

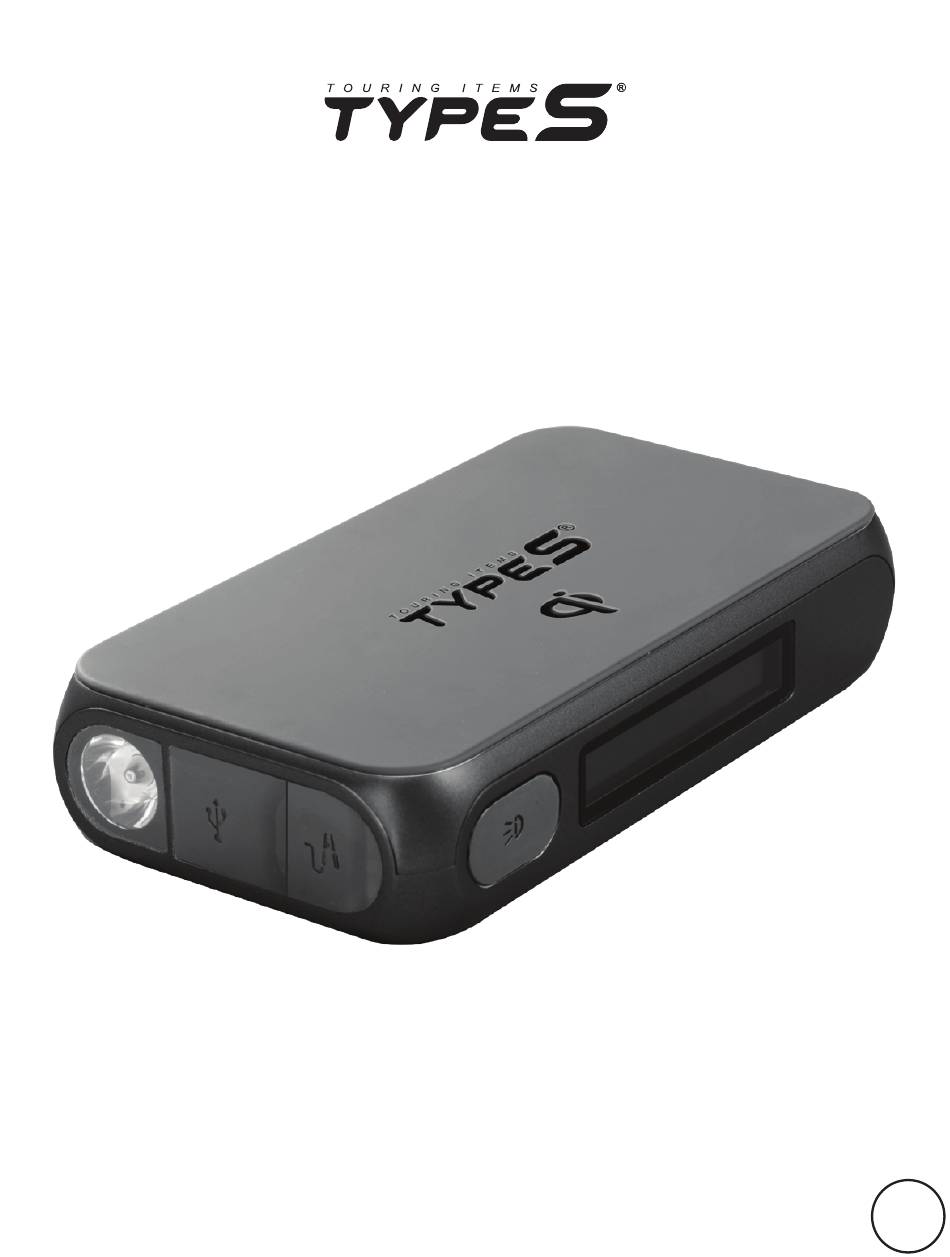

- Page 1 Jump Starter & Portable Power Bank with Wireless Charging WP ITM. AC530013 User Manual...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS: Product Dimensions: 5.94 × 3.3 × 1.26 in (151 × 84 × 32 mm) Product Weight: 0.96 lbs (434g) Internal Battery: Lithium-Ion Capacity: Up to 8000mAh (3.7V) Watt Hours: 29.6 Wh Input (Micro USB / USB-C): 5V 2A USB-A Output: 5V 2.4A USB-C Output:... -
Page 3: Package Contents
PACKAGE CONTENTS: 12V USB Charger & Jump Starter Safe & Smart Storage Case Micro USB Power Bank Jumper Cables Charging Cable CHECKING THE POWER LEVEL Press the Mode Button to check the capacity of the Jump Starter. When charging, the battery indicator will glow. Jump Starter is fully charged when the battery indicator is solid and reads 100%. -
Page 4: Charging Your Mobile Devices
CHARGING YOUR MOBILE DEVICES: We recommend using the original charging cable that came with your mobile device, or an approved cable certified by the mobile device manufacturer. Two mobile devices can be charged at the same time by utilizing both the USB-A and USB-C Output ports. -
Page 5: Jump Starting
JUMP STARTING: BEFORE YOU JUMP START! Before you attempt to jump start your vehicle, ensure your vehicle is in Park. Ensure manual transmission vehicles are in Neutral with the Emergency Brake engaged. The Cable Clamps are color-coded, POSITIVE (+) and BLACK for NEGATIVE (-). DO NOT mix up the cables or allow the metal ends to touch together because this may Black... - Page 6 JUMP STARTING CONT.: 3. Connect the clamp to the POSITIVE (+) post on the car battery. The POSITIVE battery post will be slightly Black larger than the NEGATIVE post, and will be marked with a PLUS (+) sign. There may also be a plastic protective cover over the positive battery post.
- Page 7 JUMP STARTING CONT.: The engine should start if there are no other problems (such as a bad starter or ignition circuit problem). Do not attempt to jump start the vehicle more than 3 times with the Jump Starter. If the vehicle fails to start after 3 attempts, it is likely due to alternative reasons that should be checked by an auto mechanic.
- Page 8 JUMP STARTING CONT.: Polarity Protection Circuit Status Status Meaning: Status (Light & Sound Indicator) Red Light Green Light Sound None The car battery is ready for jump start. None The Jump Starter needs to be charged. None The car battery is ready for jump start. If the indicator doesn’t turn solid Green, the car battery voltage is higher than the jump starter.
-
Page 9: Language Selection
LANGUAGE SELECTION: Function Action Remarks Turn on the jump Press the Mode Button starter Switch language to Press and hold the Mode LED light remains on from 3s Spanish Button for 5 seconds till 5s, light turned off when until the word “English” the word “English”... -
Page 10: Battery Disposal
WARNING: INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS • Always wear safety glasses when jump starting a battery (to protect your eyes), and gloves when handling a battery (to protect your hands). • When jump starting a vehicle please ensure that the gray plug is securely fitted into the jump starter socket on the jump starter. -
Page 11: Important Safety Instructions
WARNING CONT.: IMPORTANT SAFETY INSTRUCTIONS WARNING - When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. - Page 12 WARNING CONT.: 2) Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. 3) Wear complete eye protection and clothing protection. Avoid touching eyes while working with battery. 4) If battery acid contacts skin or clothing, wash immediately with soap and water.
-
Page 13: Conditions Of Warranty
WARRANTY: TYPE S LIMITED WARRANTY TYPE S warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, TYPE S’s liability shall be limited to that set forth in this limited express warranty. -
Page 14: Owner's Responsibilities
WARRANTY CONT.: OWNER’S RESPONSIBILITIES: TYPE S will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS HOURS, MONDAY THROUGH FRIDAY 8:00 AM TO 5:00 PM (Pacific Standard Time). - Page 15 FCC Compliance Statement: Jump Starter & Portable Power Bank with Wireless Charging Model: AC530013 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1-866-294-9244 This device complies with Part 15 of the FCC Rules.
-
Page 16: Troubleshooting
Do not use this device to jump start batteries outside of these four types of vehicles; doing so may cause a fire or other serious injuries. Refer to the user manual for additional safety information.
