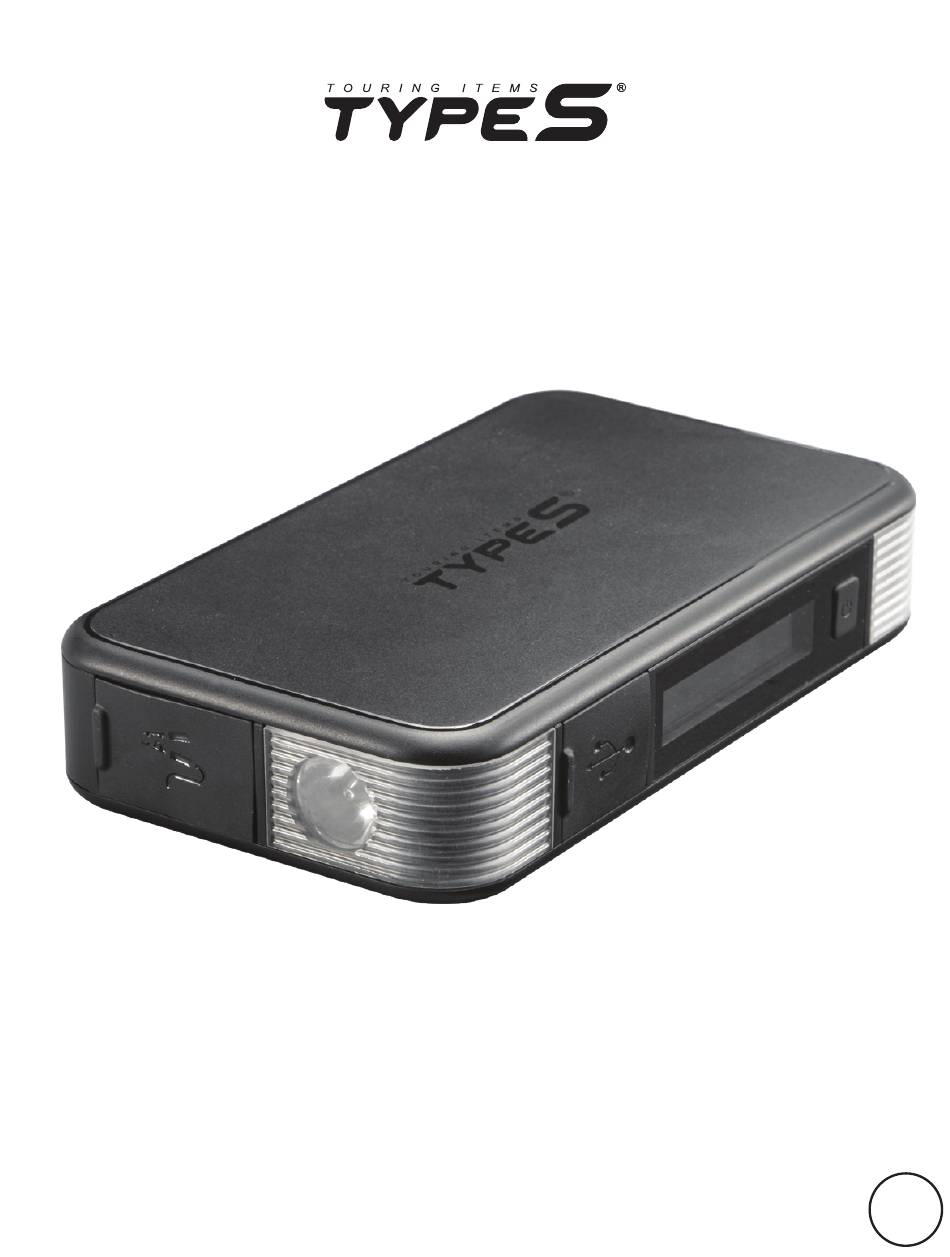

JUMP STARTER &
POWER BANK
ITM. / ART. 1509971
WP ITM. AC532632
User Manual
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
BC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC532632 and is the answer not in the manual?

Questions and answers

Related Manuals for TypeS AC532632

Summary of Contents for TypeS AC532632

  • Page 1 JUMP STARTER & POWER BANK ITM. / ART. 1509971 WP ITM. AC532632 User Manual IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS: Product Dimensions: 6.2 x 3.6 x 1.2 in (158 x 91.5 x 33 mm) Product Weight: 0.9 lbs (410g) Internal Battery: Lithium-Ion Battery Capacity: 29.6 Wh Input (Micro USB): 5V 2A Input (USB-C): 5V 2A / 9V 2A USB-A Output: 5V 2.4A / 9V 2A USB-C Output:...

  • Page 3: Battery Disposal

    WARNING: INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS • Always wear safety glasses when jump starting a battery (to protect your eyes), and gloves when handling a battery (to protect your hands). • When jump starting a vehicle please ensure that the gray plug is securely fitted into the jump starter socket on the jump starter.

  • Page 4: Important Safety Instructions

    WARNING CONT.: IMPORTANT SAFETY INSTRUCTIONS WARNING - When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children.
  • Page 5 Do not use this device to jump start batteries outside of these four types of vehicles; doing so may cause a fire or other serious injuries. Refer to the user manual for additional safety information.

  • Page 6: Package Contents

    PACKAGE CONTENTS: Jump Starter 12V USB Charger & Safe & Smart Storage Case Power Bank Micro USB Jumper Cables Charging Cable CHECKING THE POWER LEVEL Press to check the battery status of the Jump Starter. When charging, the battery indicator will glow. Jump Starter is fully charged when the battery indicator is solid and reads 100%.

  • Page 7: Charging The Jump Starter

    CHARGING THE JUMP STARTER: At home: Micro USB Cable 1. Plug bundled Micro USB Charging Cable into a USB-A port on a computer or 2A USB wall adapter (not included). 2. Connect the Micro USB Charging Cable into the Micro USB Charge Input Port on the Jump Starter. 3.

  • Page 8: Jump Starting

    JUMP STARTING: BEFORE YOU JUMP START! Before you attempt to jump start your vehicle, ensure your vehicle is in Park. Unplug all USB charging cables. Ensure manual transmission vehicles are in Neutral with the Emergency Brake engaged. The Cable Clamps are color-coded, POSITIVE (+) and BLACK for NEGATIVE (-).
  • Page 9 JUMP STARTING CONT.: 3. Connect the clamp to the POSITIVE (+) post on the car battery. The POSITIVE battery post will be slightly larger than the NEGATIVE post, and will be marked with a PLUS (+) sign. There may also be a plastic protective cover over the positive battery post.
  • Page 10 JUMP STARTING CONT.: The engine should start if there are no other problems (such as a bad starter or ignition circuit problem). Do not attempt to jump start the vehicle more than 3 times with the Jump Starter. If the vehicle fails to start after 3 attempts, it is likely due to alternative reasons that should be checked by an auto mechanic.
  • Page 11 JUMP STARTING CONT.: Polarity Protection Circuit Status Status (Light & Sound Indicator) Status Meaning Red Light Green Light Sound None The car battery is ready for jump start None The Jump Starter needs to be charged None The car battery is ready for jump start. If the indicator doesn’t turn solid Green, the car battery voltage is higher than the Jump Starter.

  • Page 12: Language Selection

    LANGUAGE SELECTION: Function Action Remarks Turn on the Jump Starter Press the Switch language Press and hold for 5 seconds until Remain in Spanish to Spanish the word “English” is shown on the LCD mode if product is screen, then press once to enter idle for 5 seconds Spanish mode.

  • Page 13: Conditions Of Warranty

    WARRANTY: TYPE S LIMITED WARRANTY TYPE S warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, TYPE S’s liability shall be limited to that set forth in this limited express warranty.

  • Page 14: Owner's Responsibilities

    WARRANTY CONT.: OWNER’S RESPONSIBILITIES: TYPE S will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS HOURS, MONDAY THROUGH FRIDAY 8:00 AM TO 5:00 PM (Pacific Standard Time).
  • Page 15 WARRANTY CONT.: FCC Compliance Statement: Jump Starter & Power Bank Model: AC532632 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1-866-294-9244 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...

  • Page 16: Troubleshooting

    TROUBLESHOOTING: Issue Cause Remedy Cannot jump start Wrong clamp Make sure to clamp the RED jumper connection cable to the POSITIVE (+) post on the car battery. And BLACK jumper cable to NEGATIVE (-) post or car interior. Refer to Page 8 for details. 90-Second timer Jump Starter timed out.
