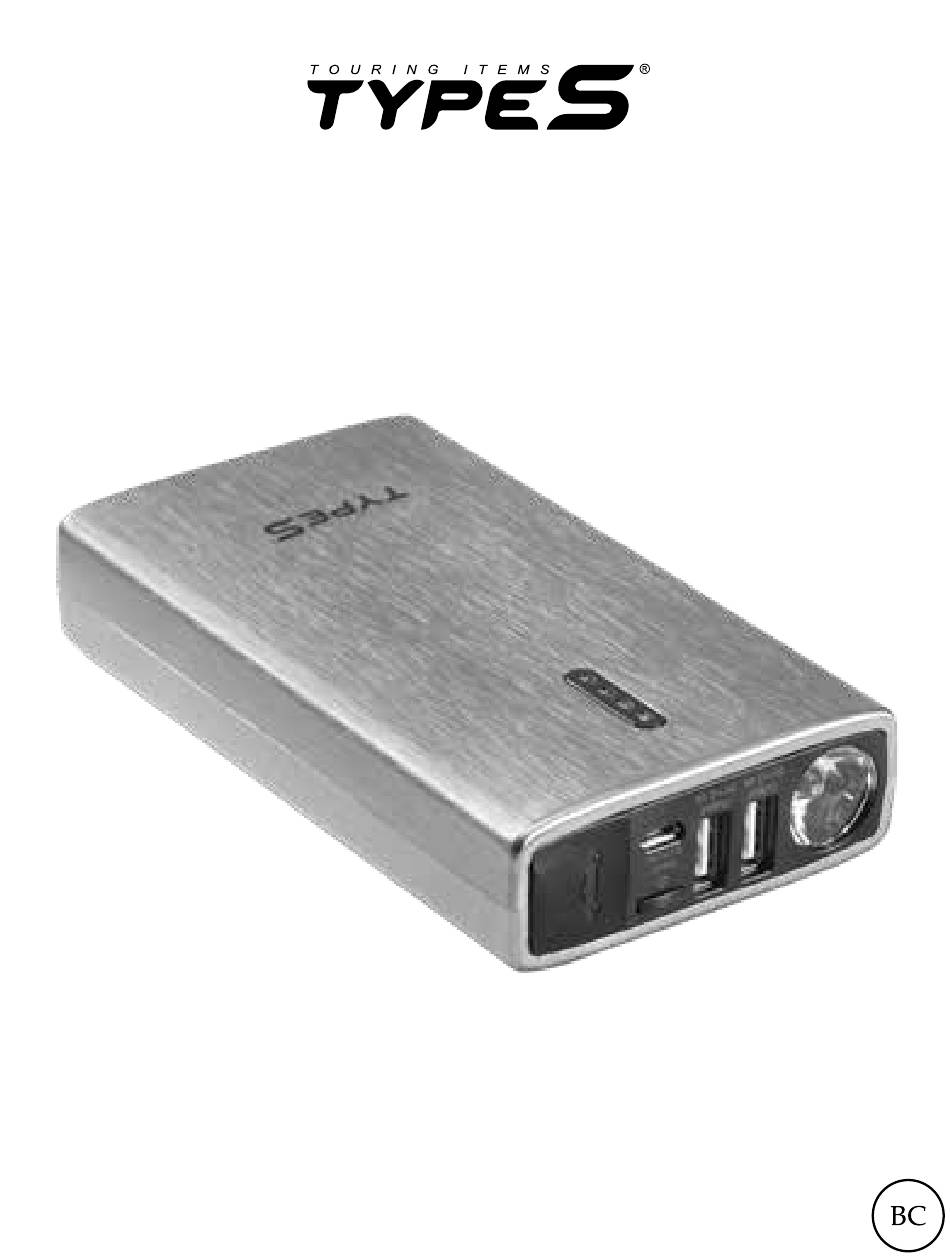

- Page 1 CAR JUMP STARTER & portable power bank AC56388 User Manual...
-
Page 2: Package Contents
PACKAGE CONTENTS: Power Bank Storage Case USB Cable and Car Adaptor User Manual Jumper Cable with Smart & Safe Protection... -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS: Product Dimensions: 5.43 x 3.07 x 1.06 in (138 x 78 x 27 mm) Product Weight: 0.773 lbs (351g) Internal Battery: Lithium-Ion Capacity: Up to 8000 mAh (3.7V) Input Voltage: 5V 2A USB Output Voltage: 5V (2.4A + 2.1A) Jump Start Current: 200A - 350A Operating Temperature: -4ºF ~ 93ºF (-20ºC ~ 34ºC) Storage Temperature:... -
Page 4: Charging The Jump Starter
POWER LEVEL INDICATOR LIGHTS: Press the power button to check the capacity of the Jump Starter. Indicator Lights: 1 Flashing 1 Solid 2 Solid 3 Solid 4 Solid Battery Capacity: Below 5% 5-25% 26-50% 51-76% 76% - Full When charging, the indicator lights will flash one by one. The number of solid lights indicates the battery capacity. -
Page 5: Jump Starting
CHARGING YOUR USB DEVICES: Use the original manufacturer’s USB cable that came with your device and plug into one of the USB output ports. You can charge two devices at the same time. One of the ports has a maximum output of 2.4A while the other has a maximum output of 2.1A. - Page 6 JUMP STARTING CONT.: Press the power button on the Jump Starter once and check that the power level indicator has 3 (51%) or more solid lights. Take the BLUE end of the jumper cable and plug it into the power bank jump start socket which is located underneath the black cover.
- Page 7 JUMP STARTING CONT.: Connect the BLACK clamp to the NEGATIVE (-) post on the car battery. The NEGATIVE will be marked with a MINUS (-) sign. There may also be a BLACK plastic protective cover over the negative battery post. NOTE: Do not connect the clamp (+) and the BLACK clamp (-) at the same time.
- Page 8 JUMP STARTING CONT.: As soon as the engine starts, the indicator box on the BLACK clamp will give red and beep to let you know it is ok to disconnect. Please disconnect the jumper cables from your car within 30 seconds.
-
Page 9: Led Light
JUMP STARTING CONT.: Polarity Protection Circuit Status Status Meaning: Status (Light & Sound Indicator) Red Light Green Light Sound None The car battery is ready to jump start. None The car battery is ready to jump start. If the indicator doesn’t turn solid Green, the car battery voltage is higher than the jump starter. - Page 10 INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS WARNING: • Always wear safety glasses when jump starting a battery (to protect your eyes), and gloves when handling a battery (to protect your hands). • When jump starting a vehicle please ensure that the blue plug is securely fitted into the jump start socket on the jump starter.
-
Page 11: Important Safety Instructions
WARNING CONT.: IMPORTANT SAFETY INSTRUCTIONS WARNING - When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. -
Page 12: Personal Precautions
WARNING CONT.: n) PERSONAL PRECAUTIONS 1) Consider having someone close enough by to come to your aid when you work near a lead-acid battery. 2) Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. 3) Wear complete eye protection and clothing protection. -
Page 13: Conditions Of Warranty
WARRANTY: WINPLUS NORTH AMERICA LIMITED WARRANTY Winplus North America warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, Winplus North America’s liability shall be limited to that set forth in this limited express warranty. -
Page 14: Owner's Responsibilities
WARRANTY CONT.: OWNER’S RESPONSIBILITIES: Winplus North America will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS HOURS, MONDAY THROUGH FRIDAY 9:00 AM TO 5:00 PM (Pacific Standard Time). - Page 15 FCC Compliance Statement: CAR JUMP STARTER & PORTABLE POWER BANK Model: AC56388 Responsible Party: Winplus North America Inc. 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 866-294-9244 This device complies with Part 15 of the FCC Rules. Operation is subject to the...
-
Page 16: Troubleshooting
Do not use this device to jump start batteries outside of these four types of vehicles; doing so may cause a fire or other serious injuries. Refer to the user manual for additional safety information.
