FrSky TANDEM X20R Instruction Manual

Instruction Manual for FrSky TANDEM X20R & X20RS
Introduction
TD-ISRM PRO RF PERFORMANCE
With solid performance based on the dual-band 900M/2.4G RF signal link with multiple operating combinations
of RF modes, the TANDEM X20R & X20RS versions are equipped with the TD-ISRM PRO built-in RF module
which is capable of supporting multiple protocols (like TW, TD, etc), with same RF capability as X20 Pro editions.
The TD-ISRM Pro RF module has the dual 2.4G TW RF mode and supports simultaneous activation of working
under TW and ACCESS R9 modes with the same module. In this configuration, the TW receiver and ACCESS
R9 receiver can be connected via the SBUS IN/OUT ports to achieve redundant backup. This RF signal connec-
tion solution makes use of three different RF links at the same time in RC applications. This further enhances the
RF signal's reliability, particularly in long-distance RC operations scenarios.
DIFFERENCES IN APPEARANCE & FUNCTIONAL INPUTS

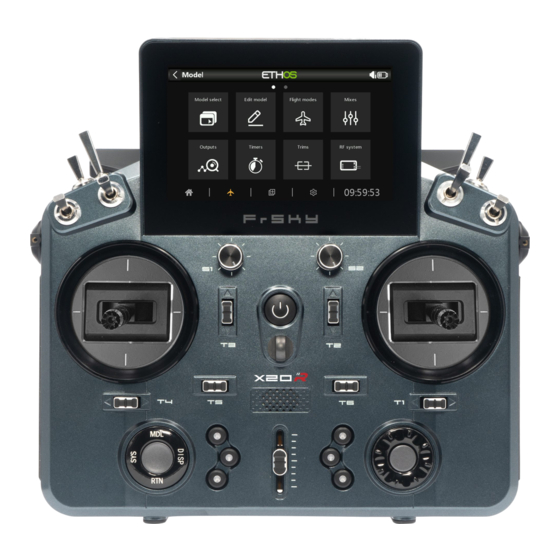

The X20R and X20RS have changed from the original X20 design in appearance. The bottom hand grip adopts
the overall design of the PRO version, eliminating the need for an additional grip cover, and allowing the bottom
part to be fully grasped by the palm for a more comfortable and relaxed grip. Additionally, the Lite-type external
module slot has been adjusted to provide more fitting installation space for external modules of different shapes,
making it more convenient.
R and RS versions add 2 extra trims, allowing for more precise tunings during the operations. The slider levers
on both sides of the transmitter support adjusting the positioning of the center, catering to different users' habits
and preferences. The primary input components, including trim caps, center-slider caps, and knobs are all made
from metal, offering rugged quality and enhanced durability for outdoor use.
UPGRADED ROBUST ANTENNA HANDLE & EXTERNAL LORA ANTENNA CONNECTORS
The newly upgraded antenna handle incorporates the good capability of impact resistance facing the tough
conditions of outdoor fields. The reinforced and thickened antenna casing is better suited for comfort gripping but
also does not compromise the antenna's performance. On the contrary, the redesigned antenna can transmit
signal data more effectively, providing pilots with a more reliable flying control experience.
The X20R & X20RS are also equipped with 2 external antenna connectors, which can be mounted with additional
2.4G and 900M antennas for enhancing the RF capabilities working under the LoRa modes, to achieve enhanced
long-range control.
BUILT-IN MASS STORAGE & TEXT TO SPEECH FUNCTION (X20RS)
To save the user the trouble of deciding the storage capacity, both R and RS versions have a built-in 8GB flash
storage that offers big storage to meet all your radio's storage needs with high data transmission speed.
Thanks to the upgraded storage feature, the TTS (Text-to-Speech) function of X20 RS versions can quickly and
conveniently convert typed input English words into spoken speech. This enables the ETHOS system to more
flexibly match the triggered operational status using generated speech audio when specific functions are
activated and to alert clear outdoors with the digital power amplifier module.
DUAL-SIDE HAPTIC GIMBAL FEEDBACK (X20RS)
The gimbal vibration feedback function can be easily enabled or disabled by setting a switch. The dual-sided
Gimbal's vibration feedback can operate independently, allowing the configuration to match distinct feedback
preferences tailored to various application scenarios for RC enthusiasts.
Easy Travel-adjustable MC20R Gimbals (with any desired degree between 45° to 60°) (X20RS)
The MC20R Gimbals also has an 8° rotatable panel and can be adjusted to a 45° travel position. What's even
better is that the angle is not limited to just 45° and 60°, the MC20R Gimbal allows for adjustment of any travel
position between 45° and 60°. To enhance convenience for pilots in outdoor applications, the angle travel position
can be directly adjusted using a 1.5mm hexagon screwdriver through the adjustment hole on the Gimbal Panel,
eliminating the need to disassemble the radio casing.
