FrSky 2.4GHz ACCST Taranis X9D Manual
Introduction
Thank you for purchasing the FrSky 2.4GHz ACCST TARANIS X9D digital telemetry radio system. In order for
you to make the best use of your system and to fly safely, please read this manual carefully. If you have any
difficulties while using your system,please consult the manual , your hobby dealer, or FrSky technical support.
Due to unforeseen changes in production procedures, the information contained in this manual is subject to
change without notice.
Meanings of Special Markings
Pay special attention to safety where indicated by the following marks:
DANGER- Procedures which may lead to dangerous conditions and cause death/serious injury if not carried out
properly.
WARNING- Procedures which may lead to a dangerous condition or cause death or serious injury to the user if
not carried out properly or procedures where the probability of superficial injury or physical damage is high.
CAUTION- Procedures where the possibility of serious injury to the user is small, but there is a danger of injury,
or physical damage, if not carried out properly.
= Mandatory = Prohibited
Warning: Always keep electrical components away from small children.
Hook
S1
SB
SF
SE
SA
SA SB S1 S2 SC SD
Slider
Stick
(J1)
(J2)
MENU D I G I T A L T E L E M E T R Y R A D I O S Y S T E M
- - -
7.5v 4.76v 10 18
MENU
FrSky-RC
PAGE
THS
00:00:00
SA SE
PAGE SB SF
EXIT SA
SC SG
SD SH 00:00:00
TX
EXIT OPEN ENT
power switch 2.4GHz
LCD Display
Trainer Port
USB Port
Power Indicator LED
Charge Jack
Battery Cover
FrSky Electronic Co., Ltd
Website:www.frsky-rc.com E-mail:frsky@frsky-rc.com
www.frsky-rc.com

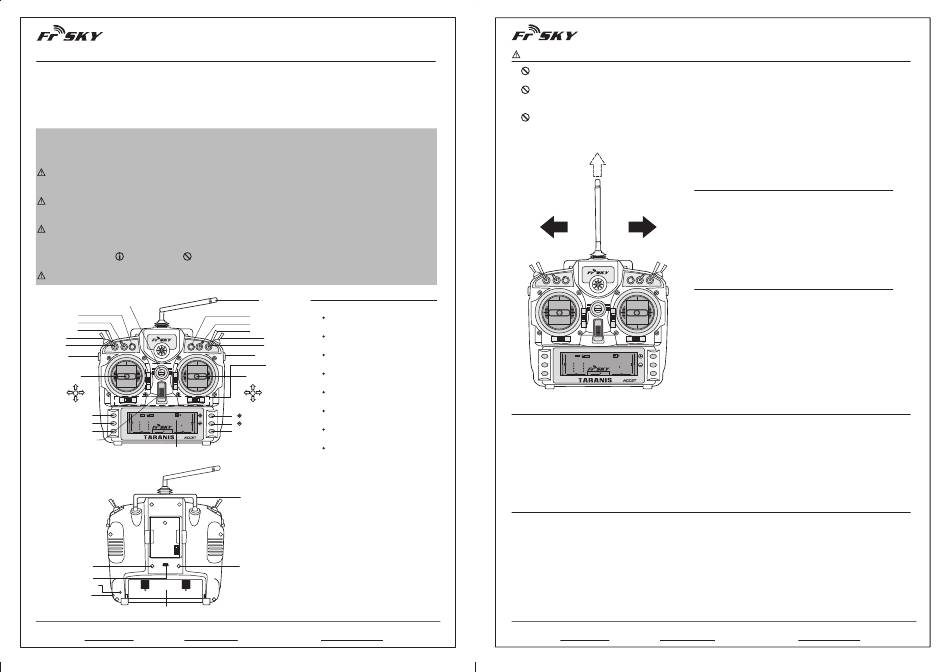

Overview
Antenna
(Switch Default Settings)
S2 SA: 3 positions, Alternate;
SC
Short Lever
SH
SB: 3 positions, Alternate;
SG
Long Lever
SD
SC: 3 positions, Alternate;
Slider
Long Lever
Digital Trim
SD: 3 positions, Alternate;
Stick
Short Lever
(J3)
SE: 3 positions, Alternate;
(J4)
Short Lever
SF: 2 positions, Alternate;
Long Lever
SG: 3 positions;
ENT
Alternate; Short lever
SH: 2 positions, Momentary;
Long Lever
You can choose the Switch and the
ON/OFF position in the menu of
Mixer.
Carrying Bar
Earphone Port use earphones with volume control
when applied.
Technical Support: sales4tech@gmail.com
Cautions on handling antenna
Do not touch the antenna during operation.There is the danger of erroneous operation causing a crash.
Do not carry the transmitter by the antenna.There is the danger that the antenna wire will break and
operation will become impossible.
Do not pull the antenna forcefully.There is the danger that the antenna wire will break and operation will
become impossible.
Weak Signal
Strong Signal Strong Signal
SA SB S1 S2 SC SD
D I G I T A L T E L E M E T R Y R A D I O S Y S T E M
- - -
7.5v 4.76v 10 18
MENU
FrSky-RC
THS
00:00:00
SA SE
PAGE
SB SF
SA
SC SG
00:00:00
SD SH
TX
EXIT OPEN ENT
2.4GHz
Specifications

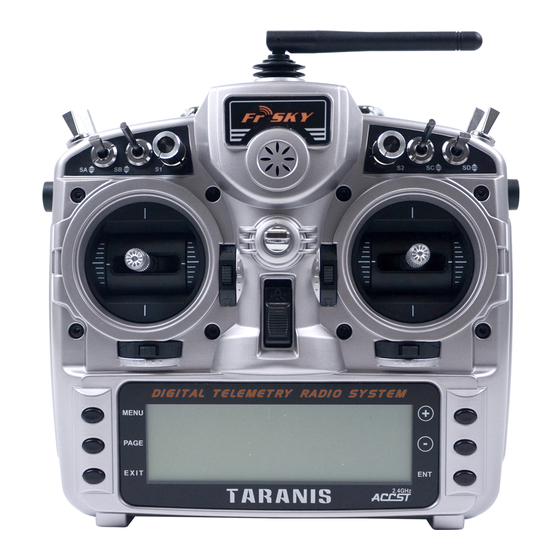

Model Name: Taranis X9D
Number of Channels: Up to 16 channels
Operating Voltage Range:6~15V (2S, 3S Lipos are acceptable)
Operating Current: 260mA maximum (both RF module and backlit are on)
Operating Temperature: -10~60℃
Backlight LCD Screen: 212*64, monochrome
Model Memories: 60 (extendible by SD card)
Compatibility: FrSky X series, D series and V8-II series receivers
Features
● Quad Ball Bearing Gimbals
Receiver Match
●
● Audio Speech Outputs (values, alarms, settings, etc.)
● Antenna Status Detection and Alters
FrSky Electronic Co., Ltd
Website:www.frsky-rc.com E-mail: frsky@frsky-rc.com
www.frsky-rc.com
Rotating Antenna
The antenna can be rotated 180 degrees and angled 90
degrees. Forcing the antenna further than this can cause
damage to the antenna. The antenna is not removable.
Angle adjustment of the antenna
The antenna rotation and angle can be adjusted. The
antenna features week radio signal in the forward
direction and strong radio signal directions. Adjust the
antenna angle to match your flying style.
● Real-time Flight Data Logging
Reception Signal Strength Alerts
●
● Super Low Latency
● Smart Port Supported
Technical Support: sales4tech@gmail.com
