Introduction
DUAL 2.4G RADIO SYSTEM
The TWIN X14/X14S stands out as a robust radio system, boasting the capability of utilizing dual 2.4G frequen-
cies simultaneously on the same receiver in TW mode. Different from standard active-standby redundancy
solutions, the TW active-active protocol ensures both 2.4G frequency bands are actively engaged on the TWIN
series RF module and receiver simultaneously.
Equipped with two internal 2.4G RF antennas, the TWIN X14/X14S offers expansive multi-directional coverage
for transmitting signals. Leveraging these attributes alongside the exterior antenna mounting frame, the Twin
system provides less latency, higher reliability, and faster data rates with confidence. In addition to the TW mode,
TWIN X14/X14S also supports ACCST D16 and ACCESS modes, this means users can benefit from a wide
range of compatible receiver options to choose from and bind to when building the RC model.
ERGONOMIC, COMPACT & FLEXIBLE DESIGN
In alignment with the form factor concept of TANDEM X18, the TWIN X14/X14S has been crafted to enhance its
portability, reduce weight, and streamline its design. The ergonomic layout ensures that the momentary buttons,
shoulder sliders, and switches on the top are effortlessly accessible.
The TWIN X14/X14S offers 4 customizable buttons, thoughtfully placed at the radio panel center for real-time and
frequent operations. Take, for instance, when flying an RC glider, to configure these buttons as additional Trim
functions by ETHOS, these buttons become invaluable for on-the-fly adjustments then, allowing pilots to adapt
the angle of the flaps/surface according to the real-time air environment.
BUILT-IN FLASH STORAGE AND RECHARGING SYSTEM | STAND HOLDER ATTACHABLE STRUCTURE
DESIGN
Eliminating the need for users to fret over storage decisions, the TWIN X14/X14S boasts built-in 128MB/512MB
flash storage, providing ample space for your file storage requirements. Its practicality extends to a battery bay
accommodating a 2600mAh Li Battery, easily replaceable and featuring a Type-C port for recharging.
Further enhancing its user-friendly design, the TWIN X14/X14S introduces an attachable and foldable structure
on the rear shell. This design allows for the easy installation of an additional stand holder accessory, transforming
the TWIN X14/X14S not only can be conveniently carried but it can also to be positioned anywhere, offering
operational flexibility without having to hold the radio in your hands.

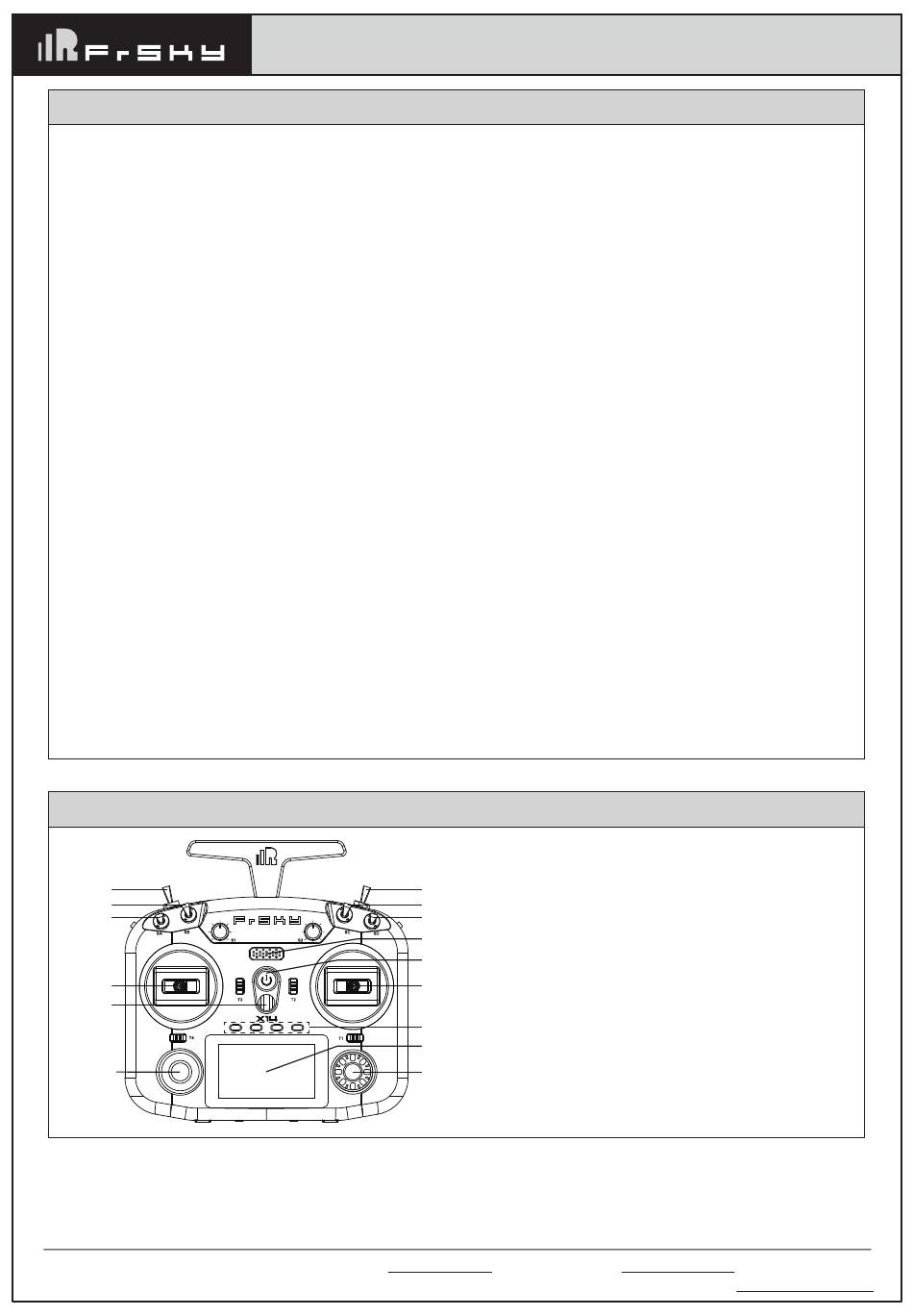

Overview
SE
SB
SA
Stick
Hook
SYS,
MDL,
DISP,
RTN
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky TWIN X14/X14S
SF
SC
SD
Speaker
Power Switch
Stick
Custom Button
Display Screen
Encoder
www.frsky-rc.com
● SA: 3 positions; Short Lever
● SB: 3 positions; Long Lever
● SC: 3 positions; Long Lever
● SD: 3 positions; Short Lever
● SE: Momentary, Short Lever
● SF: 2 positions; Short Lever
● T1-T4: Stick Trims
You can choose the Switch and define
its position in the HARDWARE menu.
Contact us: frsky@frsky-rc.com
