FrSky TANDEM X18SE Manual

FrSky TANDEM X18 & X18S & X18SE Manual

Introduction

When you are investing in a new radio and considering what requirements are important to you, if weight and
comfort are primary considerations, followed by the benefit of the excellent system features of ETHOS, then the
FrSky Tandem X18(S) radio is an obvious appropriate choice.
The Tandem X18(S) dual-band telemetry radio benefits from an enhanced ergonomic design with rounded and
more comfortable hand grips, along with an improved case design to make the radio fully stable when standing. The
radio includes easy-to-reach sliders and switches, 4 standard stick trims with additional 2 extra trims added to
provide more flexibility with flight attitude adjustments while operating the radio. The X18(S) includes further
enhancements with integrated flash storage which improves and simplifies storage operation and use, and the
interior of the radio has been designed with space and weight in mind, while still keeping all ETHOS setting and
control features for the pilot to enjoy.
Internal 900MHz/2.4GHz Dual-Band & External Module Bay
The TD dual-band RF system combines both the features and advantages of FrSky 900MHz and 2.4GHz RF
together in one system. The TD features real simultaneous dual-band longrange control with telemetry that
achieves reliable end-to-end 4ms latency while maintaining a robust and high-quality signal link. The entire range of
TD, ACCESS & ACCST D16 receivers are supported. The built-in TANDEM RF System supports ACCESS and
ACCST D16 protocols.
In addition, the Tandem X18(S) includes a rear Lite version module bay to offer more options to connect external
devices. FrSky welcomes working compatibility with the 3rd party products with their own developed technology
following FrSky verified 3rd party compatibility-testing program.

ETHOS Operating System

ETHOS is a thoroughly new operating system, designed from the ground up by RC experts, providing users a
powerful, intuitive, and flexible experience that can maximize the fun of RC Hobby!

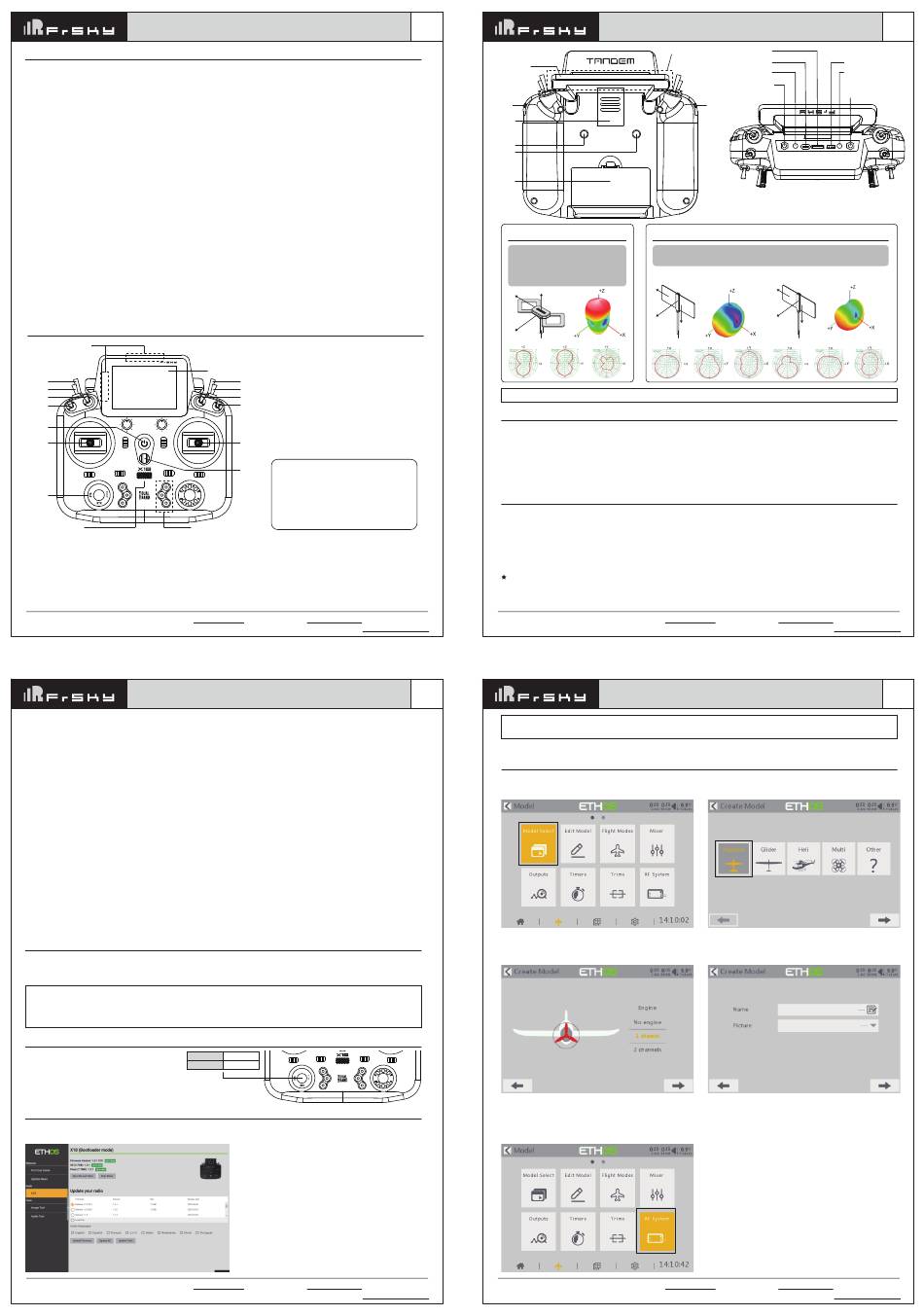

Layout
2.4G Internal Antenna
SF
SE
SB
SA
Power
Switch
S1 S2
Stick
T3 T2
T5 T6
T4
SYS,
MDL
MDL,
DISP,
RTN
Speaker Custom button
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
FrSky TANDEM X18 & X18S & X18SE Manual
● Haptic Vibration Alerts and Voice Speech Outputs
● Supports Recharge System for 2S Li-ion Battery (USB Type-C Interface)
● High-speed PARA Wireless Training System
● Supports motion sensing control (X18S)
- Integrated with 6-axis sensor unit
● All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing (X18S)
TD-ISRM RF Module
● Built-in TD 900M/2.4G Dual-Band Internal RF Module
Supports Multiple Working Modes
- 2.4G ACCST D16 Mode (Compatible with ACCST Receivers with D16 V2 or later FW)
- 2.4GACCESS Mode (Compatible with ACCESS Receivers)*
- 900M ACCESS Mode (Compatible with ACCESS R9 868/915MHz Receivers)*
(*Capable of simultaneous working under ACCESS mode)
- 2.4G & 900M TD Mode (Compatible with TD Receivers)
● Long-range control and super-low latency with telemetry
(*Up to 50 to 100KM range and down to 4ms end-to-end latency)
ETHOS System
● Clear and Intuitive UI Design
● Supports Dual Operation Modes of Radio Display (Touch and Non-Touch)
● Supports Multi-Language Switching
● Hardware/Software Version and Factory Version Detection
● Supports running LUA Scripts
2S Li-battery balance charging via USB-C:
The Green LED indicator states:
Led on: in Charging/Led off: end of charge/flash: charge fault
Battery compartment size: 87*41*19.5mm (L*W*H)
Note: 1. Charge the battery with the USB adapter (Voltage: 5V+0.2V Current:＞2.0A) when you use the
USB charging function.
2. The lower the initial charging voltage, the better the charging effect is when the voltage
difference cells exceed 50 mV between the two.

Navigation Controls

The left navigation control does RTN, SYS,
Page Down
MDL, DISP, and Page UP/Down. The right
Page Up
navigation control does scroll and enter.
Both navigation controls and touch screen
can be used to control the system.

ETHOS Suite

With ETHOS Suite, you can update the radio bootloader, firmware, SD card, flash, and also convert image
format and audio format. Find the latest infomation and download the ETHOS Suite at ethos.frsky-rc.com/.
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Switch
● SA: 3 positions; Short Lever
● SB: 3 positions; Long Lever
Display Screen
● SC: 3 positions; Long Lever
SH
● SD: 3 positions; Short Lever
SG
● SE: 3 positions; Short Lever
SC
● SF: 2 positions; Long Lever
SD
● SG: 3 positions; Short Lever
● SH: 2 positions; Momentary, Long lever
You can choose the Switch and define its
Stick
position in the HARDWARE menu.
1. USB port is for upgrading, reading/
Hook
writing Micro SD cards and internal
T1
memory of radio contents and charging.
(Micro SD card is not provided with
shipment.)
2. Smart Port is for firmware upgrade for
all FrSky S.Port devices.
Contact us: frsky@frsky-rc.com
S1 S2
T3 T2
Short Click
T5 T6
T4
Long Press
MDL
Contact us: frsky@frsky-rc.com
Version
1.0
Carrying Bar
Slider
Module
Bay
SWJ
SWI
Battery
Cover
Infinity 24 Antenna
Recommended 2.4GHz optional
high-gain antenna for achieving
higher performance and further
range.
+X
+Z
+Y
SMA Connector
Note: Please keep the aircraft in the optimal radiation range of the directional antenna at all times.

Specifications

● Dimension: 200*192*95mm (L*W*H)
● Weight: 687g (Battery Excl.) / 820g (Battery Incl.)
● Operating System: ETHOS
● Internal RF Module: TANDEM
● Number of Channels: Up to 24 channels
● Operating Voltage Range: 6.5~8.4V (2S Li-battery)
● Operating Temperature: -10°C~60°C (14°F~140°F)

Features

Hardware

● Enhanced ergonomic designed case with comfortable rounded hand grips
● 4 Standard Trims with additional 2 extra trims
● Integrate flash storage but also keep the internal TF card slot
● Easy-to-reach top switches and sliders
● With a flat base to improve stability when standing the radio
● Color Touch-Screen Displays
Upgraded matte screen with improved visibility under sunlight (X18SE)
● High-Precision Hall-Sensor Gimbals with a Metal Panel
● 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
● Lite Type External Module Bay
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Version
1.0
Note: To use the ETHOS Suite application with a FrSky radio, please always keep the radio bootloader
with the latest version.
ETHOS Operating System

Create the model

Step 1: First go to System Settings, then click Model Select to select the model type.
Step 2: Configure the model channel and create the model name.
T1

Model Setup Procedure-Internal Module

Step 1:
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
FrSky TANDEM X18 & X18S & X18SE Manual
900M Internal Micro SD Card Port
Antenna
Type-C USB Port
Training port
ANT1
Ext. 2.4G Antenna
Slider
Zipp9 (868MHz) / Zipp9 (915MHz) Antenna
Recommended 900MHz optional high-gain antenna for achieving
higher performance and further range.
+X +X
868MHz
+Y +Y
+Z +Z
SMA Connector SMA Connector
● Operating Current: 240mA@7.4V (typ.)
● Charging Current: ≤1A ±200mA
● USB Adaptor Voltage: 5V+0.2V
● USB Adaptor Current: >2.0A
● Backlit touchable LCD resolution: 480*320
● Compatibility: ACCST D16 & ACCESS & TD receivers
● Internal NAND FLASH: 128MB (X18) / 512MB (X18S)
www.frsky-rc.com Contact us: frsky@frsky-rc.com
FrSky TANDEM X18 & X18S & X18SE Manual
Touch the screen or use the navigation keys to enter the
RF system menu.
www.frsky-rc.com Contact us: frsky@frsky-rc.com
Version
1.0
Smart Port
Earphone Port
ANT2
Ext. 900M Antenna
915MHz
